TA Instruments – Thermogravimetric Analyzers
Thermogravimetric analyzers (TGA) measure weight change (loss or gain) and the rate of weight change as a function of temperature, time, and atmosphere. Thermogravimetric data is critical to setting proper temperature limits for Differential Scanning Calorimetry method development. Other common usages include thermal and oxidative stability of materials, moisture and volatile contents, composition of multi-component materials, decomposition kinetics and estimated lifetime of a product, and effects of reactive or corrosive atmospheres.
Available in :
TA Instruments invites you to experience the worldโs finest line of Thermogravimetric Analyzers: The Discovery TGA 55, TGA 550, and TGA 5500. Discover the advanced engineering and attention to detail that provides enhancements in every aspect of TGA technology and a new level of user experience. The vertical balance design, integrated with a horizontal gas purge, delivers industry-leading sensitivity and resolution, and optimal sample-atmosphere interaction. Advanced features such as Hi-Resโข and MTGAโข provide performance and flexibility for deeper material insights.
Key Features
- Fastest cooling for improved sample throughput.
- Low volume, vacuum tight, and quartz lined with heated outlet option for best best-evolvedresults
Technical Specification
| TGA Series | |||
| TGA 5500 | TGA 550 | TGA 55 | |
| Temperature Range | Ambient to 1200ยฐC | Ambient to 1000ยฐC | Ambient to 1000ยฐC |
| Temperature Accuracy | ยฑ1ยฐC | ยฑ1ยฐC | ยฑ1ยฐC |
| Heating Rate (Linear) | 0.1 to 500ยฐC/min | 0.1 to 100ยฐC/min | 0.1 to 100ยฐC/min |
| Sample Weight Capacity | 1000 m | 1000 m | 1000 m |
| Weight Baseline Drift (Ambient to 1000 หC) | <10 ยตg | <25 ยตg | <25 ยตg |
| Vacuum | 50 ยตTorr | 50 ยตTorr (EGA furnace) | 50 ยตTorr (EGA furnace) |
| HP TGA Series | ||
| Discovery HP-TGA | DynTHERM TGA | |
| Temperature Range | RT โ 1100 ยฐC | RT โ 1700 ยฐC |
| Pressure Range | Vacuum โ 80 bar | Vacuum โ 50 bar (T-dependent) |
| Max. Heating / Cooling rate | 200 K/min | LP: 100 K/min HP: 20 K/min |
| Sample mass / Weighing range | 500 mg / 500 mg | 25 g / 20 g |
| Sample crucible volume | 90 ยตl | 635 ยตl |
| Max. sample dimensions (placed directly without crucible) | n/a | H = 25 mm W = 20 mm |
Available Models
The TGA 5500 is designed for the researcher that requires the highest level of performance and features in one package. Built to maximize temperature control and minimize drift, the TGA 5500 has less drift than any competitive TGA โ even after they use post-test data manipulation! The TA patented IR furnace delivers the fastest heating and cooling rates available. The all new autosampler makes high prostandardsy standard.
Key Features
- Ambient to 1200 ยฐC.
- Linear-controlled heating rates of 0.1 to 500 ยฐC/min.
- Ballistic heating rates >1500 ยฐC/min for the highest efficiency available.
- Fastest cooling for improved sample throughput.
- Low volume, vacuum tight, and quartz lined with heated outlet option for best best-evolvedresults
The TGA 550 will not only outperform competitive top tier systems, but will also give users the flexibility to add advanced features like Hi-Res TGA, MTGA, DTA signal, and our new 25-position autosampler. The performance, flexibility, and ease-of-use, make this an excellent TGA for research and multi-user laboratories where a wide variety of TGA experiments are conducted, and where future expansion of analytical work is anticipated.
Key Features
- Ambient to 1000 ยฐC.
- Heating rates of 0.1 to 50 ยฐC/min linear controlled.
- Low volume, vacuum tight, and quartz lined for good evolved gas results.
- Quartz liner makes furnace easy to clean.
The TGA 55 is specifically designed for those that want rugged, reliable, and cost-effective TGA, and are not willing to accept poor data. Utilizing TAโs proprietary Tru-Massโข Balance as the core of the system, the TGA 55 will outperform competitive research-grade models. Its sensitivity, accuracy and ease-of-use make this TGA an ideal instrument for basic research, teaching or industrial labs that need quality results.
Key Features
- Ultra-low drift balance design ensures accurate detection of even the smallest weight changes
- High capacity (1 g) Tru-Mass balance with the auto-ranging capability to ensure the best sensitivity no matter the size of the sample
- Free-hanging sample eliminates the heat sink prevalent in top-loading designs, for the most efficient heat transfer and gas flow around the sample
- Thermally isolated balance with low drift and high sensitivity to deliver the most accurate real-time data
TA Instruments invites you to experience three new high pressure thermogravimetric (HP-TGA) instruments, the Discovery HP-TGA 75, HP-TGA 750, and HP-TGA 7500. From the world leader in Magnetic Suspension Balance (MSB) technology for over 20 years comes an ingeniously designed, user-friendly top-loading microbalance with unprecedented performance. In addition, the Discovery HP-TGAโs are the first available in a convenient benchtop design and feature on-board gas & steam dosing and blending systems, temperature control to 1100ยฐC, One-Touch-Awayโข functionality, and TAโs powerful TRIOS software. Getting great high pressure data has never been so easy!
Key Features
- Patented* top-loading magnetic levitation balance enables sealed environment for thermogravimetric testing in reactive atmospheres under high pressure (up to 80 bar) and high temperatures (up to 1100ยฐC)
- Unrivaled 0.1 ฮผg balance resolution provides the most accurate measurements of small samples or materials with rapid reaction kinetics
- Top-loading balance design ensures superior weight stability at high temperature and pressure, and provides convenient access to sample for easy loading/unloading
- Integrated gas & steam dosing & pressure control eliminates need for a separate system and enables a compact footprint
- Highly accurate balance temperature control for optimized baseline stability
- Non-porous isolation material in contact with the reaction gas within the furnace eliminates potential retention of gases (โmemoryโ effect) and enables rapid attainment of vacuum
- Curie-point calibration eliminates the effects of the reaction gas type and pressure on the temperature measurement
- Compact design puts high pressure TGA on the benchtop, minimizing valuable lab space requirements and enabling installation in a fume hood to easily manage ventilation when working with toxic gases
- High heating and cooling rates (~200 K/min**), even under high pressure, reduces potential for unwanted side reactions and improves sample throughput
- Small internal volume allows for rapid gas changes and quick pressurization, low gas consumption, and safe operational conditions due to the small quantity of compressed gas
The DynTHERM TGA is an advanced gravimetric instrument featuring a patented* Magnetic Suspension Balance that enables measurement of weight changes of materials under high pressure, in the presence of a variety of gases, vapors, or steam, from room temperature to 1700ยฐC. A flexible selection of gas & vapor dosing and blending devices provide accurate control of the composition and the pressure of the reaction atmosphere. Designed and built with over 20 years of experience and field proven by hundreds of customers, the Rubotherm Series DynTHERM TGA offers the widest available temperature and pressure range of all high pressure gravimetric analyzers and represents the industry standard for application relevant analysis.
Key Features
- Non-contact sample weighing enables hermetic separation between sample cell and balance, eliminating risk of balance damage from reaction gases, pressure or temperature inside the sample cell
- Metallically sealed sample reactor cell enables measurements in corrosive, explosive, or toxic reaction gases, up to high temperatures, and from vacuum to high pressure
- Unique automatic sample decoupling enables taring of balance during experiments and provides unmatched long-term baseline stability for the most accurate measurements, without manual balance calibrations required by competitive devices
- Entire sample cell wetted by the reaction gases can be heated, preventing condensation of reaction gas vapors such as water vapor, CO2, ammonia etc., even at high pressures or humidity
- Sophisticated gas and vapor dosing, blending, and pressure controlling systems for precise reaction atmosphere control with integrated gas sampling for evolved gas analysis
- The large dynamic weighing range and sample volume allows measurements with representative, large and/or heavy samples
Images of Thermogravimetric Analyzers Series
TGA 5500
TGA 55
TGA 550

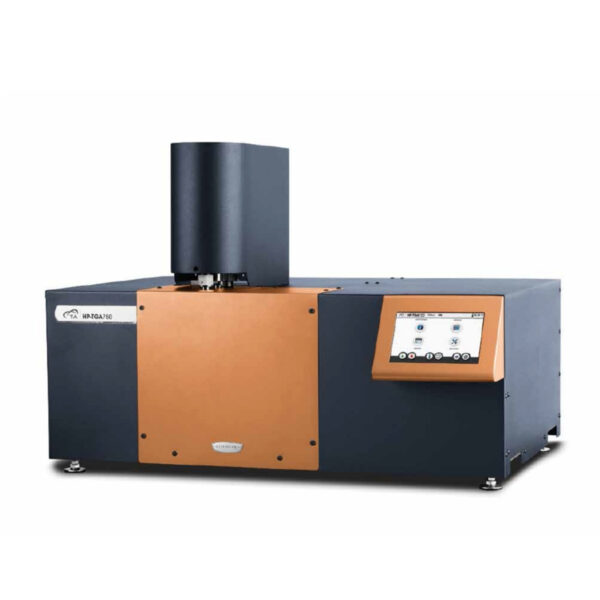

High Pressure TGA
High Pressure TGA

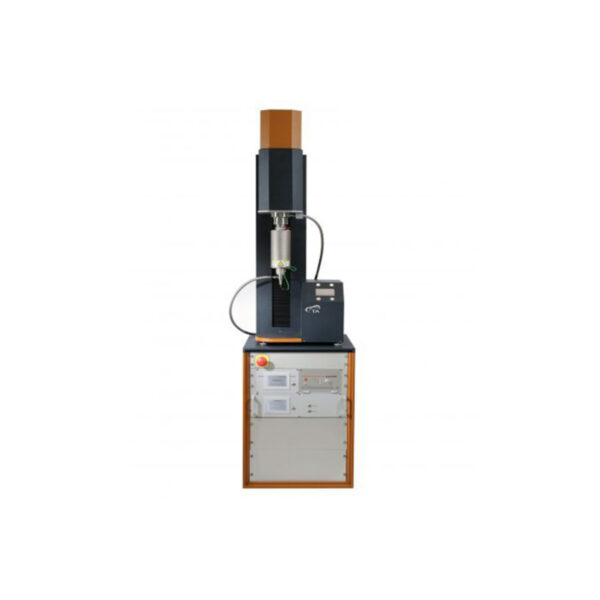

DynTHERM TGA
