TA Instruments – Heating Microscope
Heating microscopy is a non-contact technique that, based upon an advanced image analysis of a specimen subjected to a thermal treatment reproducing industrial firing conditions, identifies several characteristic shapes and related temperatures key to the optimization of manufacturing processes in ceramics, metals, and alloys.
The characteristic temperatures the system can automatically identify include the beginning of sintering, softening, sphere, half-sphere, and melting/fusion. Morphometrix, the latest TA Instruments image analysis software, can also determine the following: flattening curve, contact angle curve, sample area variation curve, ratio curve between width and height, bloating effects, combustion, theoretical glass viscosity (V.F.T. equation) and surface tension (glasses) using the Young-Laplace equation.
Technical Specification
| HM 867 | ODP 868 | |
| Design | Heating Microscope | Scalable Optical Dilatometry Platform: Patented Dual Beam Dilatometer, Heating Microscope, Patented Absolute Fleximeter, Relative Fleximeter |
| Sample Length | 1 to 6 mm | 0.5 to 85 mm |
| Sample Height | 0.5 to 19 mm | 0.5 to 19 mm |
| Displacement System | HD camera | HD camera in Heating Microscope Dual optical system in Dilatometry Triple optical system in Fleximetry |
| Dimensional Change Resolution | 5 ppm | 3 ppm in Heating Microscope 250 nm in Dilatometry 500 µm in Fleximetry |
| Measuring Range | 19 mm | 19 mm |
Available Models

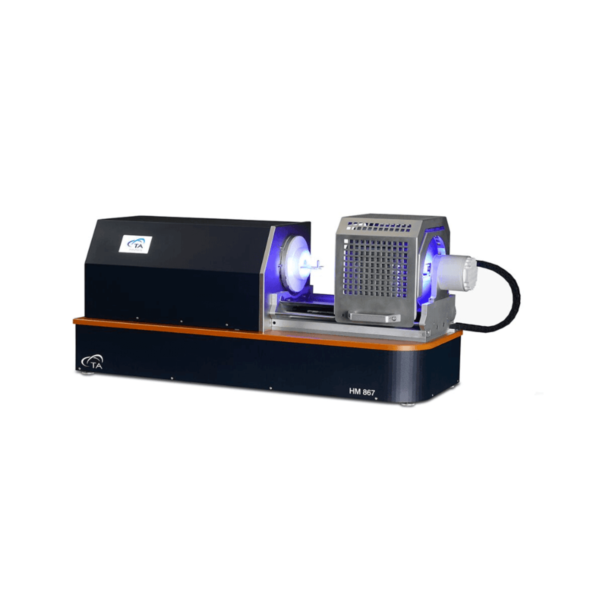

The Optical Dilatometry Platform HM 867 is a stand-alone Heating Microscope that is a standard instrument for process optimization in the ceramics industry. A single camera on the optical bench frames the entire sample and records the sequence of the characteristic shape changes and the temperature throughout the experiment.
Key Features
- High-temperature capability: The HM 867 can reach temperatures up to 800°C, which allows for the observation of sample behavior at high temperatures.
- In-situ observation: The microscope allows for the observation of the sample during heating, providing real-time information on changes in the sample’s physical and chemical properties.
- High-resolution imaging: The microscope is equipped with high-quality optics and a high-resolution camera, which allows for the observation of fine sample details and changes.
- Automatic image analysis: The HM 867 comes with advanced software that enables automatic image analysis, making it easy to track changes in the sample properties over time.
- Multiple observation modes: The microscope can be used in different observation modes, including transmitted light, polarized light, and reflected light, providing a range of options for material characterization.

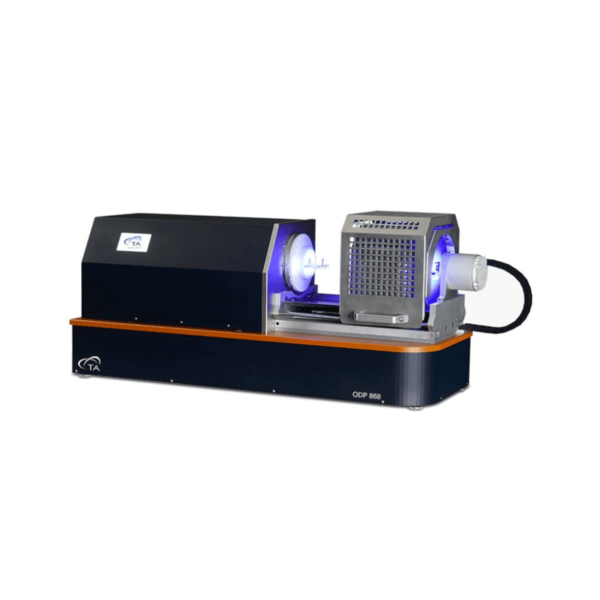

Result of over twenty years of R&D of optical instruments for the study of the thermo-mechanical behavior of materials, ODP 868 makes possible the analysis of samples beyond the limits of classical heating microscopy. Its versatility makes of ODP 868 the most innovative tool for production and R&D laboratories for the optimization of all the industrial processes that involve thermal cycles.
The Heating Microscope mode uses a 5Mpix high resolution camera to study the physical behavior of the materials during the industrial firing cycles.
Key Features
- Analyze bending caused by the difference in thermal expansion between coupled materials (i.e.: body and a glaze)
- Determine coupling temperature (formerly done with a Steger tensiometer);
measure bending caused by the difference in sintering behaviour between several coupling materials (i.e.: glaze, engobe and ceramic body) - Measure bending during cooling, caused by the volume variation of the glassy phases
- Study pyroplastic deformation and speed of deformation occurring in the material at high temperature due to its weight
The New ODP860 Series – Optical Dilatometry Platform
