Stilla Technologies – Digital PCR – Naica 3 Colors System

The sample is partitioned using a network of microchannels into a large array of individual droplets, also called a droplet crystal. Owing to the next-generation Crystal Digital PCR™ technology, the droplets partitioned are identical in size- ­yielding results you can trust. PCR then ­amplifies the ­fluorescent target in the droplets which can be read for ­absolute quantification the nucleic acids.

With a combination of powerful imaging, the flexibility to use up to 3 detection channels, and a proprietary software for analysis, Crystal Digital PCR™ is designed to offer an unmatched level of confidence in the digital PCR ­measurement.

Key Features

• Easy-to-use Solution: On-chip integrated workflow/ Minimal hands-on time
• Flexible Digital PCR: Up to 3-color target multiplexing/ Two chip formats: from 12 to 48 samples/run
• Fast Time-to-results: Prepare (15 min), Amplify (2 hrs), Read (10-20 min), Analyze (5 min)

Featured Products

Sapphire Chip

Up to 4 samples/run Up to 30,000 droplets/sample For high sensitivity applications

Opal Chip

Up to 16 samples/run Up to 20,000 droplets/sample Desired throughput flexibility

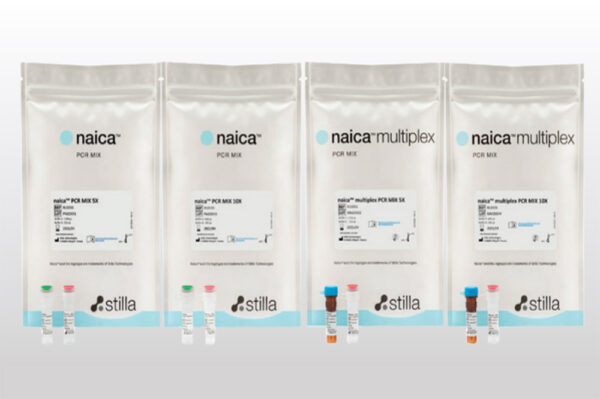

Naica® PCR MIX Reagents

Developed for enhanced performance for Crystal Digital PCR™ on the naica® system

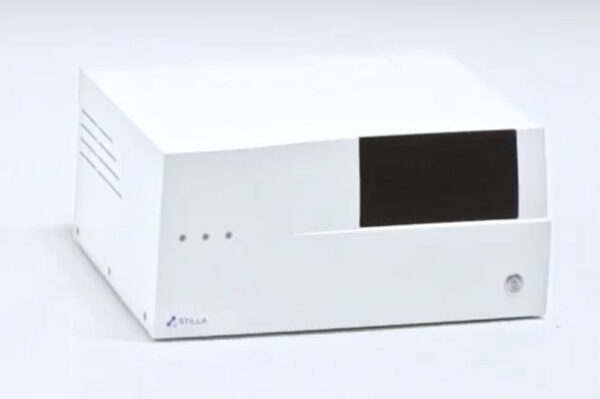

Geode

Thermocycler for partitioning and amplification

Prism3

Capacity: Up to 3 chips/run. Total scan time: 10min. Compatible ­fluorophores: FAM, Cy®3, VIC, HEX, Cy®5…

Crystal Miner Software

Intuitive software for visual inspection and analysis

The Entire Naica® System Workflow

Crystal Digital PCR™ is Stilla’s next-generation technology for absolute quantification of nucleic acids. Using cutting-edge microfluidic innovations, this technology integrates the digital PCR process in a single consumable.
