Minebea Intec – Dynamic Check Weighing
Minebea Intec terminals for vessel and silo scales accurately transmit and / or display the weight of your vessel or silo scale. All terminals feature SMART calibration, allowing you to accurately calibrate the scales in minutes without having to use weights or a flow meter. Each terminal is available with a wide variety of interface options for seamless connection to control systems.

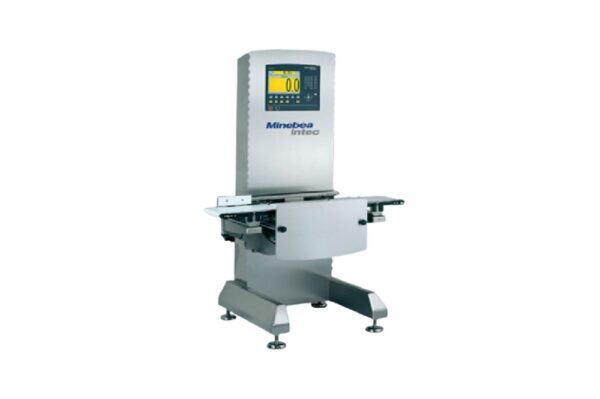

Minebea Intec’s dynamic checkweighers ensure precise weight control and quality assurance in various industries. They offer user-friendly interfaces, robust conveyor technology, and customizable configurations to meet diverse production needs.
Key Features
- High-resolution EMFC weighcell technology for maximum accuracy.
- Modular design allows integration of metal detectors.
- Automatic learning function simplifies configuration.
Available Models
Essentus® – Dynamic Check Weighing
Essentus is the ideal economic solution for numerous weighing applications, completeness checks and filling process optimisation. The dynamic checkweigher is extremely user-friendly, is selected according to needs and thus reduces procurement costs. Customers have the choice between Version L for product weights of up to 6 kg, version H for product weights of up to 60 kg, Essentus efficiency for pure classification and individual weight output as well as Essentus performance for extended checkweigher functions. Simply configure your Essentus checkweigher according to your requirements. Selectable weight unit: kg, g, lb,oz, t, pcs.
- Easy to operate
- Robust conveyor technology
- A wide range of belt lengths and widths
- Automatic learning function makes
- Configuration easier
- A wide variety of options
- Automatic speed regulation
Synus® – Dynamic Check Weighing
The modular designed checkweigher series Synus® allows for highprecision weight or integrity checking as well as the regulation of upstream filling systems. All model variants have a type approval which allows for use in legal metrology for Packaged Goods Regulation inspection in all European countries.
- EMFC high-resolution weighcell technology offering a high throughput combined with maximum accuracy
- Possibility for integrating a Vistus® metal detector, even after initial installation
- Adjustable conveyor height, allowing you to adapt the checkweigher to changing situations
- Weight: approx. 250 kg (depending on configuration)
- For process speeds of up to 1.5 m/s – MID approved for up to 3 m/s
EWK WS 30/60 kg – Dynamic Check Weighing
Premium stainless steel checkweigher that delivers maximum performance, particularly for use in production of foods, pharmaceuticals and toiletries. Special versions and software are available. They can optionally be combined with a metal detector.
- Weighing systems from 700 g to 60 kg
- Standard deviation from 0.01 g and up
- Max. throughput 100 items/min.
- 2 display and control units: 10.4″ TFT or 15″ TFT with touch screen
- Can be optionally combined with a metal detector
- USB Print option: Standard USB memory stick and standard web browsers for flexible data transfer without a network
- MID approved for up to 3 m/s
Flexus® – Dynamic Check Weighing
Flexus® is your solution for ensuring optimum product quality, regardless of whether you want to check the weight and/or integrity of your product or optimise your filling processes. The high-resolution EMFC load cell technology and a tailored design guarantee precise weighing results and a high throughput of up to 600 pieces per minute.
Flexus® is easy to integrate into your production environment. Changes to line configurations and quick transitions between products are handled quickly and easily. Specifically designed for the food industry, Flexus enables easy inspection, as well as simple and safe cleaning.
- Gross weighing range Up to 7 kg
- Hygienic design
- Easy and safe cleaning
- Standard throughput [pcs/min] Up to 450
- Belt width [mm] 50 – 300
- Operating temperature range : 0°C … +40°C (MID +5° C … +40°C)
- Protection class : IP54 (standard), IP65 (optional)
Checkweigher Essentus®
Checkweigher Flexus®
