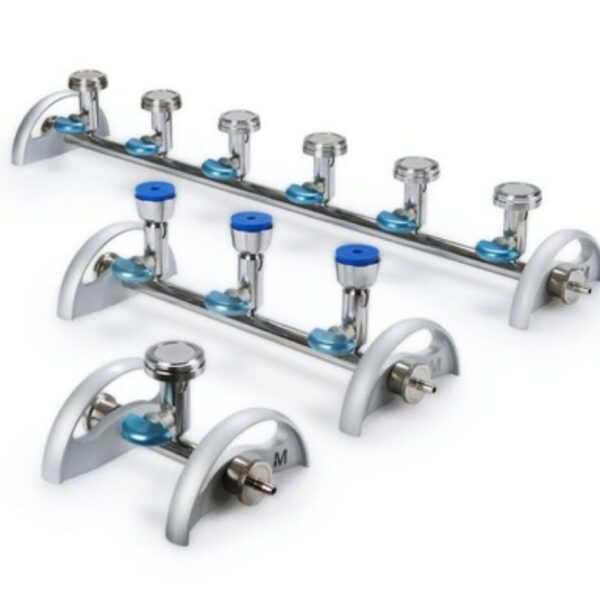

Merck – Quality Control – Manifold
A new filtration head for Microfil® disposable funnels and membranes improves ease-of-use, reduces maintenance and limits the risk of contamination. Filtration heads are available which accept N°8 stoppers. These fit our devices such as Monitor 55-Plus™ and EZ-Fit® Filtration Unit.
Optimize your workflow – Take control of your contamination risks.
Technical Specifications
| Materials of construction | Handles, valve (trigger and knob): Aluminum Connectors, pipe, valve body: 316L stainless steel Connectors, seals and valve seals: Ethylene propylene diene monomer (EPDM) Filtration o-ring: Silicone |
| Dimensions (W*L*H) in mm | 168 mm x 433 mm x 117 mm for a 3P manifold Catalog No. EZFITMIC03 |
|---|---|
| Weight | 2.9 kg kg for a 3-place manifold Cat. No. EZFITMIC03 |
| Tubing connection | Hose barb for 10mm tubing (NPS 3/8 or DN10) |
| Autoclaving conditions | 121°C for 30 min |
| EZ-Fit® Filter Holder Manifolds | |
| Materials | |
| Handles, valve (trigger and knob) | Aluminum |
| Connectors, pipe and valve body | 316L stainless steel |
| Connectors, seals and valve seals | EPDM |
| Filtration O-ring | Silicone |
| Dimensions, mm* | 168 W x 433 L x 117 H |
| Weight, kg* | 2.90E+00 |
| Tubing Connection | Hose barb for 10 mm tubing (NPS 3/8 or DN10) |
| Autoclaving Conditions | 121 °C for 30 min |
| *For a 3-place manifold (cat. no. EZFITMIC03) | |
Key Features
EZ-Fit™ Manifold
- Unique design for easy cleaning and decontamination
- Different filtration heads for both reusable and disposable filtration devices
- Quick-fit connectors for the vacuum tubing
- Low height for ease of use in laminar flow hoods
How to use the EZ-FIT® vacuum manifold for universal membrane filtration
Key Industries
- Food & Beverage
