Malvern Panalytical – Particle Characterization – Parsum Range

Parsum Probes use Spatial Filter Velocimetry to deliver in-situ, real-time size and velocity measurements for solid particles suspended in a pneumatic or gravity flow gas stream. Robust, dustproof and waterproof they measure particles in the size range 50-6000 µm with velocities from 0.01-50 m/s and are suitable for any industrial environment.

DKSH is the exclusive distributor in Cambodia, Laos, Malaysia, Myanmar, Philippines, Singapore, Thailand and Vietnam.

Technical Specifications

Available Models

Malvern Parsum IPP 70-S

Technical Specifications

Size measurement principle	Spatial filter velocimetry
Velocity measurement range	0.01 – 50 m/s
Velocity measurement principle	Spatial filter velocimetry
Light source wavelength	670 nm
Operating temperature	10°C -100°C
Operating Humidity	35% – 80%
Enclosure rating	IP65

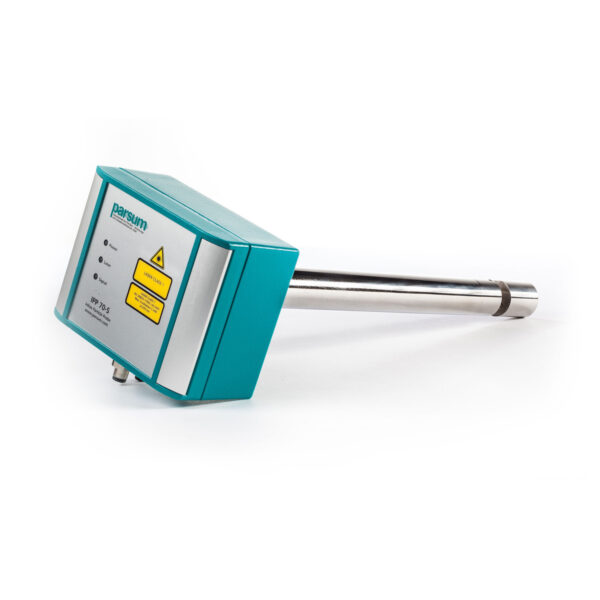

Parsum IPP 70-S – A standard instrument option use in chemical, food and pharmaceutical industries for endpoint detection

Compact, lightweight and easy to install, the Parsum IPP-70-S probe delivers in situ, real-time size and velocity measurements for solid particles up to 6000 µm in size. Dustproof and waterproof, and requiring no sampling or calibration, it provides continuous process monitoring at high and fluctuating solids loadings, even for abrasive, greasy or sticky particles.

Malvern Parsum IPP 80-P

Technical Specifications

Velocity measurement range	0.01 – 50 m/s
Concentration range	up to 30 volume %
Dimensions	101 × 85 × 65 mm
Probe length	282 mm
Probe diameter	25 mm
Operating temperature	up to 100°C
Temperature range	10 °C – 60 °C
Operating pressure	up to 15 bar
Operating humidity	35% – 80%
Enclosure rating	IP65
Explosion protection	ATEX certified for Zone 0/20

Parsum IPP 80-P – An intrinsically safe inline particle sizing probe for real-time measurement in pharmaceutical and food applications

Specifically designed for the pharmaceutical and food industries, the Parsum IPP80 is an intrinsically safe probe delivering real-time particle size and particle velocity measurements for solid particles in the range from 50µm up to 6mm in size. Its simple, dustproof and waterproof probe design enables direct monitoring of fluidized bed and high shear mixing and granulation processes.

Malvern Parsum IPP_70-SE

Technical Specifications

Temperature range	10 °C – 60 °C
Operating humidity	35% – 80%
Enclosure rating	IP65
Light source wavelength	670 nm
Laser safety	Class 1

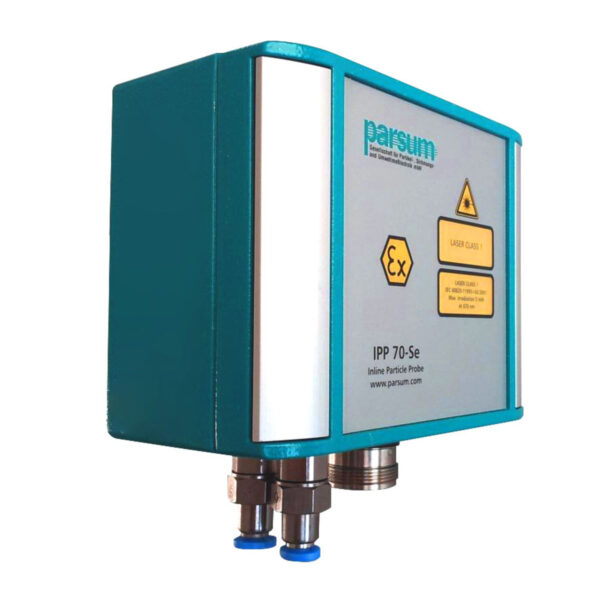

Parsum IPP 70-SE – Used in the chemical, food and pharmaceutical industries for endpoint detection, process control/optimization and real-time QC

Key Features

• Real-time measurement: Delivers continuous data for improved process control and efficiency.
• Patented technology: Uses spatial filter technique to accurately measure particle size and velocity.
• Wide range of probes: Various models for different applications, including pharmaceutical, food, and explosive environments.
• Flexible software integration: Includes ParsumView for data security (FDA 21CFR Part 11 compliance) and ExcelConnect for real-time data plotting.
• ATEX certified models: Safe for use in explosive atmospheres (Zone 0/20).
• Customizable solutions: Probes can be tailored in length for larger process spaces.

Parsum In-Line Particle Size Analyser Using Spatial Filter Velocimetry

Measure particle size and distribution with the Parsum probe IPP70 in a granulator during the process, using spatial filter velocimetry. Therefore the size distribution of the particles is tracked through the entire batch. Whether coating or agglomeration, grinding or spray-drying, the process remains under control, in real time!
