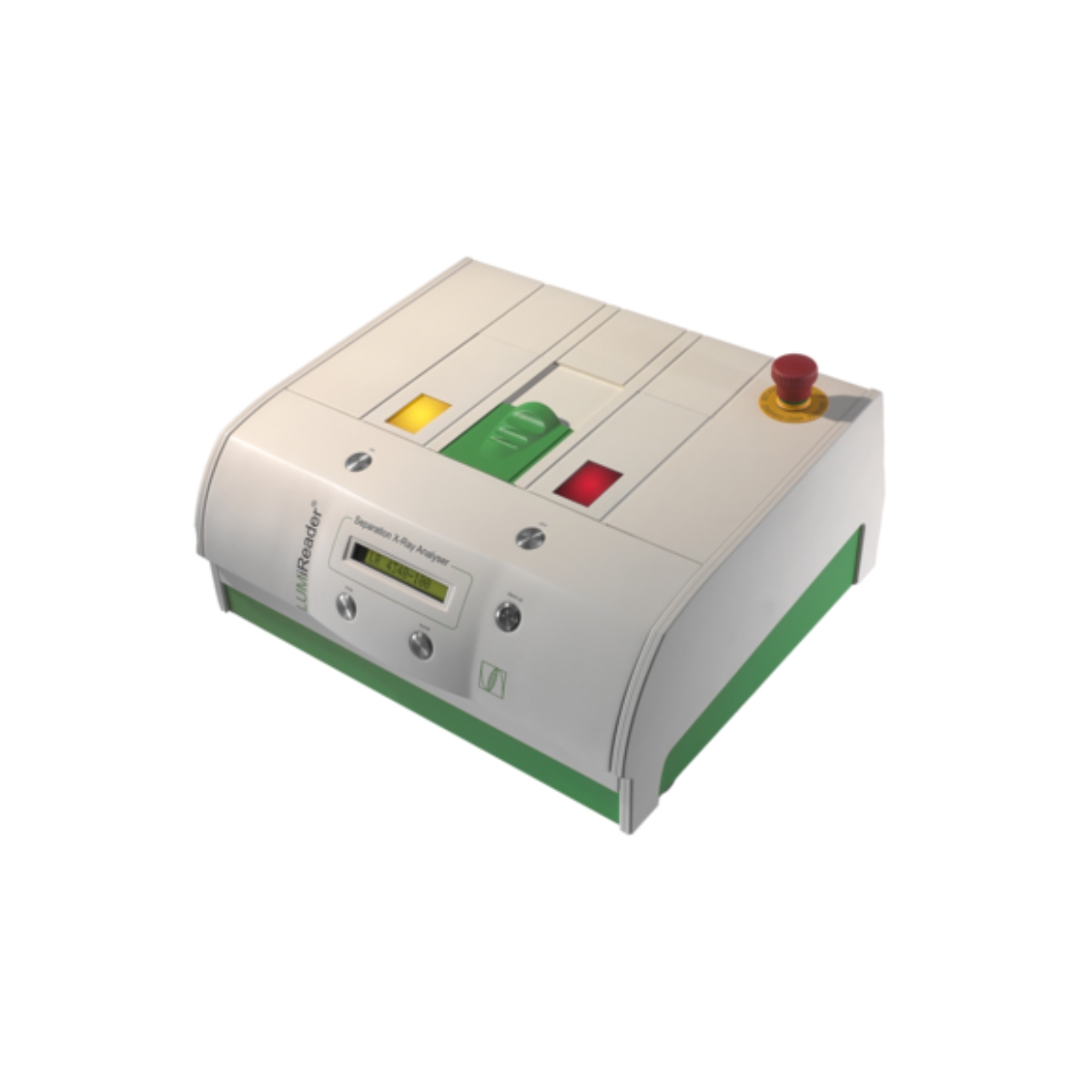

LUM GmbH – Material Characterization – LUMiReader X-Ray
The LUMiReader X-Ray is the first dispersion analyser designed for one purpose only: to study dispersability, stability, separation, and consolidation phenomena for completely transparent to completely opaque emulsions, suspension, sludges, slurries, foams and powders in real-time.
For the first time ever, illuminate your sample instantaneously from top to bottom. Solve your most challenging dispersion problems with complete insight. Go places light cannot.
Technical Specifications
| Measurement principle | monoenergetic X-ray attenuation |
| Phase separation | high concentrated dispersions (transparent or opaque) |
| In situ sediment analysis | 3 s to unlimited |
| Stability analysis | from seconds to days or weeks |
| Consolidation measurement | also in combination with LUMiFuge & LUMiSizer |
| Conformity | ISO/TR 13097; ISO/TR 18811; ISO 18747-1; CFR 21 Part 11 |
| Samples | suspensions, Emulsions, Suspo-Emulsions, Sludges, Slurries, Foams & Powders |
| Channels | 1 sample |
| Volume | 0.3 ml to 1.6 ml |
| Concentration | Up to 100 Vol% |
| Particle | any shape, from nano to microscale, no density restriction |
| Source | Monoenergetic X-ray, 17.48 keV, max 20 W at 40 kV, air cooled |
| Monochromator | Graphite |
| Disturbance free | No moving parts |
| Dimensions (WxHxD), Weight | 47 cm x 24 cm x 44 cm, 25 kg |
| Power supply | 24 V, 220 W, Adapter (100 V to 240 V) included |
| Safety | different materials, optical path 1 mm to 10 mm |
| Radiation control requirements | none; instrument can be used anywhere |
Key Features
- In-situ analysis of transparent as well as opaque dispersions
- High resolution of phase separation of multicomponent systems
- No dilution of emulsions or suspensions
- Detect concentration gradients within phases and sediment
- Signal does not depend on particle shape
- Determine mean and space resolved packing sediment densities
- See/understand complex dispersion behaviour
- Use any continuous phase of dispersing agent
- ISO/TR 13097
- ISO/TR 18811:2018
- ISO 13317
- ASTM D7827
- ISO/TR 13097
- CFR 21 Part 11
Key Industries
- Agriculture
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Mining & Minerals
- Oil & Gas
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
