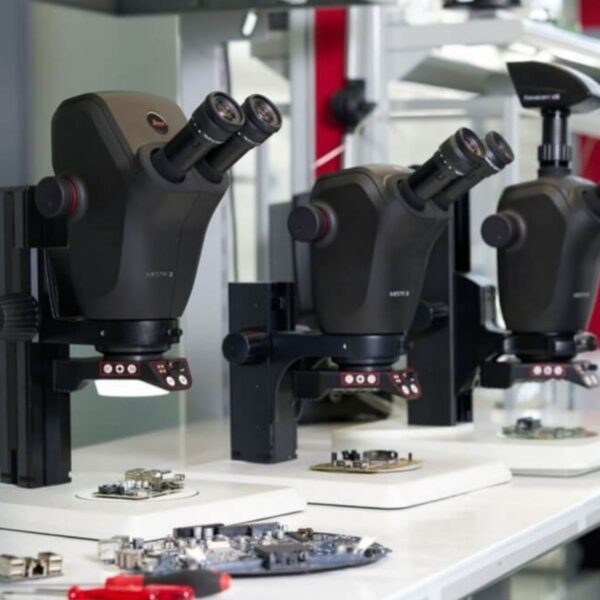

Leica – Ivesta 3 Greenough Stereo Microscopes
For manufacturers or suppliers, increasing efficiency for inspection is a priority.
You can optimize your visual inspection and rework while achieving reliable, consistent results with Ivesta 3 Greenough stereo microscopes.
Technical Specifications
| Optical system, lead-free | 10° Greenough using best-corrected central part of the objective |
| Zoom | 9:01 |
|---|---|
| Viewing angle | 35° |
| Magnification range * | 6.1x – 55x |
| Maximum resolution | 500 lp / mm |
| Maximum numerical aperture | 0,167 |
| Working distance * | 122 mm |
| Object field diameter * | 37.6 mm |
| Adjustable zoom limits * | Click-stops 10x, 20x, 30x, 40x and 50x |
| Standard objectives, lead-free | Apochromats 0.5x, 0.63x, 0.75x, 1.6x, 2.0x |
| Ergonomic eyepieces, fixed and adjustable, with cups | 10x/23, 16x/16, 20x/12 |
| Ergonomic eyepieces for eyeglass wearers, adjustable, with eyecups | 10x/23, 16x/15, 25x/9.5, 40x/6 |
| Interpupillary distance * | 50 mm – 76 mm |
| Operating temperature | 10 °C to 40 °C (50 °F to 104 °F) |
| Storage/Transport temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Relative humidity for storage / operation | 10 % – 90 % (non-condensing) |
| Use | For indoor use only |
Key Features
- Save time refocusing as you can see every important detail at a glance. FusionOptics allows you to perceive your samples in 3D with up to 3x larger depth of field.
- Change from sample overview to detail easily with the microscope’s large 9:1 zoom range.
- Reveal fine details with a magnification of up to 55x and apochromatically corrected optics.

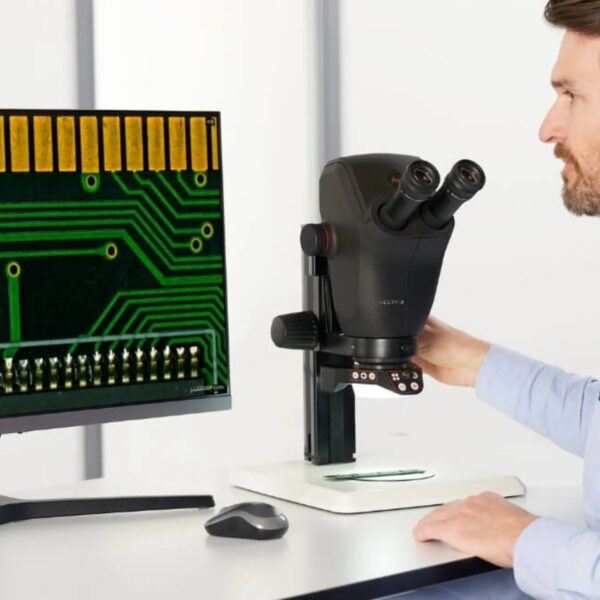

- Enable fast and easy discussions of results to get other opinions: Fast display of live images from the 12- megapixel camera on a monitor.
How It Works
Leica – Ivesta 3 Greenough Stereo Microscopes
- Greenough Stereo Microscopes
- Enersight software
Ivesta 3 Highlights
Optimize your inspection and rework tasks. Go fast from sample overview to details with the large 9:1 zoom range. Save time with less refocusing to see details thanks to FusionOptics. Conveniently handle samples with a working distance of up to 122 mm.
