LAUDA Scientific – Viscotemp – Viscothermostats with Stainless Steel Bath
LAUDA ECO stands out due to its range of functionality and ease of use. A menu navigation in plain text allows easy operation of the devices. Both control heads are equipped with a mini-USB interface as standard. Further interfaces are available as modules. Another innovation is the practical allocation of a flow-rate switch at the front on the control head. This means that individual adjustment of the flow between internal and external circulation is possible even during operation.
Available in :
Precise, Economical, Flexible
LAUDA ECO Viscotemp 15, 24 and 40 viscothermostats with high-quality stainless steel baths and galss windows can be used in the most common temperature range form 0 to 105°C. The clearly designed single-chamber systems with optional backgrund lighting provide a glass-clear view and can be easilty cleaned. They are ideal for determining, for example, the viscosity index of motor oils or the solution viscosity of plastics. With the Therm 180 heat transfer liquid, the thermostats can be operated as a corrosion-resistant thermostating bath for aggressive samples, e.g. for polyamides dissolved in sulfuric acid.
LAUDA ECO Heating Viscothermostats – Control Head Silver
LAUDA ECO control head Silver with 2.0 kW heater power (230 V) are now perfectly suited for thermostatting tasks up to 200°C. They are fitted with a monochrome LCD display.
LAUDA ECO Heating Viscothermostats – Control Head Gold
LAUDA ECO control head Gold with heating power of 2.6 kW (230 V) have a working temperature of up to 200°C. They are provided with a larger colored TFT display. Temperature profiles can be displayed graphically. A comprehensive programer with five programs and 150 temperature-time segments is a further distinctive feature compared to Silver.
Technical Specifications
| Working temperature range | 0…105°C |
| Temperature stability | 0.01 ±K |
|---|---|
| Heater Power (Silver) | 1.3 kW (115 V) 2.0 kW (230 V) |
| Heater Power (Gold) | 1.3 kW (115 V) 2.6 kW (230 V) |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath depth | 320 mm |
Available Models
Technical Specifications
| Working temperature range | 0…105°C |
| Temperature stability | 0.01 ±K |
|---|---|
| Heater Power (Silver) | 2.0 kW (230 V) 1.3 kW (115 V) |
| Heater Power (Gold) | 2.6 kW (230 V) 1.3 kW (115 V) |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 19 L |
| Bath Opening /Depth | 252 × 145 / 320 mm |
| Glass pane size | 152 × 233 mm |
| Dimensions | 532 × 233 × 552 mm |
Viscotemp 15 type offers space for up to four manual measuring stations or two automatic measuring stands, iVisc or S 5 (PVS).
Technical Specifications
| Working temperature range | 0…105°C |
| Temperature stability | 0.01 ±K |
|---|---|
| Heater Power (Silver) | 2.0 kW (230 V) 1.3 kW (115 V) |
| Heater Power (Gold) | 2.6 kW (230 V) 1.3 kW (115 V) |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 27 L |
| Bath Opening /Depth | 430 × 145 / 320 mm |
| Glass pane size | 329 × 233 mm |
| Dimensions | 708 × 233 × 552 mm |
Viscotemp 24 has space for seven viscometers or up to four automatic measuring stands. Both Viscotemp 15 and Viscotemp 24 can be fitted with cleaning modules.
Technical Specifications
| Working temperature range | 0…105°C |
| Temperature stability | 0.01 ±K |
|---|---|
| Heater Power (Silver) | 2.0 kW (230 V) 1.3 kW (115 V) |
| Heater Power (Gold) | 2.6 kW (230 V) 1.3 kW (115 V) |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 44 L |
| Bath Opening /Depth | 430 × 250 / 320 mm |
| Glass pane size | 329 × 233 mm |
| Dimensions | 708 × 328 × 552 mm |

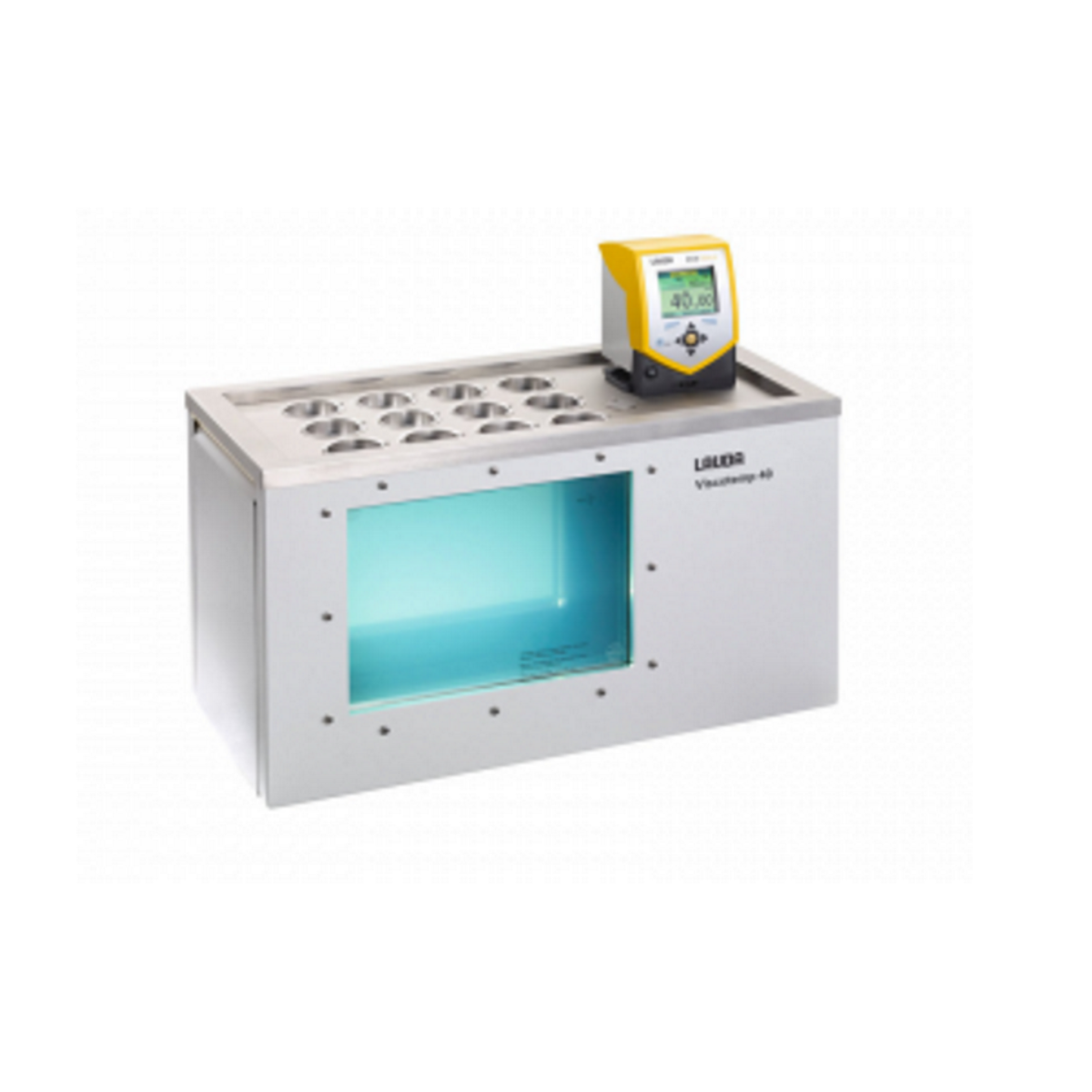

Viscotemp 40 was designed exclusively for manual measurements with twelve measuring stations.
Key Features
- Easy and intuitive operation with clearly readable parameters on LCD / TFT display
- Programer allows automation of temperature variations and test series
- Strong circulation pump with six levels allow adaptation of pump power to applications and different bath sizes
- Provides user with flexible control options with a range of different module options (ANalog, RS232/485, contact, Profibus, Ethernet, EtherCAT, Pt100/LiBus)
- Command remote control is possible via LiBus module.
- Possible computer connection via mini-USB enables easy software updates
- Drain valves as standard for easy and safe changing of heat transfer liquids
