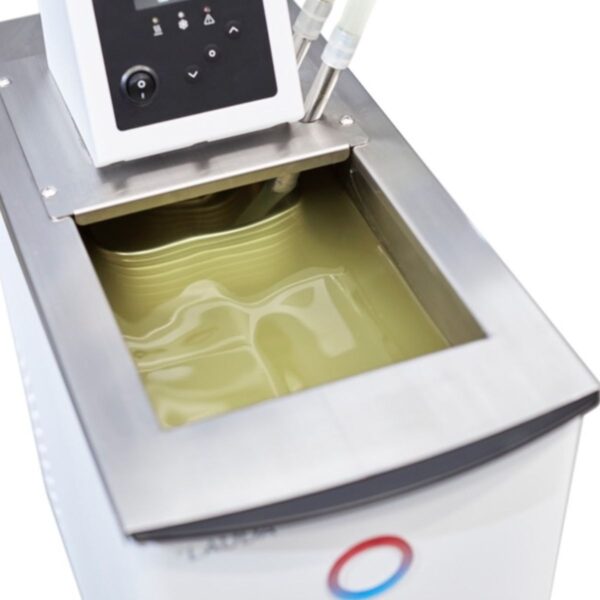

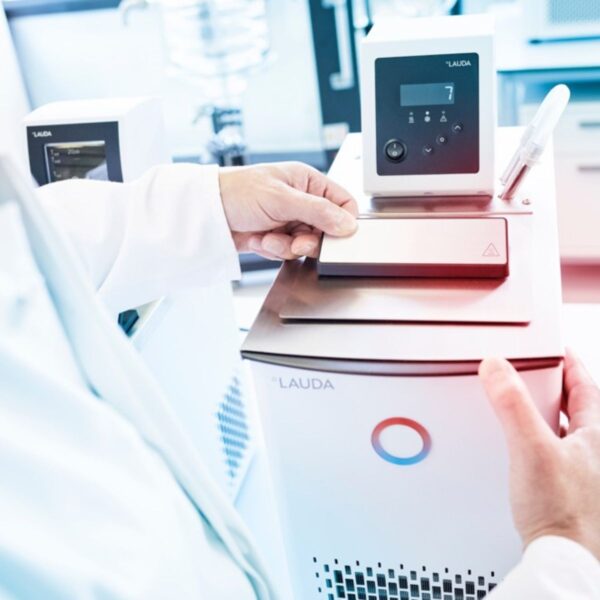

Lauda – Heating Thermostats – Alpha
Cost-Effective Heating Thermostat for Laboratory
LAUDA Alpha Heating Thermostats feature a great blend of cost-effectiveness and exceptional quality. This range of equipment is designed with primary focus on reliability, performance and user friendliness in laboratory thermostatting. By minimizing any uneccessary features, LAUDA Alpha Heating Thermostats are perfect combination of reliable thermostating performance and economical value.
Reliable Technology, Modern Design, Favorable Price
LAUDA Alpha Heating Thermostats are suitable with non-flammable liquids (water, water/glycol) and can cater for both internal and external thermostatting tasks. A 1-point calibration of LAUDA Alpha Thermostats can be easily carried out by the user.
LAUDA Alpha Heating Thermostats can operate in the temperature range between 25 and 100°C. A cooling coil and pump circulation set as well as a bath cover are available as optional accessories.
Technical Specifications
| Working temperature range | -25-100°C |
| Temperature stability | 0.05 ±K |
|---|---|
| Heater Power | 1.5 kW |
| Pump pressure max. | 0.2 bar |
| Pump flow max.* | 15 L/min |
Available Models
Technical Specifications
| Working temperature range | 25…100°C |
| Temperature stability | 0.05 ±K |
| Heater Power | 1.5 kW |
| Pump pressure max. | 0.2 bar |
| Pump flow max.* | 15 L/min |
| Bath volume | 2.5…5.5 L |
| Bath Opening | 145 mm × 161 mm |
| Bath Depth | 150 mm |
Technical Specifications
| Working temperature range | 25…100°C |
| Temperature stability | 0.05 ±K |
| Heater Power | 1.5 kW |
| Pump pressure max. | 0.2 bar |
| Pump flow max.* | 15 L/min |
| Bath volume | 8…12 L |
| Bath Opening | 235 mm × 161 mm |
| Bath Depth | 200 mm |
Technical Specifications
| Working temperature range | 25…100°C |
| Temperature stability | 0.05 ±K |
| Heater Power | 1.5 kW |
| Pump pressure max. | 0.2 bar |
| Pump flow max.* | 15 L/min |
| Bath volume | 2.5…5.5 L |
| Bath Opening | 295 mm × 374 mm |
| Bath Depth | 200 mm |
Key Features
- Easy and intuitive menu navigation and legible display values
- Low level protection with acoustic and visual alarm to shut off heater and pump when heat transfer liquid is too low
- Timer function to automatically shut down after preset time
- Automatic compressor control supplies strong cooling output only when needed improves cost efficiency and equipment life
- Fitted with screw clamp to allow easy change to different bath vessels with wall thickness of up to 30 mm
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale & Retail
Brand
We are LAUDA – The world leader in precise temperature control. Our Constant temperature equipment and Heating and cooling systems are at the heart of many applications. As a full-service provider we guarantee the optimum temperature in research, production and quality control. We are the trusted partner, particularly in the fields of automotive, chemical/ pharmaceutical, semiconductor and laboratory/ medical industries. For over 60 years we have been inspiring our customers with our competent consulting and innovative, environmentally-friendly concepts, anew every day – globally.
