Koenig & Bauer – Thermal-transfer systems
Thermal transfer printers (TTO) are ideal for high-resolution print quality on flexible packaging materials such as tubular bags, tray seals, films, folding boxes and labels.
ttPRINT printers are designed for installation in labelling and packaging machines in any application. The comprehensive Koenig & Bauer Coding portfolio offers the right printing system for your needs in consideration of your specific coding requirements.
Available Models
The ttPRINT features a high-resolution inline print unit, various print widths and an easily changeable foil cassette. Available with print widths 53 mm / 107 mm / 128 mm.
- Save valuable production time with the user-friendly operating concept.
- Achieve the highest level of availability and print quality even on PE, PP, paper, Tyvek etc. with thermal transfer ribbons specially developed for ttPRINT. Ink-side In and Out films are available in various colours.
- Ideal for high-resolution print quality on flexible packaging materials such as flow packs, tray sealing, film, folding boxes and labels.
- The comfortable, colour TFT-touch display is interactive and easy to use with up to four printing heads. Clever training programs round off this concept.
- Choice between intermittent or continuous, along or across the grain and protection class 65.
Key Features
- Protection class IP65
- Continuous and intermittent mode
- Ink-side In and Out ribbons
Technical Specifications
| Print resolution | 300 dpi |
| Print surface (Intermittent printing) (L x W) | up to 128 mm x 75 mm |
| Print speed (Intermittent printing) | 50 – 600 mm/second |
| Print surface (Continuous printing) (L x W) | up to 128 mm x 3,000 mm |
| Print speed (Continuous printing) | up to 50 – 800 mm/second |
| Ribbon length | up to 900 m |
| Ribbon roll diameter max. | up to 98 mm |
| Ribbon width max. | up to 130 mm |
| Protective class | IP 20 / (IP 65 optional) |
| Dimensions (H x W x L; mm) | Printing mechanism:204 x 182 x 235/290/310 mm, 9.5/11/11.7 kg Control unit: 251 x 207 x 97 mm, 5.5 kg |
ttPRINT ML for high-resolution print quality single or multiline use and individual print areas. Available with print widths 53 mm / 107 mm / 128 mm.
- Save valuable production time with the user-friendly operating concept.
- Achieve the highest level of availability and print quality even on PE, PP, paper, Tyvek etc. with thermal transfer ribbons specially developed for ttPRINT. Ink-side In and Out films are available in various colours.
- Ideal for high-resolution print quality on flexible packaging materials such as flow packs, tray sealing, film, folding boxes and labels.
- The comfortable, colour TFT-touch display is interactive and easy to use with up to four printing heads. Clever training programs round off this concept.
- Create possibilities by printing your own ingredients list. Take advantage of the versatility of thermal transfer printing with individual print areas for single or multiline use.
Key Features
- High resolution print quality
- Printing width up to 128 mm
- Individual print areas
- Single or multiline use
Technical Specifications
| Print resolution | 300 dpi |
| Print surface (Intermittent printing) (L x W) | up to 128 mm x up to 630 mm |
| Print speed (Intermittent printing) | up to 50 – 450 mm/second |
| Ribbon length | 600 m |
| Ribbon roll diameter max. | 85 mm |
| Ribbon width max. | up to 130 mm |
| Protective class | IP 20 |
| Dimensions (H x W x L; mm) | Printing mechanism: 215 x 290 – 860 x 260/315/335 mm, 12 – 18 kgControl unit: 135 x 287 x 360 mm, 10.5 kg |

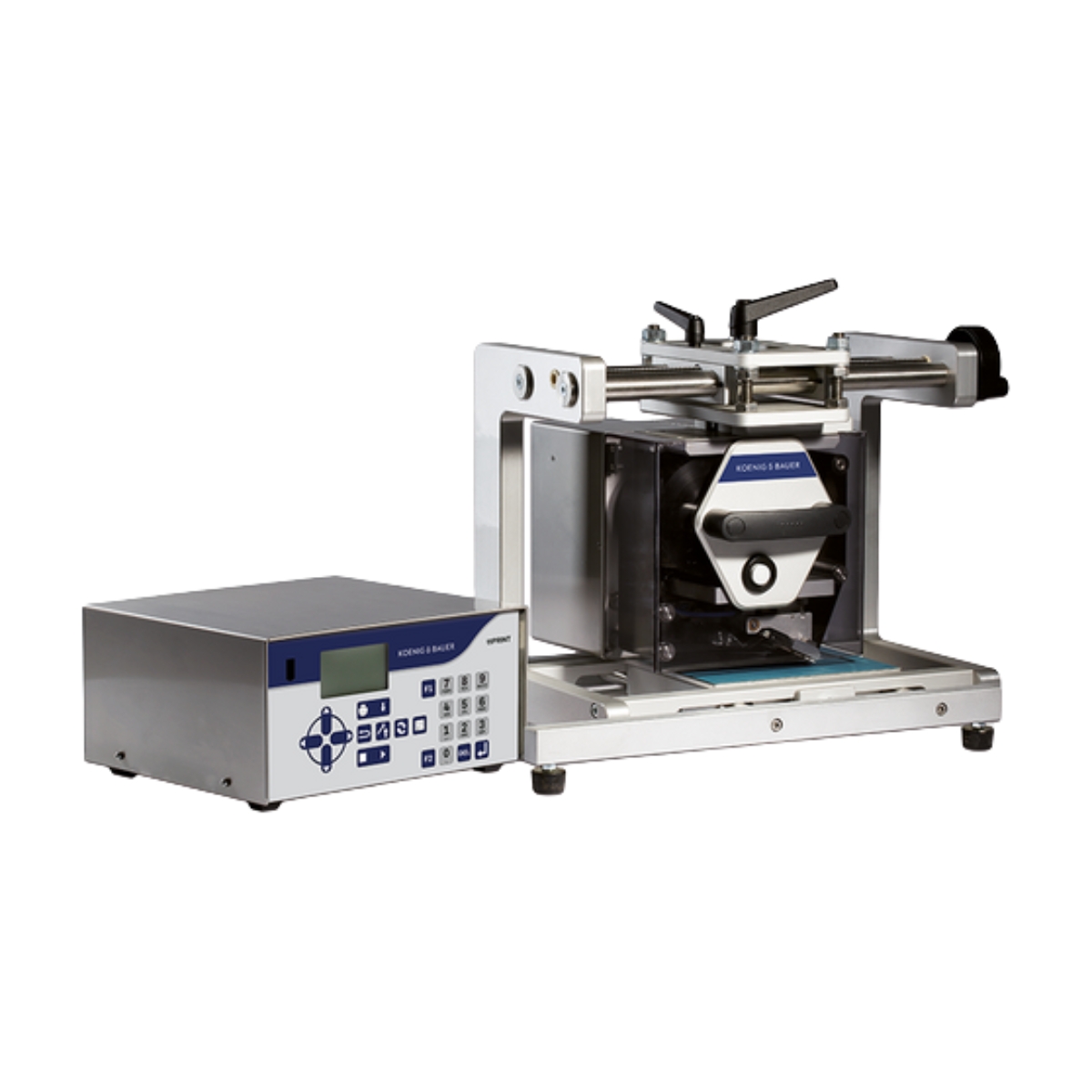

The ttPRINT XS is with it’s print area of 53 x 40 mm a cost-saving alternative to other intermittent working thermal transfer printers.
- The ttPRINT XS durable thermal strip and foil saving automation reduce cost of ownership.
- Achieve the highest level of availability and print quality even on PE, PP, paper, Tyvek etc. with thermal transfer ribbons specially developed for ttPRINT. Ink-side In and Out films are available in various colours.
- Ideal for high-resolution print quality on flexible packaging materials such as flow packs, tray sealing, film, folding boxes and labels.
- The comfortable, colour TFT-touch display is interactive and easy to use with up to four printing heads. Clever training programs round off this concept.
- Safeguard your production with a reliable and compatible concept.
Key Features
- Excellent availability
- Compact design
- Optimal price-performance ratio
- High resolution print
Technical Specifications
| Print resolution | 300 dpi |
| Print surface (Intermittent printing) (L x W) | 53.3 mm x 40 mm |
| Print speed (Intermittent printing) | 50 – 400 mm/second |
| Print surface (Continuous printing) (L x W) | 53.3 mm x 3,000 mm |
| Print speed (Continuous printing) | 50 – 400 mm/second |
| Ribbon length | 600 m |
| Ribbon roll diameter max. | 82 mm |
| Ribbon width max. | 55 mm |
| Protective class | IP 20 |
| Dimensions (H x W x L; mm) | Printing mechanism: 190 x 180 x 208 mm, 6 kgControl unit: 242 x 117 x 220 mm, 3.8 kg |
Key Industries
- Automotive
- Cosmetics and Personal Care
- Food and Beverage
- Machinery and Manufacturing
- Pharmaceutical
Brand
Koenig & Bauer Coding specializes in the development, design, production and marketing of printing, coding and marking technology, the company is a total coding solutions provider and is at the forefront of the latest market developments. Its coding systems many of which are suitable for industrial printing, barcode printing, product marking and product coding can be found in many industrial application fields and are adopted by many global leaders. Excellent product quality and the excellent standard of extensive services make the company a partner which industrial customers can depend on. The entire company has been certified to DIN EN ISO 9001:2000.
