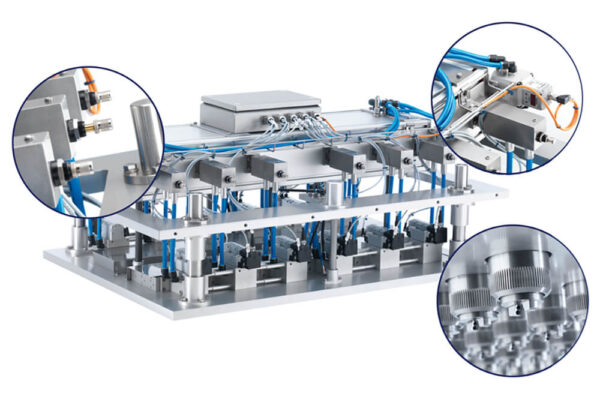

Dubor – Spray Technology – PrecisionSprayUnit (PSU)
Benefits of choosing the PSU in comparison with conventional MOGUL technology:
- for gums and jellies, toffee, fudge, marshmallow, brittle, bars, licorice and all other sticking compounds
- no powder with exhaust, processing and storage necessary
- precise spraying on surface areas, spots and bodies, in moulds and cavities
- all sizes of moulds and cavities can be used
- production into sales packaging possible
- performance up to 120 spraying-intervals per minute
- all around structured surfaces of sweets producible
- for lozenges, drageés, candy, gums and jellies
- no costly production of forming pins/dies
- reduction in scrap
- reduction in the cost per unit
- fewer steps in the process (see scheme)
- time saving results in optimal capacity utilisation
- stable production security at the same high quality
- individually adjustable to customer-specific product moulds, the size of the plant, and output
Technical Specifications
| Cavity size | from 6 mm Ø |
| Cavity configuration | custom |
| Product shape | custom |
| Number of cavities per shape | custom |
| Product rotation time | from 1 second |
| Spray volume / cavity | from 1/1000 ml |
| Viscosity | 0,5 – 2500 mPas |
| Cycle time | from 0.5 Sek. |
| Length/width/height | custom |
Key Features
- PSU – PrecisionSprayUnit
- Adjustable spray quantities
- DÜBÖR spray valves
- For constant production – 24/7
- High-grade design and materials
- For all glutinous confectionery
- Creative product design available
- Low investment and operating costs
The company DÜBÖR, a specialist for release agents and spraying equipment, has focused on the manufacture of a wide range…
