Koehler – Penetrometer – Digital Penetrometer
Penetration tests are performed on petroleum products to determine consistency and shear stability (lubricating greases) for design, quality control and identification purposes. A standard cone or needle is released from a penetrometer and allowed to drop freely into the sample for 5 seconds (or a different specified interval) at constant temperature. The depth of penetration of the cone or needle into the sample is measured in tenths of a millimeter by the penetrometer.

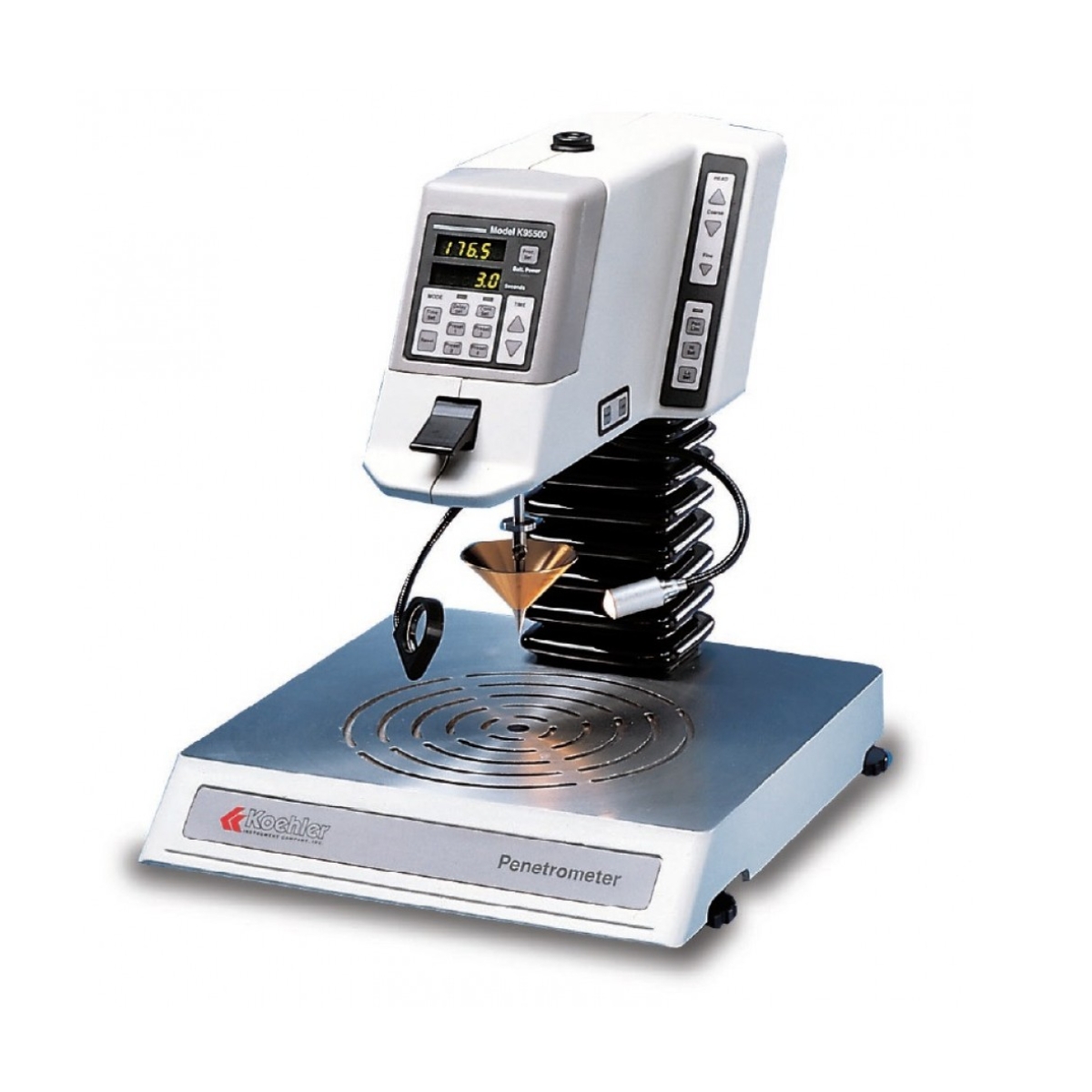

Microprocessor-based penetrometer loaded with advanced features to provide ease of operation and highly reproducible consistency measurements of petroleum products. Microprocessor control provides a full range of measurement and reporting options, and operation is simplified by four user-programmable presets that facilitate lowering the penetrator tip to the sample surface.
Automatically timed penetrations—The penetrometer defaults to the standard ASTM interval of 5.0 seconds, or the operator may conveniently program a different interval in the range between 0.1 and 9999.9 seconds (in 0.1 second increments). A curing or temperature stabilization period may also be programmed by the operator (to delay the release of the penetrator into the sample) and for added convenience all selected parameters are retained in memory and automatically repeated in subsequent tests until changed by the operator. Separate keypad controls for each parameter simplify operation. Penetration and delay intervals count down on a large, easy to read LCD on the head of the unit.
Key Features
- Tests the consistency of lubricating greases, petroleum waxes, bitumens, pastes, creams and other solid to semi-solid products
- Automatically timed operator programmable penetration measurements
- Motorized placement of penetrator on sample surface
- Large LCD to display all functions
- RS232 port for data transfer
- Full measurement range of 0-620 in 1⁄10mm scale or 1⁄100mm scale
- Rechargeable battery or AC operation
- Large, removable base accommodates grease worker cups and other
- ASTM and non-standard sample containers
- Complete selection of penetrometer cones, needles and accessories for petroleum products testing and for a wide range of other applications
- Conforms to all ASTM, IP, ISO 9001 and related specifications for penetrometers
Technical Specifications
| Compliant Standards | ASTM D5, D217, D937, D1321, D1403, D2884, D4950, D5329; IP 49, 50, 179, 310; ISO 2137; DIN 51579, 51580, 51804; FTM 791-311, 791-312, 791-313; AOCS Cc 16-60; AACC 58-14; NFT 60-119, 60-123, 60-132, 66-004 |
| Penetration Range | 0-62.0mm (0-620 penetration scale) in 1⁄10mm or 1⁄100mm |
| Penetration Interval | Operator variable from 0.1 to 9999.9 seconds with automatic repeat function and 5.0 second default |
| Power Requirements | 115V 60Hz 220-240V 50/60Hz |
| Dimensions (cm) | Base: 31.7 x 35.6 Overall: 31.7 x 35.6 x 45.7 |
| Net Weight (kg) | 9.6 kg |
