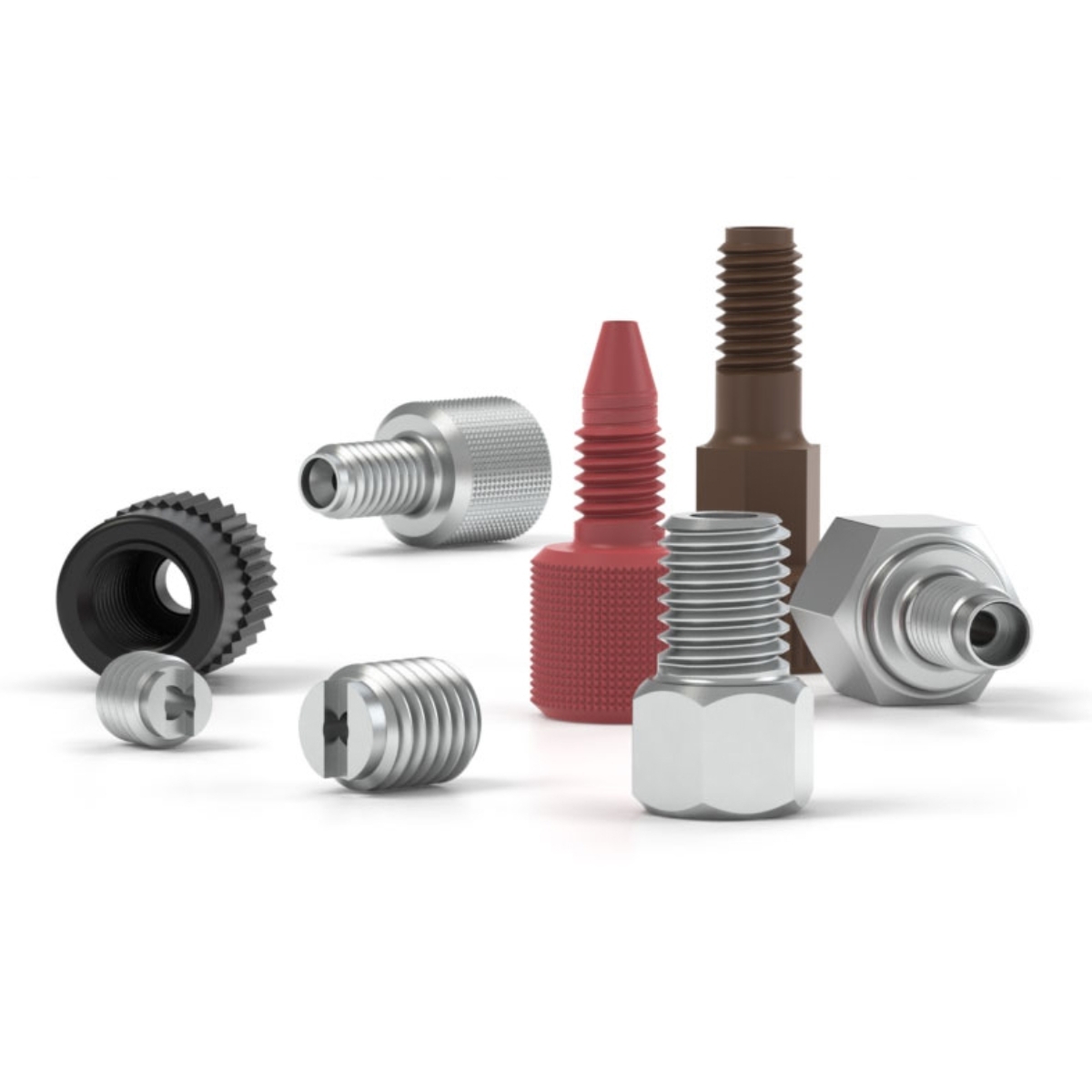

Idex – Coned Fittings – PEEK Fittings with Knobs

Our PEEK Fittings with Knobs are biocompatible and offers excellent chemical resistance. We designed these fitting to be simple, economic, and easy-to-use.

Available in :

MalaysiaSingapore
Inquire Now

Overview

Features

Specifications

It comes in one and two piece options. The multi-colored knob is designed to allow for easy identification.

Key Features

Suitable for various industries, including biopharmaceutical and chemical sectors.

Available Models

Technical Specifications

Thread Port Configuration Coned10-32
MaterialPEEK
Pressure Rating Max (psi)7000
Pressure Rating Max (bar)483
For Tubing outer diameter (inches)1/16
  • Two-Piece Extra Long Fingertight Fitting, 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Black
  • Two-Piece Extra Long Fingertight Fitting, 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Blue
  • Two-Piece Extra Long Fingertight Fitting, 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Green
  • Two-Piece Extra Long Fingertight Fitting, 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Gray
  • Two-Piece Extra Long Fingertight Fitting, 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Red
  • Two-Piece Extra Long Fingertight Fitting, 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour White
  • Two-Piece Extra Long Fingertight Fitting, 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Material PEEK, Colour Yellow

This Two-piece Extra Long Fingertight Fitting is simple, economic, and easy-to-use. Just twist to tighten this fitting manually. It has a tubing OD of 1/16 inches and has a 10-32 Coned Port Configuration. These fittings come with a Black, Blue, Green, Gray, Red, White or Yellow fitting knob and come complete with a ferrule.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialPEEK
Pressure Rating Max (psi)7000
Pressure Rating Max (bar)483
For Tubing outer diameter (inches)1/16
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Colour Black – Pack of 10 units
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Colour Blue – Pack of 10 units
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Colour Green – Pack of 10 units
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Colour Gray – Pack of 10 units
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Multi Colour – Pack of 10 units
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Colour Red – Pack of 10 units
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Colour White – Pack of 10 units
  • PEEK Two-Piece Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned, Colour Yellow – Pack of 10 units
  • PEEK Two-Piece Short Fingertight Fitting, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned – Pack of 10 units

Our Two-Piece PEEK Fitting and Ferrule is biocompatible and offers excellent chemical resistance and is simple, economic, and easy-to-use. It is for 1/16 inches outer diameter Tubing and has a 10-32 coned port configuration. This 2 piece Fingertight fitting is for tubing outer diameter of 1/16 inches. This comes in a 10 pack with black, blue, green, gray, red, white yellow, or multi-colored fitting knobs.

  • PEEK Fingertight Ferrule, for 1/16 inches outer diameter, 10-32 Thread Port Configuration Coned – Pack of 10 units

Our PEEK Finger Tight Ferrule is biocompatible and offers excellent chemical resistance. It offers simple tightening for ease of use. It is for a tubing outer diameter of 1/16 inches. It comes in a convenient 10 pack.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialPEEK
For Tubing outer diameter (inches)1/16

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
