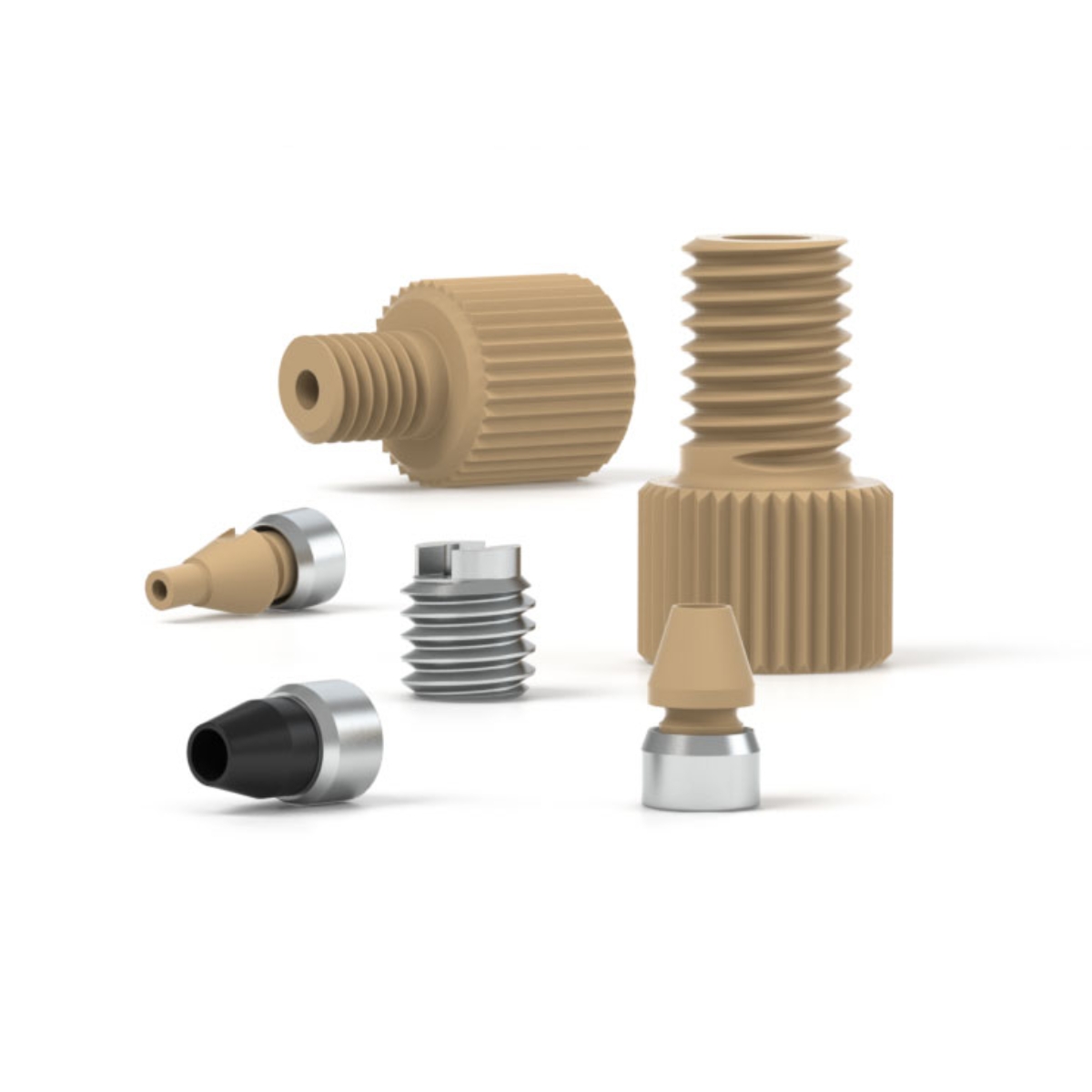

Idex – Coned Fittings – LiteTouch® Fittings

Our LiteTouch Fittings are specifically designed to effectively grip tubing at two compression points, holding to high pressures with Fingertight convenience. It also prevents polymer tubing from twisting, a potential problem when using standard Fingertight fittings. LiteTouch Fittings are available for use with 1/32 inches, 1/16 inches, or 1/8 inches outer diameter tubing sizes, and for 10-32 or 1/4-28 coned ports. To avoid collapsing the inner diameter of your tubing, the LiteTouch system can be used on hard tubing only, such as stainless steel and PEEK polymer tubing. The LiteTouch Ferrule System is not recommended for repeated use in plastic ports.

Available in :

MalaysiaSingapore
Inquire Now

Overview

Features

Specifications

IDEX LiteTouch Fittings minimize tubing stress while ensuring secure, leak-free connections, making them perfect for sensitive and high-precision applications.

Key Features

  • Low-Stress Sealing: Prevents tubing damage during installation and use.
  • Reliable Performance: Maintains tight, consistent seals in demanding environments.
  • Easy Installation: Simple hand-tight design supports quick, tool-free setup.

Available Models

Technical Specifications

ColorNatural
MaterialPEEK/Stainless Steel
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing outer diameter (inches)1/16
  • LiteTouch® Ferrule w/Stainless Steel Lock Ring, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Natural –  1 unit
  • LiteTouch® Ferrule w/Stainless Steel Lock Ring, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Natural – Pack of 10 units

LiteTouch Ferrules are specifically designed to help prevent polymer tubing from twisting during the tightening process. Our ferrule has a durable stainless steel lock ring which ensures that the it stays in place on the tubing when the fitting system is loosened from its receiving port. It is designed for 1/16 inches outer diameter tubing and has a 1-32 Coned Thread Port Configuration. It comes in natural color and is also available in a pack of 10 units.

Technical Specifications

Thread Port Configuration Coned1/4-28
Pressure Rating Max (psi)4500
Pressure Rating Max (bar)310
For Tubing outer diameter (inches)1/8
  • LiteTouch® PEEK Nut, 1/8 inches outer diameter, Head Style Double Wing, Colour Natural
  • LiteTouch® PEEK Short Nut, 1/8 inches outer diameter, Length Style Short, Head Style Standard Knurl, Colour Natural –  1 unit
  • LiteTouch® PEEK Short Nut, 1/8 inches outer diameter, Length Style Short, Head Style Standard Knurl, Colour Blue –  1 unit
  • LiteTouch® PEEK Short Nut, 1/8 inches outer diameter, Length Style Short, Head Style Standard Knurl, Colour Black –  1 unit
  • LiteTouch® PEEK Short Nut, 1/8 inches outer diameter, Length Style Short, Head Style Standard Knurl, Colour Green –  1 unit
  • LiteTouch® PEEK Short Nut, 1/8 inches outer diameter, Length Style Short, Head Style Standard Knurl, Colour Gray –  1 unit

Our LiteTouch Nut part of a system that helps prevent the twisting of polymer tubing by gripping tubing at two compression points. Our LiteTouch system can be used for hard tubing like stainless steel and PEEK, preventing the collapse of tubing inner diameter. This PEEK, Short Nut is designed for 1/8 inches outer diameter tubing. This Nut comes in blue, black, green, gray and natural.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialPEEK
For Tubing outer diameter (inches)1/16
  • LiteTouch® PEEK Nut, for 1/16 inches outer diameter – 1 unit
  • LiteTouch® PEEK Nut, for 1/16 inches outer diameter – Pack of 10 units

Our LiteTouch PEEK Nut is designed to help prevent the twisting of polymer tubing by gripping tubing at two compression points. It’s unique design allows it to be used on hard tubing like stainless steel or PEEK tubing preventing the collapse of tubing inner diameter. It is for 1/16 inches outer diameter tubing.

  • LiteTouch® Stainless Steel FlushNut™, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter

This LiteTouch Stainless Steel Nut is designed for 1/32 inches and 1/8 inches outer diameter tubing. It’s design helps prevent the twisting of polymer tubing by gripping tubing at two compression points. Our LiteTouch system can be used on hard tubing like stainless steel and PEEK Tubing preventing the collapse of tubing inner diameter.

Technical Specifications

Thread Port Configuration Coned10-32
MaterialStainless Steel
For Tubing outer diameter (inches) 1/8
Head StyleFlushNut
  • LiteTouch® Stainless Steel FlushNut™, 1/4-28 Thread Port Configuration Coned, for 1/8 inches outer diameter

Our LiteTouch Stainless Steel FlushNut is designed to helps prevent the twisting of polymer tubing by gripping tubing at two compression points. Our LiteTouch system can be used on hard tubing like stainless steel and PEEK Tubing preventing the collapse of tubing inner diameter. FlushNuts offers the answer for those tight-space applications where nut heads often interfere with each other. It has a 1/4-28 coned port configuration and is for 1/8 inches outer diameter tubing.

Technical Specifications

Thread Port Configuration Coned1/4-28
MaterialStainless Steel
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing outer diameter (inches) 1/8
Head StyleFlushNut
  • LiteTouch® SealTight™ Ferrule Black, 10-32 Thread Port Configuration Coned, for 1/16 inches outer diameter, Colour Black –  1 unit

Our LiteTouch SealTight Ferrule can be used on hard tubing like stainless steel and PEEK Tubing preventing the collapse of tubing inner diameter. This One Piece, black ferrule comes with a stainless steel lock ring. It is designed for 1/16 inches outer diameter tubing. This ferrule is part of a system that helps prevent the twisting of polymer tubing by gripping tubing at two compression points.

Technical Specifications

ColourBlack
Thread Port Configuration Coned10-32
MaterialPEEK/Stainless Steel
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing outer diameter (inches)1/16
  • LiteTouch® Ferrule, 1/8 inches outer diameter, Material PEEK, Colour Natural

Our LiteTouch PEEK Ferrule is specifically designed to be part of a system that helps prevent the twisting of polymer tubing by gripping tubing at two compression points. It can be used with hard tubing material like stainless steel and PEEK preventing the collapse of tubing inner diameter. It is designed for 1/8 inches outer diameter tubing.

Technical Specifications

ColourNatural
Thread Port Configuration Coned1/4-28
MaterialPEEK/Stainless Steel
Pressure Rating Max (psi)4500
Pressure Rating Max (bar)310
For Tubing outer diameter (inches)1/8
  • LiteTouch® Micro Ferrule, 10-32 Thread Port Configuration Coned, for 1/32 inches outer diameter

Our LiteTouch MicroFerrule can be used with hard tubing like stainless steel and PEEK Tubing preventing the collapse of tubing inner diameter. This LiteTouch PEEK ferrule has a stainless steel lock ring. It is designed for 1/32 inches outer diameter tubing. This ferrule is part of a system that helps prevent the twisting of polymer tubing by gripping tubing at two compression points.

Technical Specifications

ColourNatural
Thread Port Configuration Coned10-32
MaterialPEEK/Stainless Steel
Pressure Rating Max (psi)5000
Pressure Rating Max (bar)345
For Tubing outer diameter (inches)1/32

Key Industries

  • Biopharmaceutical and Biotechnology
  • Chemical
  • Cosmetics & Personal Care
  • Education & Academics
  • Food & Beverage
  • Medical
  • Oil & Gas
  • Pharmaceutical
  • Powders & Pigments / Coating
