Ibidi – Labware – Culture-Insert 2 Well in µ-Dish 35 mm

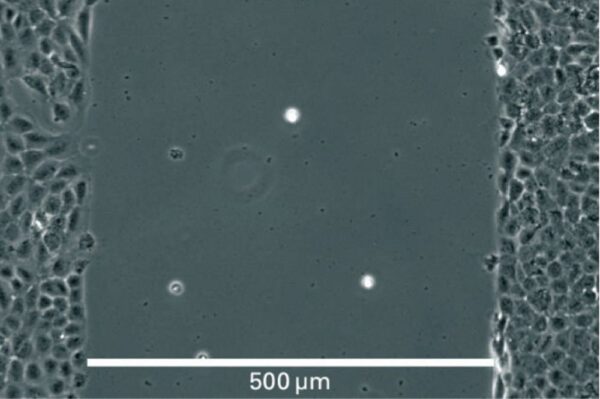

The ibidi Culture-Insert 2 Well provides two cell culture reservoirs, each separated by a 500 µm wall. Filling cell suspension in both reservoirs allow cell growth in the designated areas only. Removing the Culture-Insert 2 Well after appropriate cell attachment creates a cell-free gap of approximately 500 µm. Depending on your focus of interest, the wound healing process can either be done by using video microscopy, or by observing images at distinct time points. Measuring the changes in the cell-covered area allows for quantifying the speed of wound closure and provides cell migration characteristics.

Key Features

• 2 well silicone insert with a defined cell-free gap, suitable for wound healing, migration assays, 2D invasion assays, and co-cultivation of cells
• Complete solution for wound healing experiments, requiring only a few steps from sample preparation to image analysis
• Reproducible experiments owing to a defined 500 µm cell free gap, no leakage during cultivation, and no material being left behind after the insert’s removal
• Individual inserts for single experiments
• Ideal cell growth on ibiTreat surface

Applications

• Wound healing assays
• Migration assays
• 2D invasion assays
• Co-cultivation of cells

Technical Specifications

Technical Features

• Culture-Insert 2 Well, pre-inserted into the µ-Dish ^{35 mm, high} or µ-Dish ^{35 mm, low}
• Biocompatible silicone material with adhesive underside
• Ready-to-use: the Culture-Insert is already placed in the µ-Dish ^{35 mm, high} or µ-Dish ^{35 mm, low}
• Clean surface after insert removal without remaining material
• Find full specifications and technical details here: µ-Dish ^{35 mm, high} | µ-Dish ^{35 mm, low}

Culture-Insert 2 Well in µ-Dish ^{35mm, high}

Culture-Insert 2 Well in µ-Dish ^{35mm, low}

Principle for Wound Healing and Migration Assays

Wound Healing Assays Using the Culture-Insert 2 Well
