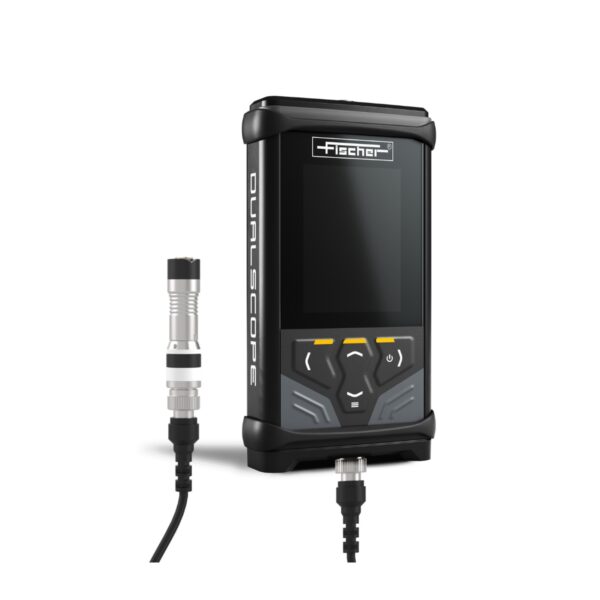

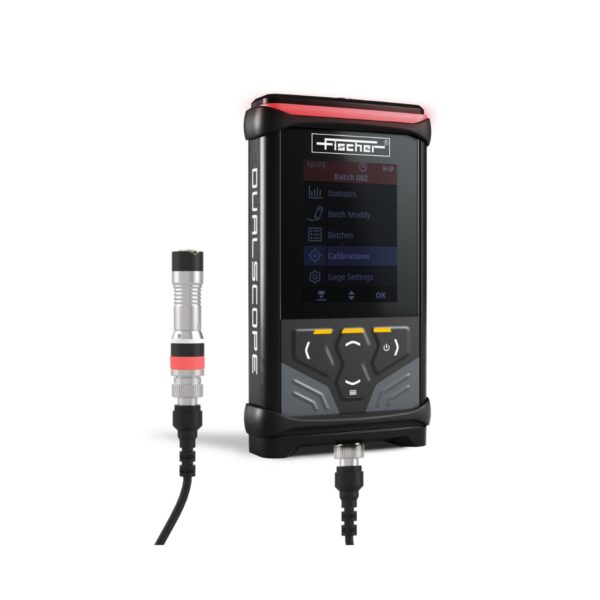

Helmut Fischer – DMP®10-40 SERIES
The all-around capabilities of coating thickness measurement.
Available in :
The new DMP®10-40 series sets the standard for tactile and non-destructive coating thickness measurement of magnetized and non-magnetized base materials. The robust and modern design, optimized functionalities, digital probes, and intuitive Tactile Suite® software make these compact handheld devices your perfect companions for any measuring requirement.
DMP®10 and 20
- Basic model
- Measured value memory: 10,000 in one batch
- Easy data transfer via USB-C
- Limit monitoring via light and sound
DMP®30 and 40
- Limit monitoring via light, sound and vibration
- Comfort model
- Measured value memory: 250,000 in 2,500 batches
- Easy data transfer via USB-C and Bluetooth
Key Features
- Universal device series for tactile coating thickness measurement thanks to enormously wide probe portfolio
- Test method: Magnetic induction and amplitudesensitive eddy current method
- Measured value memory: DMP®10/20: 10,000 in one batch, DMP®30/40: 250,000 in 2,500 batches
- Measurement range: Depending on the combination of coating and base material and the used probe
- Robust aluminum housing with protection class IP64
- Replaceable Li-Ion battery for > 24 h operating time
- Easy data transfer via USB-C and Bluetooth
- Limit monitoring via light, sound and vibration
- Digital and analog probes available for various applications
Available Models
Measuring non-magnetized or electrically non-conductive coatings on magnetized or non-magnetized, electrically conductive base materials
Measuring method:
Amplitude-sensitive eddy current method and magnetic inductive measuring method
Applications:
Measurement of non-magnetic or electrically non-conductive coatings on magnetic or non-magnetic, electrically conductive base materials
Application examples:
- ISO on NF: Paint, lacquer or plastic coatings on Al, Cu, CuZn
- ISO on NF: Anodized layers on Al
- ISO on FE: Paint, lacquer, plastic coatings on Fe, steel
- NFE on FE: Zn, Cr, Cu on Fe, steel
Measuring electrically insulated coatings on non-magnetized, electrically conductive metals
Measuring method:
Amplitude-sensitive eddy current method
Applications:
Measurement of electrically insulating coatings on non-magnetic, electrically conductive metals
Application examples:
- ISO on NF: Paint, lacquer or plastic coatings on Al, Cu, CuZn
- ISO on NF: Anodized layers on Al
Measuring non-magnetized coatings on magnetized base materials
Measuring method:
Magnetic inductive measuring method
Applications:
Measurement of non-magnetic coatings on magnetic base materials
Application examples:
- ISO on FE: Paint, lacquer, plastic coatings on Fe, steel
- NF on FE: Zn, Cr, Cu on Fe, steel
