Foss – Grain Analyzer – Infratec™
Solid, straightforward and reliable. Infratec™ draws on the latest advances in NIR technology, connectivity and usability. It makes the job of quality control easier and less time-consuming as a reliable cornerstone for any grain handling operation.
Since the Infratec™ was introduced in 1987 it quickly became the benchmark for grain analysis trusted to facilitate billions of dollars worth of fair grain trade every year.
Value
Makes your job easier with enhanced usability. Built on advanced NIR technology for the most trustworthy results. Improves uptime with digital connectivity and support package.
Sample type
Barley, wheat, corn and other cereals, oilseeds, beans and pulses.
Parameters
Moisture, protein, oil, test weight, starch, wet gluten, fiber, ash and many more.
Technical Specifications
| Infratec™ 1241 | Infratec™ Sofia | ||
|---|---|---|---|
| Dimensions (W x D x H) | 500 × 570 × 400 mm | 255 x 390 x 295 mm | |
| Weight | 30 kg | 9 kg | |
| Voltage supply | 220-240V 50-60Hz or 110-120V | 100-240 V AC *, frequency 50-60 Hz, Class 1, protective earth | |
| Wavelength range | 570 – 1100 nm | 850 – 1050 nm | |
| Measurement mode | Transmittance | Transmittance | |
| Analysis time | 50 seconds for 10 sub-samples | Approximately 3 minutes for 10 sub-samples | |
| *Mains supply voltage fluctuations not exceeding ±10% of the rated voltage. | |||
Available Models
Technical Specifications
| Rated current | 1.0A (110-120V) / 0.5A (220-240V) |
|---|---|
| Spectrometer | Scanning monochromator |
| Detector | Silicon |
| Optical bandwidth | 7 nm |
| Number of data points/scan | 265 |
| Light source | Tungsten halogen lamp |
| Storage Media | Flash disk, USB memory stick |
| Display | 640 × 480 TFT LCD |
| Path length | Variable cell automatically controlled from 6 – 33 mm |
| Result report | Presented on the display as default. Can be sent to PC/LIMS and the printer port |
| Outlier function | Warnings and options for the presentation of the result |

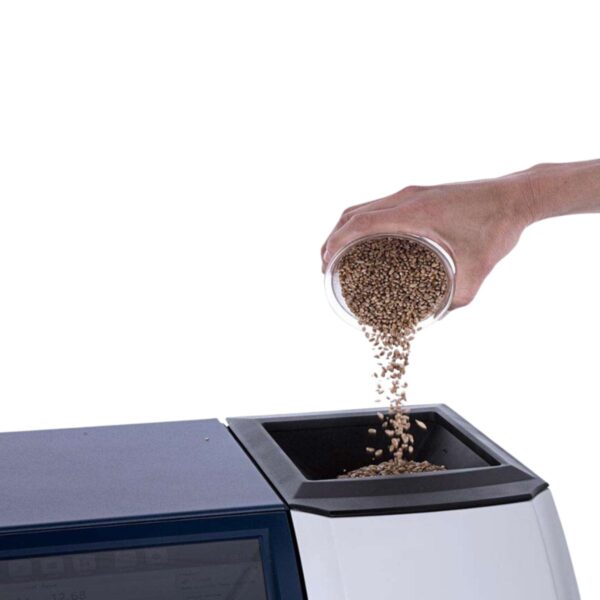

The 3rd generation Infratec™ 1241 is the world’s most widely used grain analyzer. Based on 60 years of experience, Infratec™ is recognized by the global grain industry as the trusted method for grain analysis.
Value
The global standard in grain analysis with a calibration database covering more than 20 years of harvest. Reliable even in a harsh environment.
Sample Type
Barley, wheat, corn and other cereals, oilseeds, beans and pulses.
Parameters
Moisture, protein, oil, test weight, starch, wet gluten, fiber, ash and many more.
Technical Specifications
| Degree of protection | IP 65 |
|---|---|
| Ambient temperature | 0 – 45°C |
| Storage temperature | -20 to 70°C |
| Ambient humidity | < 93% RH, cyclic up to 100% RH |
| Mechanical environment | Stationary when in use, in vehicles |
| EMC environment | Light industry, industry and agricultural machines |

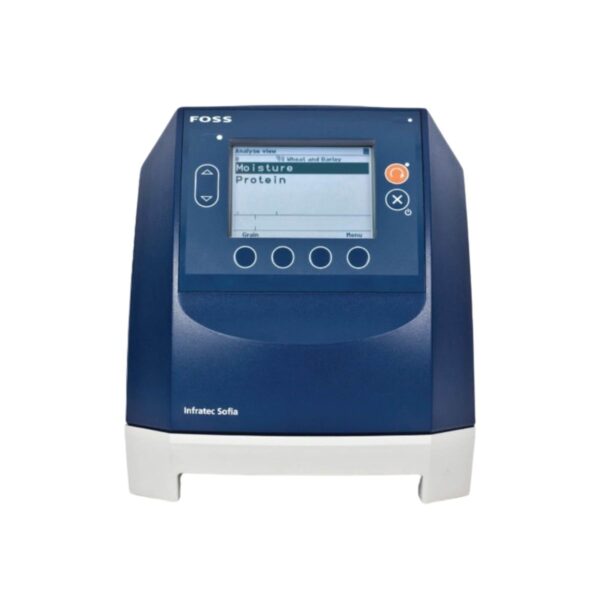

Infratec™ Sofia brings the value of precision grain testing to grain receival sites of all sizes. Mobile, easy to use and aligned with the renowned Infratec™ 1241 analyzer.
Value
Accurate on-the-spot analysis. Mobile, robust and easy to use. Using Infratec™ database covering more than 20 years of harvest.
Sample type
Wheat, barley, rapeseed/canola, corn, soy beans and more.
Parameters
Moisture, protein, oil and more.
Key Features
Infratec™
ANN – a global industry needs global calibrations
The huge Infratec™ database comprises over 50.000 cross checked samples, PLS and robust ANN-based calibrations building on a wide sample range from many years of harvests. This gives a level of accuracy and stability that enables Infratec™ to test even the most unusual samples anywhere in the world.
FossConnect™
FossConnect™ is a centralised networking management solution for Infratec™ that helps you reduce your production costs and secure the quality of your products. With FossConnect™, you can manage, configure and monitor your instruments remotely from any internet-enabled computer and safeguard your data for whenever you need it.
Established standard worldwide
Infratec™ is officially approved and established worldwide as the standard for determining protein, moisture, oil and starch. Its accurate and reliable results help you to deliver consistent quality.
With Infratec’s patented stabilising technique, you get correct results whatever the weather. For instance, protein is predictable to within 0,1% and it can be measured in temperatures ranging from -4°C to +40 °C.
Infratec™ – The New Straightforward Digital Grain Analyser
Know-How to Optimise Your Grain Business
Infratec™ 1241 Grain Analyzer
See how the Infratec Sofia Works
