Eltra – Carbon/Hydrogen/Sulfur Analyzer – CHS-580
Product Advantages
- Fast simultaneous determination of CHS
- Powerful horizontal resistance furnace up to 1,550 °C, adjustable in steps of 1 °C
- High sample weights of 500 mg and more possible
- Customizable measuring range
- Individual infrared cell configurations available
Application Examples
Coal, coke, oil, plant materials, rubber, soot, tobacco, waste
Function Principle
Operation CHS-580

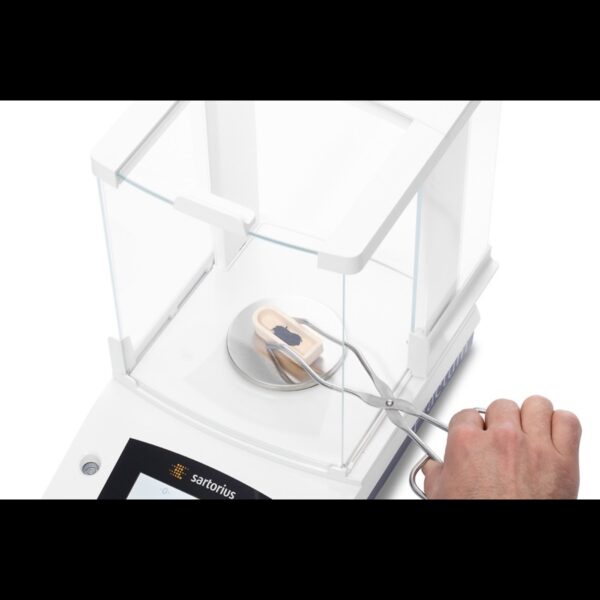

After weighing the sample in a ceramic boat, the weight is transferred from the interfaced balance to the PC. If required, sample weights can also be entered manually. Then the ceramic boat is introduced into the furnace for combustion. The average analysis time is 60 to 180 seconds. The detector signals and instrument parameters are displayed during analysis. Evaluation of the signals and display of the results are done automatically; the data can be transferred to a laboratory information management system (LIMS). The CS-580 requires minimum maintenance. The particle filters and chemicals which need to be maintained are easily accessible.
Â
Measuring Principle CHS-580
In the CHS-580 the sample is burnt in an oxygen atmosphere at temperatures up to 1,550°C. The furnace temperature can be freely selected in steps of 1°C. The combustion gasses (CO2, H2O, SO2) coming from the furnace and first pass through a dust filter and then into the heated H2O infrared cell. After the water vapor is chemically absorbed, the dried CO2 and SO2 gas is detected in the additional infrared cells. Depending on the configuration, it is possible to combine up to three infrared cells with different sensitivities.
Technical Specifications
| Measured elements | carbon, hydrogen, sulfur |
| Samples | organic |
|---|---|
| Furnace alignment | horizontal |
| Sample carrier | ceramic boats |
| Field of application | agriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals |
| Furnace | resistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C) |
| Detection method | solid state infrared absorption |
| Number of IR cells | 1 – 3 |
| Material of IR path | gold |
| Typical analysis time | 60 – 180 s |
| Chemicals required | magnesium perchlorate, sodium hydroxide |
| Gas required | oxygen 99.5 % pure (2 – 4 bar / 30 – 60 psi) |
| Power requirements | 230 V, 50/60 Hz |
| max. heat up current 2000 W | max. heat up current 2000 W |
| Dimensions (W x H x D) | 55 x 80 x 60 cm |
| Weight | ~ 70 kg |
| Required equipment | balance (resolution 0.0001g), monitor, PC |
| Optional accessories | TIC module, voltage stabilizer 5 KVA |
Key Features
CHS-580
- Simultaneous carbon, sulfur and hydrogen determination with minimal sample preparation
- Wide range of organic materials can be analyzed
- Rapid, precise, accurate and reliable element determination
- Resistance furnace can be set up to 1550 °C in steps of 1 °C
- Customized infrared cells provide wide, dynamic measuring range
- Due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
- Powerful software (multilingual, customized display, export of results)
- Single and multipoint calibration
- Low maintenance
- Robust design allows usage in production control and laboratory
Key Industries
- Construction
- Energy
- Environmental
- Mining & Minerals
Brand
ELTRA is a specialist for elemental analyzers for the accurate and rapid analysis of solid materials. ELTRA equipment is a standard for elemental analysis in industries such as mining, steel, energy, cement and metal working.
ELTRA analyzers are used to reliably determine elements like carbon, hydrogen, sulfur, oxygen and nitrogen, and cover a wide, dynamic measuring range. The ability to adapt each analyzer to user specifications allows the precise measurement of a great variety of organic and inorganic samples in a multitude of applications.
