Elementar – Inorganic Elemental Analysis
The elemental composition of a material determines its properties. Elemental analysis is therefore essential for the characterization and quality control of materials that need to meet certain requirements.
Elementar’s user-friendly inductar series using the high-temperature combustion method to determine elemental concentrations of carbon, sulfur, oxygen, nitrogen, and hydrogen is the ideal solution for R&D, routine, and high-throughput laboratories.
Delivering highly precise analysis results with easy handling and low maintenance without tedious cleaning. The user-friendly, intuitive software and the tool-free maintenance make the operation of the instruments very easy.
Key Features
- Minimized dust and debris make tedious cleaning operations needless
- Semi-automated or fully-automated with up to 89 sample positions for secure and unattended 24 / 7 operation
- Solid-state technology for long-living induction furnace
- Gas-tight clamp connection system ensures easy and tool-free maintenance
- Intuitive and feature-rich software makes operator‘s life incredibly simple
Available Models
Elementar developed a CS analyzer which combines highly accurate data with easy to use, clean, and automated processes. Experience the new level of carbon and sulfur determination in metals and inorganic materials. The new inductar CS cube is full of innovative and advanced ideas to make CS analysis easy to use and more reliable.
Key Features
- Minimized dust and debris make tedious cleaning operations needless
- Semi-automated or fully-automated with up to 89 sample positions for secure and unattended 24 / 7 operation
- Solid-state technology for long-living induction furnace
- Gas-tight clamp connection system ensures easy and tool-free maintenance
- Intuitive and feature-rich software makes operator‘s life incredibly simple

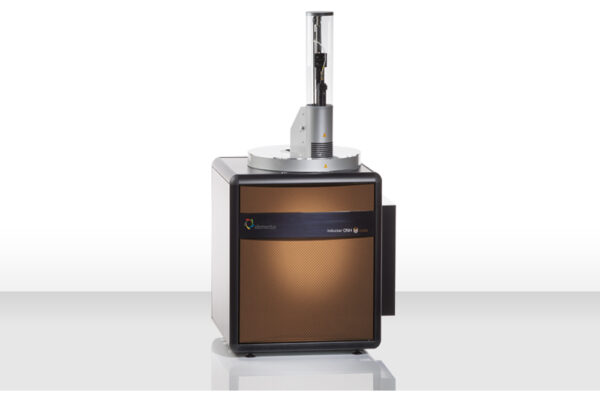

The inductar ONH cube is an innovative elemental analyzer, which is able to analyze oxygen, nitrogen and hydrogen concentrations in inorganic materials simultaneously. This high-precision ONH analyzer for metallic or ceramic materials uses only state-of-the-art technologies. It is equipped with a long-life solid-state high-frequency induction furnace, which makes it possible to reach sample temperatures of up to 3000 °C. Thanks to an optional camera the gas release can be observed in real-time by the operator. Also for the element detection advanced technologies are used. Oxygen is analyzed by a wide-range IR detector, which is capable to detect the whole concentration range. For the precise hydrogen analysis a unique electrochemical detection technology finds usage for the first time. The nitrogen analysis by a well-known thermal conductivity detector completes the precise and simultaneous 3-element analysis of oxygen, nitrogen and hydrogen in one cycle.
Key Features
- First ONH analyzer with solid-state induction furnace
- Unique H determination and wide range IR detector
- Simultaneous ONH analysis in one cycle
- Fully automated with up to 50 position autosampler
- Optimized for secure and unattended 24/7 operation
- Intuitive and multi-language software
- Easy accessible components
- Tool-free maintenance

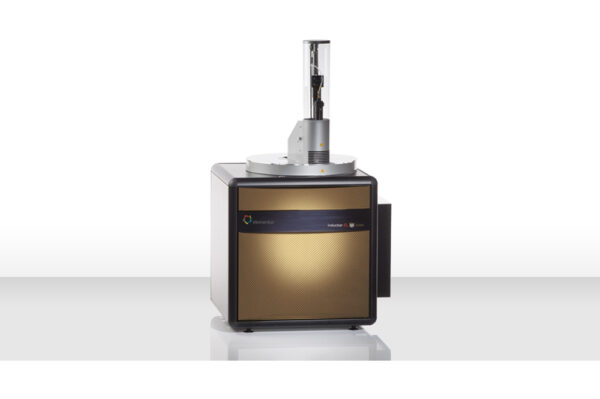

For the first time in history of inorganic elemental analysis it is possible to analyze 5 elements in 1 analyzer. The newly developed and worldwide unique inductar EL cube sets new standards in flexibility and precision with its innovative solutions and state-of-the-art technology. It is equipped with a long-life solid-state high-frequency induction furnace, which makes it possible to reach a sample temperature of up to 3000 °C. Thanks to an optional camera the gas release can be observed in real-time by the operator. Also for the element detection new technologies are used. Carbon, sulfur and oxygen are analyzed with a wide-range IR detector, which are capable to detect the whole concentration range. For the precise determination of hydrogen an innovative detection technology finds usage for the first time. The concentration of the fifth element nitrogen is detected via TCD.
Key Features
- Elemental analysis of C, S, O, N, and H in one analyzer
- Feeds the sample from the top
- Smart guided gas flow
- Fully automated with up to 90 position autosampler
- Optimized for secure and unattended 24/7 operation
- Minimum of dust and debris formation
- Intuitive and multi-language software
- Easy accessible components
- Tool-free maintenance
Key Industries
- Aerospace
- Automotive
- Chemical
- Construction
- Education & Academics
- Electronics
- Energy
- Machinery & Manufacturing
- Mining & Minerals
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
Elementar is the world leader in high performance analysis of organic elements. Continuous innovation, creative solutions and comprehensive support form…
