Buchiglass – miniPilot® – Pilot plant reactor for R&D

Multipurpose glass reactor for small volumes

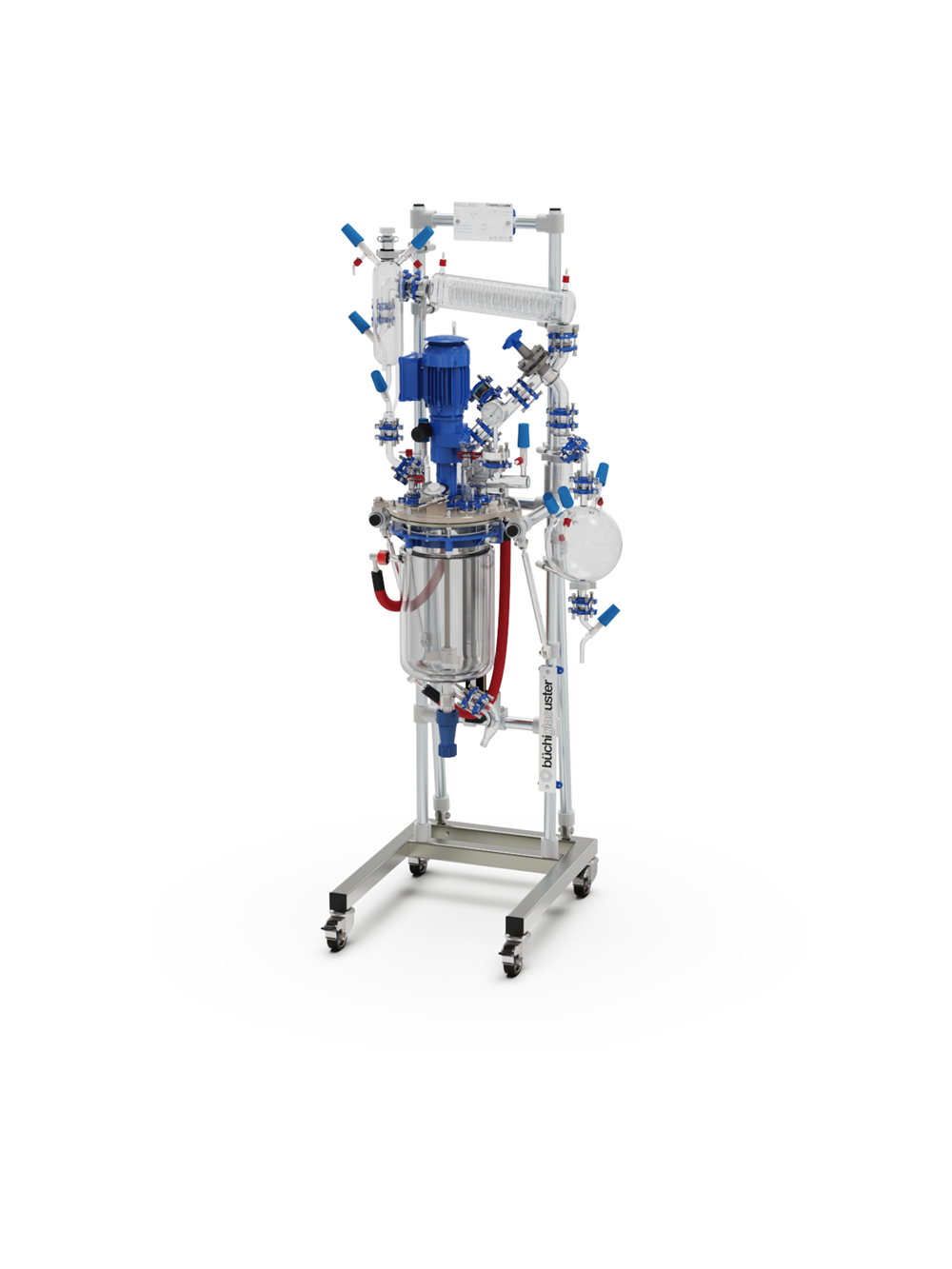

The miniPilot® is a pilot reactor for chemical process development, scale-up, process simulation and kilo-scale production. Optional add-ons such as a nutsche filter and a scrubber complete the setup. The reactors’ explosion proof design (ATEX) and inert materials allow safe processing of solvents and acids in a completely sealed reaction vessel. The compact standard reactor setup can easily be modified, interchangeable reaction vessels of 5, 10 and 15 liter including interchangeable stirrers are available.

Technical Specifications

Glass reactor:	5, 10, 15 liter
Pressure:	-1.0 to +1.0 bar
Temperature:	-60 °C (optional -90 °C) to +200 °C
Material:	Borosilicate glass 3.3, PTFE, PFA, PEEK

Key Features

Standard package

• Interchangeable 5, 10 and 15 liter jacketed glass reactor
• Baffle with Pt100 temperature sensor
• Continuous adjustable agitator speed, 0-600 rpm
• Dry running mechanical seal
• Compact stainless steel frame, table or floor model, mobile
• ATEX Classification: 2G IIB
• CE, cGMP, TA-Luft
• CIP capable
• FDA conform, highly corrosion resistant materials: Glass, PTFE, PFA, PEEK
• Delivery fully assembled
• Complete documentation

Standard options

• Reactor lift for easy reactor opening, cleaning, stirrer exchange
• Triple-wall reactor for -90 °C chemistry
• Glass distillation overhead
• Sampling system
• Probes for pH, others
• CiP spray nozzle
• IQ, OQ, PQ

Typical applications

• Chemical synthesis
• Peptide synthesis
• Extraction / evaporation
• Process development
• Purification / crystallization
• Cryogenic reactions
• Separation
• Scale-up
• cGMP API production
• Pilot plant / kilo lab

miniPilot® Product Video

In this video, we demonstrate how versatile, safe, and convenient the miniPilot® glass reactor is in daily operation.
