BMGLABTECH – SPECTROstar Nano

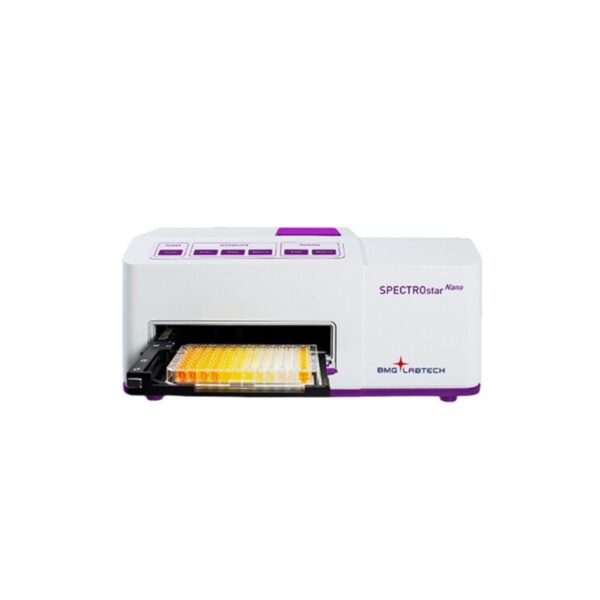

SPECTROstar Nano
The SPECTROstar Nano is equipped with BMG LABTECH’s ultra-fast UV/vis spectrometer, which allows users to measure full-spectrum absorbance (220 – 1000 nm) in less than 1 second per well. It is the ideal instrument to read all absorbance assays in a microplate or cuvette – with many common assay protocols predefined and available at the click of the mouse.
Technical Specifications
| Detection Modes | UV/vis absorbance spectra |
| Measurement Modes | Endpoint and kinetic Spectral scanning (absorbance) Well scanning |
| Microplate Formats | 6 to 1536-well plates, user-definable LVis Plate with 16 low-volume microspots (2 μL) |
| Microplate Carrier | Robot compatible |
| Light Sources | High energy xenon flash lamp |
| Detectors | CCD Spectrometer |
| Wavelength Selection | UV/vis absorbance spectrometer Full spectra or 8 distinct wavelengths in < 1 sec/well |
| Spectral Range | 220 – 1000 nm; wavelength precision: ≤ 0.5 nm |
| Sensitivity | Selectable spectral resolution: 1, 2, 5, and 10 nm OD range: 0 to 4 OD; photometric resolution: 0.001 OD Accuracy: < 1% at 2 OD Precision: < 0.5% at 1 OD and < 0.8% at 2 OD Linearity: ≤ 0.8% at 2.0 OD |
| Read Times | Full spectrum from 220 to 1000 nm in less than 1 sec/well |
| Shaking | Linear, orbital, and double-orbital with user-definable time and speed |
| Incubation | #ERROR! |
| Software | Multi-user Reader Control and MARS Data Analysis Software included FDA 21 CFR Part 11 compliant |
| Dimensions | Width: 36 cm, depth: 50 cm, height: 16 cm; weight: 10 kg |
Key Features
- High-speed absorbance measurements
- Measurements in up to 1536-well plates
- Integrated cuvette port
- LVis Plate compatibility
- Incubation up to 45 °C
- Multiple shaking options
- Well scanning with up to 900 data points per well
- Easily integrated into automated systems
SPECTROstar Nano Absorbance Reader
BMG LABTECH’s absorbance microplate reader SPECTROstar Nano has the flexibility to perform assays quickly and easily in both microplates. This spectrometer-based absorbance microplate reader captures a full UV/visible spectrum in less than 1 sec per well. Its speed make the SPECTROstar Nano the leading microplate reader for absorbance measurements.
Key Industries
- Biopharmaceutical and Biotechnology
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Pharmaceutical
Brand
Our history begins in 1990, as the physicist Dr. Bela Gurath founded BMG LABTECH in Offenburg, Germany. The first three years were affected by defining the strategic orientation of the company. In this year’s, further shareholders joined, among others Dr. Thomas Räbiger who is leading the company today. The team quickly realised that they should develop their own products and set the sights on becoming “the microplate reader company” on the market.
