  • BF Series Brochure – Binder


The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine

Incubators with Forced Convection for Challenging Incubation Tasks

BINDER offers incubators to suit different laboratory requirements. Alongside incubators with mechanical adjustment, the Classic.Line also includes incubators with natural convection and, in the BF series, incubators with forced convection, which guarantee quick temperature equalization through forced convection after the chamber door has been opened.

Operating within a temperature range of between 5 °C and 100 °C, these incubators with forced convection all have an adjustable exhaust air flap and the fan speed can be adjusted on an individual basis. The proven APT.line™ preheating chamber technology and the cooling system guarantee maximum precision and results that are reproducible in every laboratory test.



Incubators with Forced Convection for Precision, Functionality, and Usability

The BINDER BF series incubators with forced convection are also ideal for challenging incubation tasks, with safety and precision guaranteed even when fully loaded and under high batch throughputs. Operation with forced convection is unbelievably homogeneous, while the incubator also offers speedy recovery times. The incubator with forced convection boasts high usability thanks to its straightforward controller with timer functions. The units can be stacked on top of one another for an optimum ratio between use and space needed. Reliable decontamination is another advantage afforded by these incubators. The disinfection routine at 100 °C minimizes the risk of contamination, while the premium stainless steel inner chamber does not have any built-in fixtures, allowing for ease of cleaning.

This BINDER incubator with forced convection is energy efficient, so is also extremely economical during operation.

Technical Specifications

ModelHousing dimensions not incl. fittings and connections
W x H x D
Internal dimension
W x H xD
Net weightInterior volume
BF 56560 x 625 x 565 mm400 x 440 x 340 mm40 kg59 L

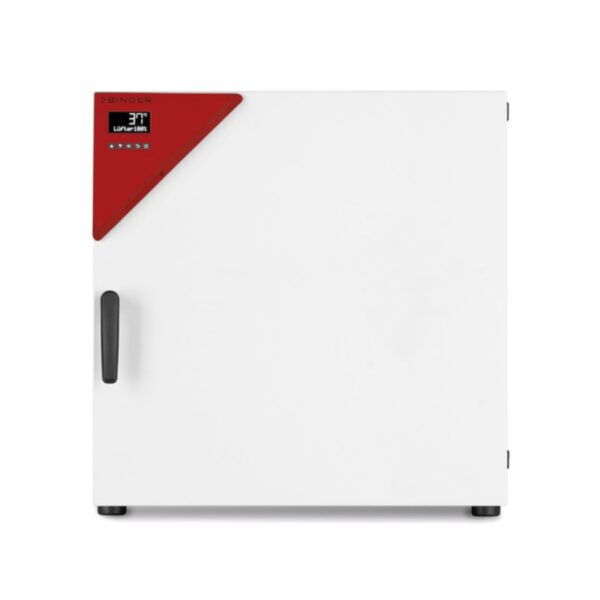

BF 115710 x 725 x 605 mm550 x 550 x 380 mm56 kg114 L

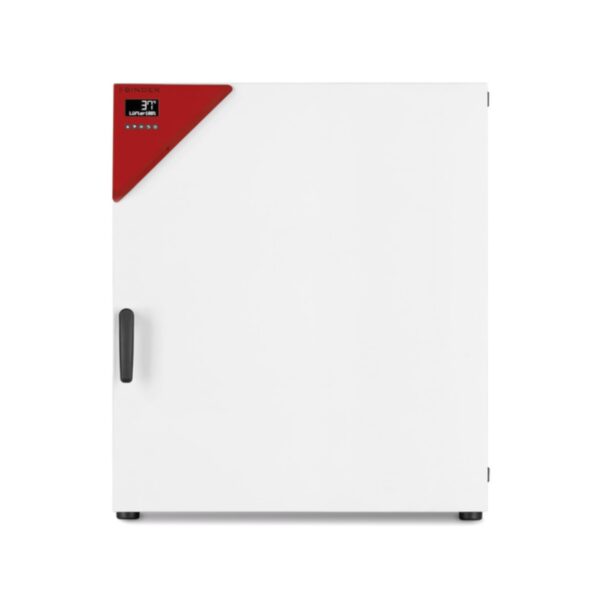

BF 260810 x 845 x 760 mm650 x 780 x 510 mm85 kg257 L
BF 7201165 x 1590 x 870 mm1000 x 1300 x 565 mm166 kg734 L

Available Models

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine
  • Temperature range: ambient temperature plus 7 °C to 100 °C
  • High temperature accuracy thanks to APT.lineâ„¢ technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Stackable
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data
  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine
  • Temperature range: ambient temperature plus 8 °C to 100 °C
  • High temperature accuracy thanks to APT.lineâ„¢ technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Stackable
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data
  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine
  • Temperature range: ambient temperature plus 7 °C to 100 °C
  • High temperature accuracy thanks to APT.lineâ„¢ technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Stackable
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data
  • Temperature range: ambient temperature plus 10 °C to 100 °C
  • High temperature accuracy thanks to APT.lineâ„¢ technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • 4 stable castors, two with brakes, from 720 liters
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

APT.lineâ„¢ Avantgarde Air Flow Technology

Key Industries

  • Education & Academics
  • Food & Beverage
  • Pharmaceutical
  • Service

Brand

Binder

With 22,000 series production machines supplied each year globally, family company BINDER is now one of the leading experts on environmental simulation chambers. For over 30 years at our German site in Tuttlingen, we have developed and produced premium products which combine superior technology, first-class advice, and exemplary service. These three factors are symbolized by the three red triangles that make up our logo – and our customers appreciate the benefits every day through the outstanding results of their work.
