ATTO – Protein Electrophoresis
Compact-slab size electrophoresis system with built-in Power Supply.
ATTO’s Protein Electrophoresis systems are designed for efficient and compact protein and nucleic acid separation, suitable for both entry-level and advanced laboratory applications.
Key Features
- Rapid Electrophoresis: Achieve separation in as little as 10 minutes using the high mode setting, enhancing laboratory efficiency.
- Integrated Power Supply: Built-in power supplies simplify setup and reduce workspace clutter, facilitating straightforward operation.
- Versatile Gel Compatibility: Compatible with both precast and hand-made gels, offering flexibility for various experimental needs.
Available Models
Technical Specifications
| Plate size | 76 (W) x 70 (H) x 4.8 (D) mm | |
| Gel size | 60 (W) x 60 (H) x 0.75 (D) mm | |
|---|---|---|
| Number of gels | 1 gel | |
| Buffer volume | 170 mL (45 mL for upper chamber, 125 mL for lower chamber) | |
| Material | Chamber: Acrylic plastic and silicone | |
| Mode | High mode: 24 W / Std mode: 21 mA / Low mode: 10.5 mA | |
| Power | AC100-240V 50/60 Hz | |
| Dimension | 104 (W) x 108 (D) x 137 (H) mm (Without accessories and projection) | |
| Weight | 0.6 kg (without accessories) | |
| Component | Main unit, AC adaptor, Cable extension | |
| View the entire technical specifications in the brochure. | ||
Applications
- Separation of Protein, purity determination, estimation of purified product, and expressed protein
- Screening, Protein or Nucleic Acid electrophoresis for entry-level experiments and students
- SDS-PAGE, nativePAGE, DNA-PAGE
Visit the brochure to find out more about the application.
Key Features
- The fastest electrophoresis time: 10 min (High mode)
- The system’s built-in power supply
- Compact size, Reduce working space
- Easy operation with precast running condition
- Available for both the precast gel and hand-made gel
- Cut the amount of buffer and reagent
- Compatible caster: AE-7310 Compact Gel Cast, WSE-1090 Multi Compact Gel Cast
- Compatible precast gel: ATTO Precast Compact Gel (c-PAGEL, c-PAGEL HR, cp-PAGEL)
Technical Specifications

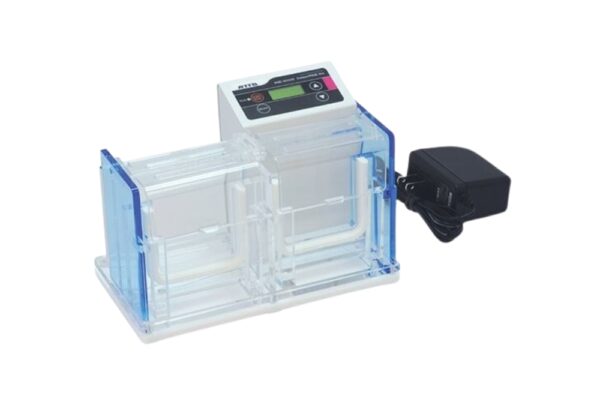

| Plate size | 76 (W) x 70 (H) x 4.8 (D) mm | |
| Gel size | 60 (W) x 60 (H) x 0.75 (D) mm | |
|---|---|---|
| Number of gels | 1 or 2 gels | |
| Buffer volume | 170 mL (45 mL for upper chamber, 125 mL for lower chamber) per 1 gel | |
| Material | Chamber: Acrylic plastic and silicone | |
| Mode | High mode: 24 W / Std mode: 21 mA / Low mode: 10.5 mA | |
| Power | AC100-240V 50/60 Hz | |
| Dimension | 199 (W) x 108 (D) x 137 (H) mm (Without accessories and projection) | |
| Weight | 0.9 kg (without accessories) | |
| Component | Main unit, AC adaptor, Cable extension | |
| View the entire technical specifications in the brochure. | ||
Applications
- Separation of Protein, purity determination, estimation of purified product, and expressed protein
- Screening, Protein or Nucleic Acid electrophoresis for entry-level experiments and students
- SDS-PAGE, nativePAGE, DNA-PAGE
Visit the brochure to find out more about the application.
Key Features
- The fastest electrophoresis time: 10 min (High mode)
- The system’s built in power supply
- Compact size, Reduce working space
- Easy operation with precast running condition
- Available for both the precast gel and hand-made gel
- Cut the amount of buffer and reagent
- Compatible caster: AE-7310 Compact Gel Cast, WSE-1090 Multi Compact Gel Cast
- Compatible precast gel: ATTO Precast Compact Gel (c-PAGEL, c-PAGEL HR, cp-PAGEL)
Technical Specifications

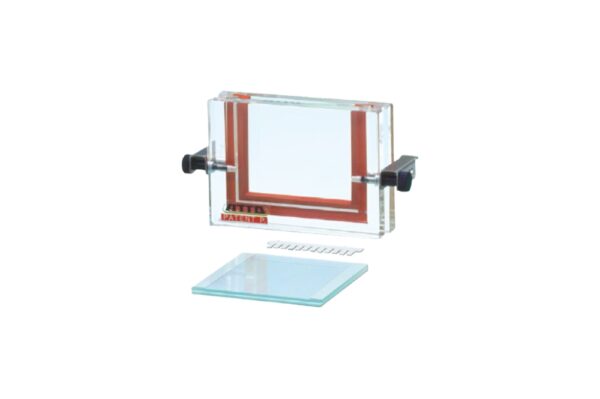

| Plate size | 76 (W) x 70 (H) x 4.8 (D) mm | |
| Gel size | 60 (W) x 60 (H) x 0.75 (D) mm | |
|---|---|---|
| Number of gels | 1 gel | |
| Material | Gel caster (Acrylic, Silicone, Stainless steel, Aluminium), Plate (Glass) | |
| Dimension | 93 (W) x 45 (D) x 75 (H) mm (Main unit only) | |
| Weight | 0.2 kg (Main unit only) | |
| Component | Main unit, Notched glass plate for AE-7310/WSE-1090 1ea, Plain glass plate for AE-7310/WSE-1090 1 ea, 12-well compact comb for AE-7310/WSE-1090 1 ea | |
| View the entire technical specifications in the brochure. | ||
Applications
- Gel casting kit for compact size (60 x 60 mm, thickness 0.75 mm) slab gel
Visit the brochure to find out more about the application.
Key Features
- Easy setting; piling plates and fixing by clips
- Compatible electrophoresis apparatus: ATTO Compact Gel Electrophoresis System (WSE-1010 cPAGE Ace, WSE-1025 cPAGE Ace Twin)
- Gel casting kit for compact size: 60 x 60 mm, thickness 0.75 mm
- Max 4 Mini-Slab gels caster
Technical Specifications
| Plate size | 100~120 (W) x max. 102 (H) mm, maximum thickness 7 mm | |
| Gel size | 1 or 2 gels | |
|---|---|---|
| Buffer volume | 400~650 mL | |
| Material | Acrylic (Chamber), Poly-carbonate, silicone | |
| Unit size, weight | 165 (W) x 99 (D) x 134 (H) mm, 0.9 kg (without accessory) | |
| Component | Main chamber x 1 (including leads with safety cover), H holder x 2, 5 mm dummy plate x 1 | |
| View the entire technical specifications in the brochure. | ||
Applications
- High-speed electrophoresis: 20-25min (For high-speed electrophoresis, use [WSE-7065 EzRunMOPS])
- SDS-PAGE（SDS-Polyacrylamide Gel Electrophoresis）
- Native-PAGE
- High-resolution separation of protein and nucleic acid
- Purity determination, Estimation of purified product, and expressed protein
- Screening
- For beginners of electrophoresis and students training
Visit the brochure to find out more about the application.
Key Features
- mini PAGE system with a built-in power supply
- High mode
- Reduce working space
- Automatic polarity switching function
- Quick sealing method
- Prevent leakage of a buffer solution with flexible material in a special wave shape; electrophoresis plate and gel are firmly retained
- Two-sided constant temperature by using a lower buffer solution for reducing the thermostatic smiling
- Compatible caster: AE-6401 1 mm Dual Mini Gel Cast (Holder for Hand-Cast Gel), WSE-1190 Multi Mini-Slab Gel Cast (Holder for PAGEL)
- Compatible precast gel (Holder for PAGEL): e-PAGEL, e-PAGEL HR
Technical Specifications
| Models | WSE-1150M | WSE-1150P | |
| Plate size | For Hand-made gel 120 (W) x 102 (H) x 7 (D) mm | For Precast gel (PAGEL series) 120 (W) x 100 (H) x 5 (D) mm | |
|---|---|---|---|
| Gel size | 90 (W) x 80 (H) x 1 (D) mm | 90 M x 83 (H) x 1 (D) mm | |
| Number of gels | Up to 2 gels | Up to 2 gels | |
| Plate setting | One-touch sealing | One-touch sealing | |
| Buffer volume | Upper: 80 mL, Lower: 420 mL | Upper: 80 mL, Lower: 420 mL | |
| Power supply | 100~240 V, 50/60 Hz, 50VA | 100~240 V, 50/60 Hz, 50VA | |
| Polarity | Automatic polarity switching function (Always lower electrode is anode (+) whichever side the power supply unit is connected) | Automatic polarity switching function (Always lower electrode is anode (+) whichever side the power supply unit is connected) | |
| Output mode | Standard mode: 1 gel / 2 gels High mode: 1 gel / 2 gels Low mode: 1 gel / 2 gels | Standard mode: 1 gel / 2 gels High mode: 1 gel / 2 gels Low mode: 1 gel / 2 gels | |
| AC adapter | Input: 100-240 V, Output: 24 VDC/1.5A | Input: 100-240 V, Output: 24 VDC/1.5A | |
| Composition | Hand-Cast Gel type chamber 1 ea, Power supply 1 ea, AC adapter 1ea. 7 mm dummy plate 1 ea | PAGEL type chamber 1 ea, Power supply 1 ea, AC adapter 1ea, 5 mm dummy plate 1 ea | |
| Material | Power supply case: ABS Chamber: Polycarbonate, Silicone | Power supply case: ABS Chamber: Polycarbonate, Silicone | |
| Dimension | 164 (W) x 94 (D) x 193 (H) mm (Without power supply and AC adapter) | 164 (W) x 94 (D) x 193 (H) mm (Without power supply and AC adapter) | |
| Weight | 0.74 kg (Without AC adapter and plates) | 0.74 kg (Without AC adapter and plates) | |
| View the entire technical specifications in the brochure. | |||
Applications
- High-speed electrophoresis: 20-25min (For high-speed electrophoresis, use [WSE-7065 EzRunMOPS])
- SDS-PAGE（SDS-Polyacrylamide Gel Electrophoresis）
- Native-PAGE
- High-resolution separation of protein and nucleic acid
- Purity determination, Estimation of purified product, and expressed protein
- Screening
- For beginners of electrophoresis and students training
Visit the brochure to find out more about the application.
Key Features
- mini PAGE system with a built-in power supply
- High mode
- Reduce working space
- Automatic polarity switching function
- Quick sealing method
- Prevent leakage of a buffer solution with flexible material in a special wave shape; electrophoresis plate and gel are firmly retained
- Two-sided constant temperature by using a lower buffer solution for reducing the thermostatic smiling
- Compatible caster: AE-6401 1 mm Dual Mini Gel Cast (Holder for Hand-Cast Gel), WSE-1190 Multi Mini-Slab Gel Cast (Holder for PAGEL)
- Compatible precast gel (Holder for PAGEL): e-PAGEL, e-PAGEL HR
Technical Specifications
| Plate size | 120 (W) x 102 (H) mm, total thickness 7 mm | |
| Gel size | 90 (W) x 80 (H), thickness 1 mm | |
|---|---|---|
| Number of gels | Up to 2 plates | |
| Sample comb | 12-well comb (Well 4.5 mm wide, about 30 uL/well), 1 mm thickness, PP molding | |
| Material | Glass, Silicone, Polypropylene, Polyvinyl chloride, Stainless steel | |
| Dimension | 140 (W) x 15 (D) x 110 (H) mm (When it is assembled) | |
| Weight | 0.54 kg (2 sets total) | |
| Component | 1 mm Notched glass plate 2 ea, Plain glass plate 2 ea, 1 mm gasket 2 ea, Clip 4 ea, 1 mm 12-well comb 2 ea | |
| View the entire technical specifications in the brochure. | ||
Applications
- Gel caster for ATTO Mini size gel
- Available for hand-made gel casting of electrophoresis in the below
- SDS-PAGE
- nativePAGE
- Separation of Protein, purity determination, estimation of purified product, and expressed protein
- Examination of purified product and expressed proteins
- DNA electrophoresis, Detection of PCR products
- Screening
- Experimental training for students or researchers
- Determination of enzyme form
Visit the brochure to find out more about the application.
Key Features
- Easy setting with specially designed seal gaskets and clips
- Compatible electrophoresis apparatus: ATTO Mini Gel Size Electrophoresis System (WSE-1150M PageRunAce, WSE-1165 Mini-Slab)
This gel cast includes plates whose total thickness is 7 mm, so a Plate holders for Hand-Cast Gel is required.
Technical Specifications
| Plate size | 120 (W) x 100 (H) mm, Total thickness 5 mm | |
| Gel size | 90 (W) x 83 (H) mm, thickness 1 mm | |
|---|---|---|
| Number of gels | up to 4 gels | |
| Sample comb | 12-well comb (Well 4.5 mm wide, about 30 uL/well), 1 mm thickness, PP molding | |
| Material | Main body (Acrylic, silicone, stainless steel, aluminium), Plate (glass) | |
| Dimension | 176 (W) x 45 (D) x 129 (H) mm | |
| Weight | 0.65 kg (main body only) | |
| Component | Gel cast main body 1 ea, glass plates 4 set (Notched plate 4 ea, Plain plate 4 ea), 12-well comb 4 ea, Dummy plate 1 ea, Spacer plate 6 ea | |
| View the entire technical specifications in the brochure. | ||
Applications
- Up to 4 pieces of Mini-Slab size (90 x 83 mm, thickness 1 mm) gels can be made simultaneously with this gel casting kit
- Available for hand-made gel casting of electrophoresis in the below
- SDS-PAGE
- nativePAGE
- Separation of Protein, purity determination, estimation of purified product, and expressed protein
- Examination of purified product and expressed proteins
- DNA electrophoresis, Detection of PCR products
- Screening
- Experimental training for students or researchers
- Determination of enzyme form
Visit the brochure to find out more about the application.
Key Features
- Easy setting: piling plates in gel caster and fixing by clips
- (Seal gasket is not necessary)
- Max 4 pieces can be made
- Glass plates only for this gel cast are adopted so seal gasket is unnecessary
- Attached to glass plate sets & combs for 4 pieces of gel
- Compatible electrophoresis apparatus: ATTO Mini Gel Size Electrophoresis System (WSE-1150MW PageRunAce, WSE-1165 Mini-Slab)
This gel cast includes plates whose total thickness is 5 mm, so Plate holder for PAGEL are required.
Technical Specifications
| Plate size | 160 (W) x 100 (H) mm, thickness 5 mm | |
| Gel size | 140 (W) x 80 (H) mm, thickness 1 mm | |
|---|---|---|
| Number of gels | Up to 2 gels, 30 samples/gel | |
| Sample apply | Max 20 uL/well, multi pipette available | |
| Plate setting | Press a ‘H’ holder | |
| Buffer volume | Total 900 mL (Max) | |
| Chamber polarity | Auto switching polarity (Bottom electrode is automatically to be anode(+) without failing by miss-connecting of electrodes) | |
| Safety | Power lead cable with safety cover | |
| Material | Acrylic. Silicone | |
| Component | Chamber ” ea Power lead cable with safety cover 1 ea. “H’ holder 2 ea. 5 mm thickness dummy plate 1 ea | |
| Unit size | 204 W x 99 (D) x 130 (H) mm, exclude a projection | |
| Weight | 0.9 kg, excluded a migration plate | |
| View the entire technical specifications in the brochure. | ||
Applications
- A lot of samples(30) can be analyzed in one gel at once by electrophoresis
- SDS-PAGE（SDS-polyacrylamide gel electrophoresis）
- Non-denaturing polyacrylamide gel electrophoresis
- Protein・Separation・Identification, Purity confirmation Molecular weight estimation, etc.
- Confirm the Purifies and the expression levels of protein
- Electrophoresis of DNA, confirmation of PCR products
Visit the brochure to find out more about the application.
Key Features
- Many Samples Available:
Electrophoresis for large-scale screening.
Comparable to many samples in one gel at once under the same experimental condition.
- Faster and Higher-Resolution Electrophoresis:
“High mode electrophoresis” completes in 30 minutes (300V c.v.).
Recommended to use e-PAGEL HR or hand-made gel with ATTO EzGel Ace buffer and ATTO EzRunMOPS buffer.
- Usable with Multi-channel Pipette:
Sample well intervals are 4.5mm pitch, suitable for Multi-channel Pipette usage.
- Gel Length:
Same as mini gel (approx. 8cm).
Comparable electrophoresis pattern to mini gel.
Sufficient gel length ensures precise protein band patterns.
- Constant Temperature Maintenance:
Plenty of upper/lower buffer maintains constant temperature, reducing the smiling effect.
- Auto Switching Polarity:
Bottom electrode automatically switches to anode(+), preventing failure due to misconnection of electrodes.
- Easy Sample Application:
Visible electrophoresis tank (Front open view).
- Easy Gel Plate Set-up:
Special plate holder ‘H’ holder facilitates stress-free setting of glass plates into the chamber.
- Well-Shaped “Perfect Seal Packing”:
Prevents buffer leaking with softness and compactness.
- High-Quality Durable Acrylic Material:
RI blocking effect.
- Compatibility:
Compatible caster: WSE-1195 Multi Mini-Slab Gel Cast.
Compatible precast gel: m-PAGEL.
Technical Specifications
| Plate size | 160 (W) x 100 (H) mm, Total thickness 5 mm | |
| Gel size | 140 (W) x 80 (H) mm, thickness 1 mm | |
|---|---|---|
| Number of gels | up to 4 gels | |
| Sample comb | 30-well comb (Well 3 mm wide, about 20 uL/well), 1 mm thickness, PP molding | |
| Material | Main body (Acrylic, silicone, stainless steel, aluminium), Plate (glass) | |
| Dimension | 197 (W) x 45 (D) x 129 (H) mm | |
| Weight | 0.7 kg (main body only) | |
| Component | Gel cast main body 1 ea, glass plates 2 set (Notched plate 2 ea, Plain plate 2 ea), 30-well comb 2 ea, Dummy plate 1 ea, Spacer plate 6 ea | |
| View the entire technical specifications in the brochure. | ||
Applications
- Up to 4 pieces of Wide-Slab size (140 x 80 mm, thickness 1 mm) gels can be made simultaneously with this gel casting kit
- Available for hand-made gel casting of electrophoresis in the below
- SDS-PAGE
- nativePAGE
- Separation of Protein, purity determination, estimation of purified product, and expressed protein
- Examination of purified product and expressed proteins
- DNA electrophoresis, Detection of PCR products
- Screening
- Experimental training for students or researchers
- Determination of enzyme form
Visit the brochure to find out more about the application.
Key Features
- Easy Setup:
Plates can be piled in the gel caster and secured with clips.
No seal gasket required.
- Maximum Capacity:
Can accommodate up to 4 pieces.
- Glass Plates:
Exclusively uses glass plates, eliminating the need for a seal gasket.
- Included Accessories:
Comes with glass plate sets & combs for 2 pieces of gel.
Additional plates and combs needed to produce 4 gels simultaneously.
- Compatibility:
Compatible with the ATTO Wide Gel Electrophoresis System (WSE-1170 Multi-Lane Gel Chamber).
Technical Specifications
| Plate size | 160 (W) x 160 (H) mm, thickness 10.5-12 mm | |
| Gel size | 138 (W) x 130 (H) mm, thickness 0.5-2 mm | |
|---|---|---|
| Number of gels | Up to 2 gels | |
| Plate setting | With pressure platen | |
| Temperature control | Single face | |
| Buffer volume | 480 mL for upper chamber, 450 mL for lower chamber | |
| Cover lid | Safety lid with lead wires | |
| Weight | 0.7 kg (main body only) | |
| Material | Acrylic plastic and stainless steel | |
| Composition | Electrophoresis chamber 1 ea, Pressure platen 2 ea, safety lid with lead wires 1 ea, dummy plate 1 ea | |
| Dimenstions | 211 (W) x 196 (D) x 205 (H) mm | |
| Weight | 2.3 kg (without accessories) | |
| View the entire technical specifications in the brochure. | ||
Applications
- Protein separation & identification, determination of purity, estimation of molecular weight
- Examination of purified product and expressed proteins
- Determination of enzyme form
- SDS-PAGE, nativePAGE
- DNA-PAGE
Visit the brochure to find out more about the application.
Key Features
- Simple specifications, so samples are easily seen during addition and it is always clean since cleaning is easy
- Safe operation with a safety cover with lead wire without using metal clips
- Various combs are available
- Dual gel system
- Compatible caster: AE-6210 Slab Gel Cast
Technical Specifications
| Plate size | 160 (W) x 160 (H) mm. Total thickness 11 mm | |
| Gel size | 138 (W) x 130 (H) mm, thickness 1 mm or 2 mm | |
|---|---|---|
| Number of gels | 1 gel | |
| Sample comb | 12-well comb | |
| Materials | Acrylic, Stainless steel, Glass, Silicone | |
| Dimenstions | 250 (W) x 150 (D) x 80 (H) mm (main body only) | |
| Weight | 1 kg (Main body only) | |
| Component | Gel cast main body 1 ea, Notched plate 1 ea, Plain plate ea. Seal gasket 1 ea. 12-well comb 1 ea | |
| View the entire technical specifications in the brochure. | ||
Applications
- Gel casting kit for Slab size (138 x 130 mm, thickness 1 mm or 2 mm) gel
Visit the brochure to find out more about the application.
Key Features
- Easy setting with specially designed parts and seal gasket
- Easy assembly by putting a pair of glass plates and a sealing gasket together in the set position
- Even a beginner can hand cast a gel without leaking or drain
- Ready to cast a gel of 1 to 2.0 mm thickness
- Compatible electrophoresis apparatus: ATTO Slab Gel Electrophoresis System (AE-6220 Dual Slab Chamber)
| Column size | 7 mm x 75 mm (for compact size) / (7 mm x 100 mm (for mini size) | |
| Number of gels | up to 8 gels | |
|---|---|---|
| Plate setting | with silicone cap sealing | |
| Buffer volume | 40 mL for upper chamber, 550 mL for lower chamber | |
| Power supply | Constant voltage 50/100/300/600/900 V step-up Constant voltage 300/600/900 V constant mode (selected below, programmed) Constant current 12 mA | |
| Timer | 1 to 999 min, 0 min for continuous mode | |
| Safety function | open/short detection | |
| Alarm | output stop, time up, error detection | |
| Power requirement | AC100-240 V 50/60Hz 50VA | |
| Dimenstions | 164 (W x 94 (D) x 193 (H) mm | |
| Weight | 0.81 kg (without accessories) | |
| View the entire technical specifications in the brochure. | ||
Applications
- 1-D electrophoresis(IEF) for 2-D PAGE
- For proteome analysis (proteomics), purification product confirmation, and protein separation for mass spectrometry
Visit the brochure to find out more about the application.
Key Features
- Two-dimensional electrophoresis can be done easily with the use of a version with a power source (electricity conditions entered) and “agarGEL” precast gel and a high level of reproducibility can be obtained 150-210 min. quick electrophoresis time
- Reduce working space.
- Agarose gel specifications allow the addition of a sample with a large molecular weight or volume O’Farrell’s specifications also supported
- With a special gel tray and gel carrier
WSE-1010W
WSE-1025W
Key Industries
- Biopharmaceutical and Biotechnology
- Education & Academics
- Medical
- Pharmaceutical
ATTO Corporation is a scientific instrument developer and manufacturer of protein/nucleic acid research. Long been providing more than 60 years…
