AMADA – Welding Accessories
A successful resistance spot welding process generally requires a welding power supply, a spot welding head, and a weld monitor or weld checker. Selecting the right accessories for these critical components can enhance and improve your results, and provide additional safety for your operators.
Available Models
Technical Specifications
| Rating | THP | PHP | HFP | GHP | HDHP |
|---|---|---|---|---|---|
| DC (watt seconds) | 125 | 125 | 500 | 125 | 500 |
| AC (KVA-1/2 cycle) | 2 | 2 | 7.5 | 2 | 10 |
| Force range (Min – Max) | 1 lbs – 7 lbs | 1 lbs – 7 lbs | 3 lbs – 25 lbs | N/A | N/A |
| Cable size (AWG) | #2 or #6 | #2 or #6 | #2 | #2 or #6 | #2 |
| Cable length | 4 ft or 10 ft | 4 ft or 10 ft | 5 ft or 10 ft | 4 ft or 10 ft | 7 ft |
| Electrode series | ET0400 | EP0400 or EP0400 | EP0800 and EP0800 | EP0800 | EP0900 |
GHP Handpiece
The Model GHP handpiece is trigger fired and used to weld or tack materials that don’t require stringent force control.
Handpieces are available with either 4-foot or 10-foot long cables. As a general rule, the energy delivered to the workpiece with 10- foot #6 cables will be approximately 15% of that delivered with 4-foot #6 cables. Handpieces are furnished with cables, as indicated in the following table, and one pair of RWMA electrodes.
HDHP Heavy Duty Handpiece
The Model HDHP handpiece is switch fired and used to weld or tack materials that don’t require stringent force control.
Handpiece comes with 7-foot long cables. Handpieces are furnished with cables, as indicated in the following table, and one pair of RWMA electrodes.
HFP High Force Handpiece
The HFP Handpiece comes with 5-foot long cables. Handpieces are furnished with cables, as indicated in the following table, and one pair of RWMA electrodes.
PHP Probe Handpiece
The Model PHP handpiece is used to weld small parts which require less than 125 watt-seconds or 1/2 cycle AC, and welding forces less than 7 pounds.
Handpieces are available with either 4-foot or 10-foot long cables. As a general rule, the energy delivered to the workpiece with 10- foot #6 cables will be approximately 15% of that delivered with 4-foot #6 cables. Handpieces are furnished with cables, as indicated in the following table, and one pair of RWMA electrodes.
THP Tweezer Handpiece
The Model THP tweezer weld handpiece is used to weld small parts which require less than 125 watt-seconds or 1/2 cycle AC, and welding forces less than 7 pounds.
Tweezer weld handpieces are available with either 4-foot or 10-foot long cables. As a general rule, the energy delivered to the workpiece with 10- foot #6 cables will be approximately 15% of that delivered with 4-foot #6 cables. Tweezer weld handpieces are furnished with cables, as indicated in the following table, and one pair of RWMA electrodes.
VBTWK/115 – Ball Tacking Kit
This ball tacking kit is designed for aerospace and general industry applications where precise placement of stainless steel, Inconel, and other metal balls is desired.
Typically used with GHP or HFP handpiece and a CD-A125A or CD-A300A CD welding power supply.

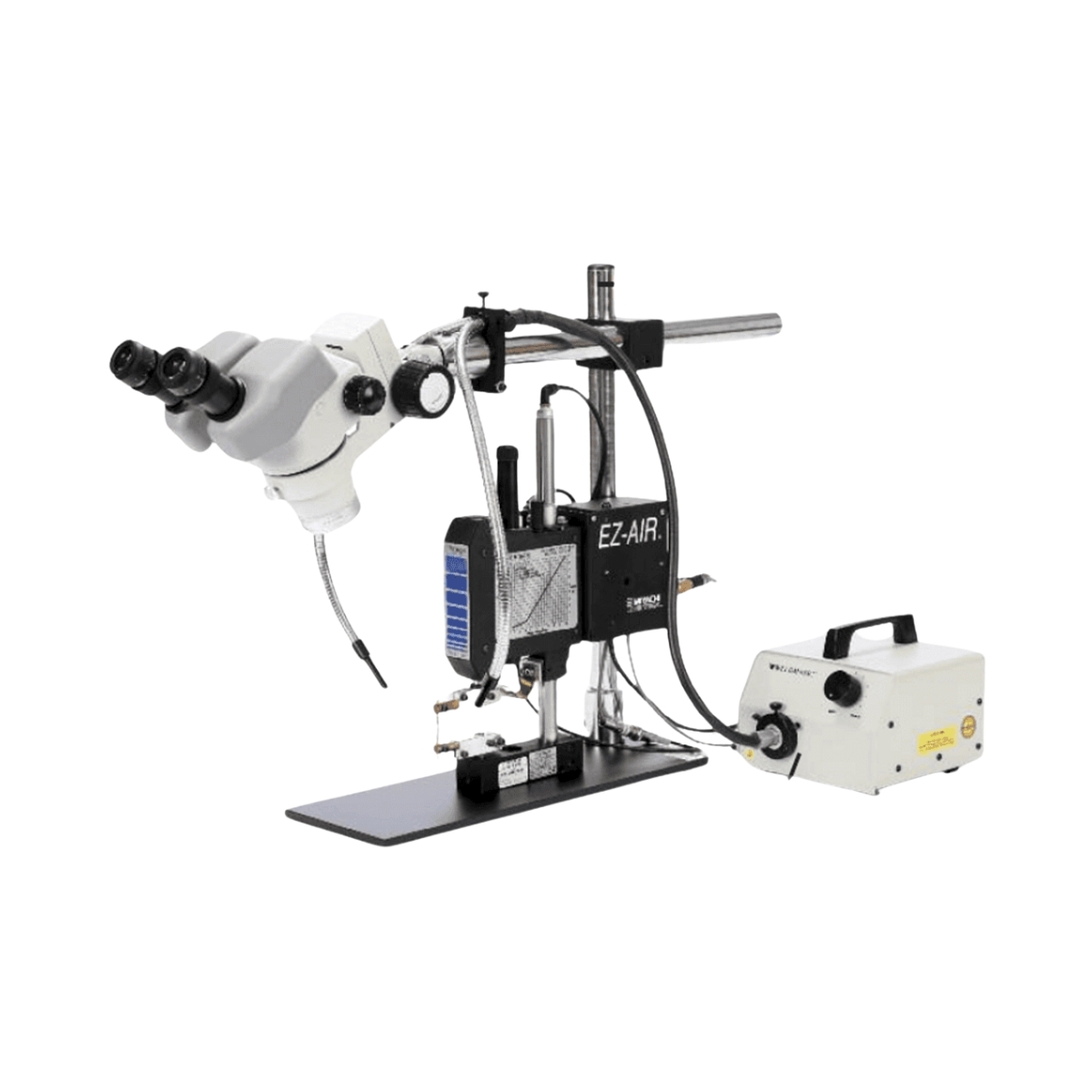

The Model SMZ-660 Stereo Zoom Optic Pod (1) is supplied with 10X Eyepieces and a 0.5X Objective Lens. It provides magnification which is adjustable from 4.0-25X and a working distance of 211 mm. Its lightweight housing is airtight, anti-mold and anti-electrostatic. It includes the C-Bonder Arm and is compatible with any Model 50 or 80 Series welding head.
The Model OMA optic mounting assembly (2) provides the posts and hardware required to support the optic pod. The Model BPTL, Thin-Line base plate (3) is drilled to accept all 80 Series Thin-Line weld heads and the optic mounting assembly. The base plate is 6 inches wide x 14-7/8 in deep x 1/4 in (15.2 cm x 37.8 cm x 6.3 mm). The BLFOI fiber optic illuminator system (4) transmits light through bifurcated, fiber optic light guides to produce cool, flicker-free, high-intensity light at the worksite. The Model BLFOI operates at 115 volts, 50/60 Hz. Specify Model BLFOI/230 for operation at 230 volts, 50/60Hz.
The Model TMMWC (Trinocular Mounted Microscope with Camera) Stereo Zoom Microscope is supplied with 10X Eyepieces and a 0.5X Objective Lens. It provides magnification which is adjustable from 4.0-25X and a working distance of 211 mm. It is available with Mounting Kits for weld heads shown in table below or sold as standalone system using part number 270-607 noted below. It is compatible with most 70 & 80 Series welding heads.
The Model IVSC (Inspection Vision System w/Camera) is a standalone system and contains a Macro video lens on extended post stand with HD Measurement camera and diffused LED ring light. Includes 23 in LCD monitor and Flash Card for saving images.
In many cases, the process is smaller than what the human eye can see, thus magnification is key to properly observing the process results. We offer a range of different magnification devices that can be used to look at the weld to detect small defects. An eye loupe is an indispensable item that can be used for quick observation. To take pictures of the process, portable, USB microscope, desktop stereoscopes, and Trinocular Microscopes are available.
An eye loupe is an indispensable item for quick observation. This pocket sized tool will magnify the process 10x and allows for the first line of inspection.
Technical Specifications
| Kit Number | Description | Applicable weld heads |
|---|---|---|
| 10-430-01 | SMZ-660 Stereo Microscope kit, includes OMA, BPTL and BFLOI, 120 V | 80F,80A/EZ,86,87A/EZ |
| 10-430-02 | SMZ-660 Stereo Microscope kit, includes OMA, BPTL and BFLOI, 230 V | 80F,80A/EZ,86,87A/EZ |
| 10-431-01 | SMZ-660 Stereo Microscope kit, includes OMA, and BFLOI, 120 V | 71 weld head |
| 10-431-02 | SMZ-660 Stereo Microscope kit, includes OMA, and BFLOI, 230 V | 71 weld head |
| 10-432-01 | SMZ-660 Stereo Microscope kit, includes OMA2, and BFLOI, 120 V | 72/180 weld heads |
| 10-432-02 | SMZ-660 Stereo Microscope kit, includes OMA2, and BFLOI, 230 V | 72/180 weld heads |
| 10-440-01* | IVSC, Inspection Station, includes Macro lens, Stand, Ring light, Smart Camera w/measurement tool, 23 in LCD monitor | N/A |
| 10-450-01* | TMMWC-120, Trinocular Micro Scope Kit, includes 1080P HD Camera, 23 in LCD Monitor, OMA, BPTL and BFLOI, 120 V | 80F,80A/EZ,86,87A/EZ |
| 10-450-02* | TMMWC-230, Trinocular Micro Scope Kit, includes 1080P HD Camera, 23 in LCD Monitor, OMA, BPTL and BFLOI, 230 V | 80F,80A/EZ,86,87A/EZ |
| 10-451-01* | TMMWC-120, Trinocular Micro Scope Kit, includes 1080P HD Camera, 23 in LCD Monitor, OMA2, BPTL and BFLOI, 120 V | 72/180 Weld Heads |
| 10-451-02* | TMMWC-120, Trinocular Micro Scope Kit, includes 1080P HD Camera, 23 in LCD Monitor, OMA2, BPTL and BFLOI, 230 V | 72/180 Weld Heads |
| 270-607* | Trinocular Microscope System, includes Trinocualr Stereo Microscope, 0.4x video coupler, 10x eyepieces and 0.5x Objective lens, Focus Mount, 1080P HD camera, 23 in LCD monitor | 50 series weld heads, and any weld head with existing Microscope mount. Requires BFLOI light source |
| 475-549 | Jeweler’s Loupe | N/A |
| 8-453-01 | USB Microscope and Stand | N/A |
*includes image capture software
Technical Specifications
| Part name | Part number | Process |
|---|---|---|
| Fume Extractor-Small | 4-61359-01 | Spot welding |
| Fume Extractor-Large | 720-225 | Fusing, Brazing |
Spot welding, fusing and brazing are all processes that can eject material of various sizes from the part. Fume extractors are necessary to remove harmful airborne particles so that operators and engineers are not exposed. These sometimes toxic fumes need to be collected and properly filtered. Use the table above to identify the best fume extractor for a given process.
Technical Specifications
| Model | Part number | kVA | GPM (STD) |
|---|---|---|---|
| OTC-1.0A Chiller | 4-66736-02 | <100 | 4 |
| OTC-2.0A Chiller | 4-66736-05 | <200 | 7 |
| OTC-5.0A Chiller | 4-66736-07 | <500 | 12 |
| OTC-7.5A Chiller | 4-66736-09 | <500 | 18 |
| Water connector kit, small | 4-69984-01 | ||
| Water connector kit, large | 4-66985-01 |
Water chillers are necessary for cooling higher powered welders. They control the temperature of the water to keep condensation from building when facility water cannot. The following chillers provide the necessary cooling capacity for the approximate kVA Rating running at full power and duty cycle. The table below is a general rule, always consider each circuit in the welding system for required GPM (Gallons Per Minute).
Cold Air Guns use vortex tube technology and filtered compressed air to produce sub-freezing air as low as -30 deg F for numerous industrial spot cooling applications. With no moving parts to wear out, Cold Air Guns require no electricity, just a compressed air source. The Vortex Cold Air Gun System includes a magnetic base and a 5 micron auto-drain compressed air filter. Great for spot cooling when water cooling is not sufficient or available.
- Compressed air pressure: (psig) 80 – 100
- Inlet size: (NPT pipe thread, inches) ¼
- Minimum outlet temperature, deg F: (at 70 deg F inlet air) -10
- Air consumption @ 100 psig: (scfm) 15
- Outlet air flow rate: (scfm) 2 to 15
- Dimensions, inches – overall length: 19 5/8,
- Diameter: 1 ¾, nozzle length: 9
One method to test the strength of a weld is to pull the two joined materials apart. The 200 lb pull tester can be configured for tension or compression testing applications up to 200 lbF (890 N) for laboratory and production needs. The 10-420-01, 200 lbs pull tester comes with motorized test stand, force gauge, and wedge grips. Platform is customizable for specific applications.

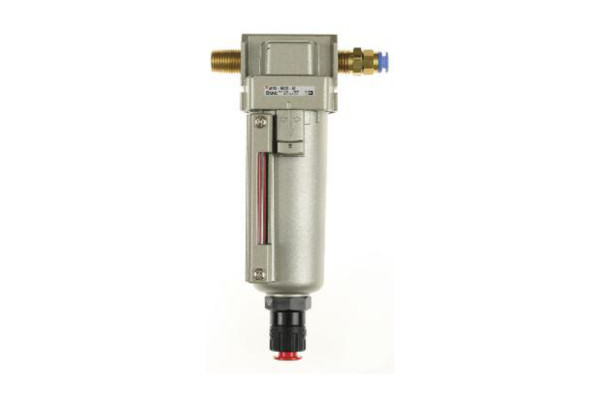

Auto drain air filter, 5 micron element, metal bowl with sight glass, differential pressure indicator, for use with all air actuated weld heads.

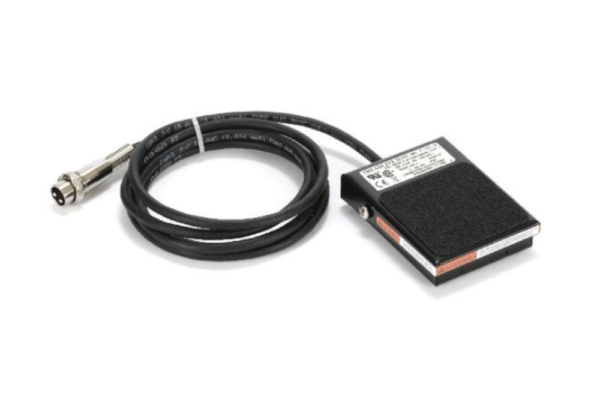

The Model FS2L two-level footswitch is intended for use with all AMADA power supplies. The first level actuates the weld head via the air valve driver of the power supply; the second level, along with the force firing switch in the weld head, initiates the welding current.
The Model FS1L one-level footswitch also may be used with all AMADA power supplies. The single level switch actuates the weld head and initiates the welding current simultaneously (when the firing switch closes).
Single level Firing Switch without safety guard. Used to fire power supplies immediately upon initiation.
The Model CP cable pedal pivots under the heel for optimum force control. It is equipped with an adjustable down-stop which prevents the application of excess force. It is rated at 25 pounds, and can be used with the 50F, 80F, 86F, or 87F Thin-Line™ weld heads.
The Model MSP medium force swing pedal is fully adjustable for length, stroke, angle and left or right-foot operation. It provides a 5-to-1 mechanical advantage and is rated at 100 pounds. It is used with 83F, 84F, 88F, 89F, and 180F Thin-Line weld heads.
Holds Heidenhain type displacement sensors ST-1278 and ST-3078 to Thinline series weld heads as noted.
Highly conductive workpiece materials generally require electrodes of high resistance. Similarly, hard materials require softer, copper-based electrodes. When welding dissimilar materials such as copper and nickel, the normal choice would be a molybdenum electrode against the copper and a GLIDCOP electrode against the nickel.
If stored energy or half-cycle equipment is used to weld dissimilar materials, place the more resistive material against the negative electrode. Likewise, if similar materials with thickness ratios greater than 4:1 are welded, place the thinner material against the negative electrode.
To clean electrode surface and maintain shape, electrodes should be dressed with either 600 or 1000 grit silicon carbide paper, rather than with a file. Refer to page 7 for polishing disks.
Technical Specifications
| Model | Capacity | Scale | Notes |
|---|---|---|---|
| FG20* | 20 lbs | 20 lbs x .2 lb | Serialized |
| FG100* | 100 lbs | 100 lbs x 1 lb | Serialized |
| FG200* | 200 lbs | 200 lbs x 2 lb | Serialized |
| FG10kg* | 10 kg | 10 kg x 0.1 kg | Serialized |
| FG100kg* | 100 kg | 100 kg x 1 kg | Serialized |
*Calibration Certificate models also available
Electrode force gauges are used to establish weld schedules and to calibrate weld heads and handpieces. They are color coded to indicate the usable force range. The accuracy is ±2% of full scale.
GLIDCOP – Dispersion strengthened Copper with 0.15% Aluminum Oxide – 68B Rockwell hardness, 92% conductivity. Longer life, greater thermal stability, higher strength than RWMA 2. Generally interchangeable with RWMA 2 without changing schedules. All AMADA weld heads are supplied with GLIDCOP electrodes.
RWMA 2 – Copper Chromium alloy – 83B Rockwell hardness, 85% conductivity. Used for welding steels, nickel alloys and other high resistance materials.
RWMA 3 – Copper Cobalt Beryllium alloy – 100B Rockwell hardness, 48% conductivity. Used for welding high resistance materials requiring high weld forces.
RWMA 11 – Copper Tungsten alloy 99B Rockwell hardness, 46% conductivity. Usually inserted into an RWMA 2 shank. Used for welding cuprous and precious metals. Used for light projection welding dies.
RWMA 13 – Tungsten – 70A Rockwell hardness, 32% conductivity. Usually inserted into an RWMA 2 shank. Cannot be machined but may be ground to the desired shape. Used to weld non-ferrous metals such as copper and brass.
RWMA 14 – Molybdenum – 90B Rockwell hardness, 31% conductivity. Usually inserted into an RWMA 2 shank. Machineable. Used for welding copper, silver, gold and their alloys.
Technical Specifications
| Model | Material | Face length | Face width | Face depth | Face length |
|---|---|---|---|---|---|
| EU1000 | RWMA2 | 1.125 in | .020 | .030 | .080 |
| EU1002 | RWMA2 | 2 in | .020 | .030 | .080 |
| EU2030M | Copper Clad Moly | 1.125 in | .020 | .030 | .080 |
| EU2030ML | Moly | 2 in | .020 | .030 | .080 |
| EU2537M | Moly | 1.125 in | .025 | .037 | .100 |
| EU2030MR | Moly | 1.125 in | .020 | .030 | .080 |
Unibond electrodes are used for parallel gap bonding and reflow soldering. Generally, RWMA2 copper Unibond electrodes are used with resistive and/or hard materials such as gold plated kovar and nickel. Molybdenum Unibond electrodes are used for bonding conductive or soft materials such as copper or gold. The face of a Unibond electrode is 0.020 in (0.5 mm) wide by 0.030 in (0.75 mm) deep. In unfixtured applications, this limits their use to bonding ribbons (wire) which are at least 0.010 in (0.25 mm) wide because of the limited visibility.
Technical Specifications
| Model | Face width (in) | Face depth (in) | Face gap (in) | Face length (in) | Max force (oz.) | Max force (kgf.) |
|---|---|---|---|---|---|---|
| UTM111L | .009 | .010 | .001 | 025 | 33 | .94 |
| UTM112L | .010 | .010 | .002 | .025 | 33 | .94 |
| UTM152L | .010 | .005 | .002 | .025 | 17 | .47 |
| UTM222L | .018 | .020 | .002 | .050 | 132 | 3.75 |
| UTM237L | 030 | .020 | .007 | .050 | 161 | 4.57 |
| UTM111C | .009 | .010 | .001 | .025 | 33 | .94 |
| UTM112C | .010 | .010 | .002 | .025 | 33 | .94 |
| UTM222C | .018 | .020 | .002 | .050 | 132 | 3.75 |
| UTM224C | .020 | .020 | .004 | .050 | 132 | 3.75 |
| UTM224L | .020 | .020 | .004 | .050 | 132 | 3.75 |
| UTM112CS | .010 | .010 | .002 | .015 | 33 | .94 |
| UTM112LS | .010 | .010 | .002 | .015 | 33 | .94 |
Unitips are electrodes for parallel gap bonding of gold plated kovar, copper, or gold ribbons (wires) which are smaller than 0.010 in (0.25 mm). They are made from two pieces of molybdenum, which are permanently bonded to an insulating spacer. This fixed gap and bonded construction results in a tip which wears uniformly when properly dressed. The length of the Unitip and the flat area on the front allows it to bond ribbons extremely close to the walls of packages as deep as 0.450 in (11.5 mm). The narrower Thinline “L” series Unitips have a tapered profile, enabling them to be used closer to the corners of packages.
Model PD Polishing Disks, 600 and 1000 grit silicon carbide, 1.5 in diameter. Package of 50. 10-031-02, PD-600 10-031-02-01, PD-1000
Model CPD Ceramic Polishing Disks, 1 in square x .025 in thick. Package of 20.
Technical Specifications
| Model | Size |
|---|---|
| KR207 | .002 in x .0065 in x 10 ft |
| KR306 | .002 in x .010 in x 20 ft |
| KR307 | .002 in x .005 in x 20 ft |
| KR310 | .003 in x .010 in x 20 ft |
| KR315 | .003 in x .015 in x 20 ft |
| KR320 | .003 in x .020 in x 20 ft |
Technical Specifications
| Part number | Part name | Description |
|---|---|---|
| 145-025 | 145-025, Nickel Battery Tab .250 in x 1.125 in x .005 in | Nickel 201 |
| 145-026 | 145-026, Nickel Battery Tab .375 in x 1.125 in x .005 in | Nickel 201 |
Other sizes available upon request
Technical Specifications
| Kit | 10-415-01 | 10-416-01 | 10-417-01 | 10-418-01 |
|---|---|---|---|---|
| Includes | Includes 20 lbs force gauge, 1000 grit polishing disc, 10X loupe, safety glasses and various electrodes | Includes 20 lbs force gauge, 1000 grit polishing disc, 10X loupe, safety glasses and various electrodes | Includes 100 lbs force gauge, 600 grit polishing disc, 10X loupe, safety glasses and various electrodes | Includes 100 lbs force gauge, 600 grit polishing disc, 10X loupe, safety glasses and various electrodes |
| Weld head model | 80/71 Series | 88 Series | 180/73 Series | 188 Series |
Starting new welding project can seem daunting at first. Not only do you need to purchase the welding equipment, but also need to consider peripheral equipment to ensure that the process is successful and safe. We have created start-up kits for the different products to help you get started.
Technical Specifications
| Part number | Part name | Description |
|---|---|---|
| 10-377-02 | UB/DC25 Calibration Kit | Calibration kit for UB/DC25, includes shunt, cables and necessary hardware |
| 10-377-03 | UB/DC25 Calibration Kit with Oscilloscope | Calibration kit for UB/DC25, includes oscilloscope, shunt, cables and necessary hardware |
| 10-410-01 | HF25/27 Calibration Kit | Calibration kit for HF25/27, includes shunt, cables and necessary hardware |
| 10-410-02 | HF25/27 Calibration Kit with Oscilloscope | Calibration kit for HF25/27, includes oscilloscope, shunt, cables and necessary hardware |
Calibration of your equipment is essential to maintain proper operation, calibration should be done on an annual basis. These kits include everything needed to calibrate the UB/DC25 or HF25/27 power supplies. Choose the kit with or without oscilloscope depending on your needs.
