YSI – Biochemistry Analyzer – YSI2900 & 2950
The key to generating analyte-specific results in 60 seconds or less is YSI’s innovative biosensor technology. Using the inherent specificity of enzymes for a single target analyte, YSI’s proprietary immobilized enzyme electrodes allow a rapid, accurate, and largely interferencefree measurement to be made in about a minute. The unique fluidics and chamber design resist clogging – even at high cell densities.
Technical Specifications
| YSI2900 Biochemistry Analyzer with up to 1 biosensor module. Measures up to 2 parameters. | YSI 2950D Biochemistry Analyzer with up to 3 biosensor modules. Measures up to 6 parameters. | |
| Benchtop | Yes | Yes |
| Graphic Display | Yes | Yes |
| Parameters Measured | Glucose, Lactate, Glutamate, Glutamine, Glycerol, Xylose, Choline, Hydrogen Peroxide, Sucrose, Ethanol, Methanol, Lactose, Galactose | Glucose, Lactate, Glutamate, Glutamine, Glycerol, Xylose, Choline, Hydrogen Peroxide, Sucrose, Ethanol, Methanol, Lactose, Galactose, Ammonium*, Potassium* |
| Measurement Range | Glucose: 0.05-25 g/L, Lactate: 0.05-2.70 g/L, Glutamate: 15-1460 mg/L, Glutamine: 30-1169 mg/L, Glycerol: 0.75-40 g/L, Xylose: 0.5-30 g/L, Choline: 5-450 mg/L, Hydrogen Peroxide: 3-300 mg/L, Sucrose: 0.1-25 g/L, Ethanol: 0.04-3.2 g/L, Ethanol-HC: 0.5-40 g/L, Methanol: 0.1-2.5 g/L, Lactose: 0.05-25 g/L, Galactose: 0.1-25 g/L | Glucose: 0.05-25 g/L, Lactate: 0.05-2.70 g/L, Glutamate: 15-1460 mg/L, Glutamine: 30-1169 mg/L, Glycerol: 0.75-40 g/L, Xylose: 0.5-30 g/L, Choline: 5-450 mg/L, Hydrogen Peroxide: 3-300 mg/L, Sucrose: 0.1-25 g/L, Ethanol: 0.04-3.2 g/L, Methanol: 0.1-2.5 g/L, Lactose: 0.05-25 g/L, Galactose: 0.1-25 g/L, Ammonium*, Potassium* |
| Memory | Yes | Yes |
| Unit of Measure | mg/dL, mg/L, g/L, %, mmol/L | mg/dL, mg/L, g/L, %, mmol/L |
| Aspirated Sample Volume | User-defined from 10 to 50 μl | User-defined from 10 to 50 μl |
| Analysis Time | 60 seconds | 60 seconds |
| Precision | CV <2% | CV <2% |
| Linearity | 15 to 35°C ambient temperature, 10 to 75% relative humidity | 15 to 35°C ambient temperature, 10 to 75% relative humidity |
| Automation | Up to 96 samples | Up to 96 samples |
| Regulatory Compliance | CE, RoHS, ETL | CE, RoHS, ETL |
| Power | 100-240 VAC, 50-60 Hz | 100-240 VAC, 50-60 Hz |
Available Models
Combining trusted measurement technology with the latest in automated sample handling, the YSI 2900 furthers YSI’s legacy of expertise in the following applications:
- Bioprocess monitoring and control
- Food & beverage processing and QC
- Biofuel production and research
- Medical and sports physiology research
Fully modular and with a range of upgrades available, the YSI 2900 and 2950 feature an intuitive graphical user interface and a touch screen display. This makes 2900 Series analyzers the easiest to use and most cost effective way to measure the following chemistries in a wide range of applications.
The YSI 2900 Series is a flexible, modular platform with a range of configurations, options, and accessories to meet your lab needs. The base platform is the YSI 2900D. Also available is the YSI 2950 platform, configurable with up to 3 sensor modules capable of measuring up to 6 chemistries. Module 3 may be configured for biosensor or ISE measurements.

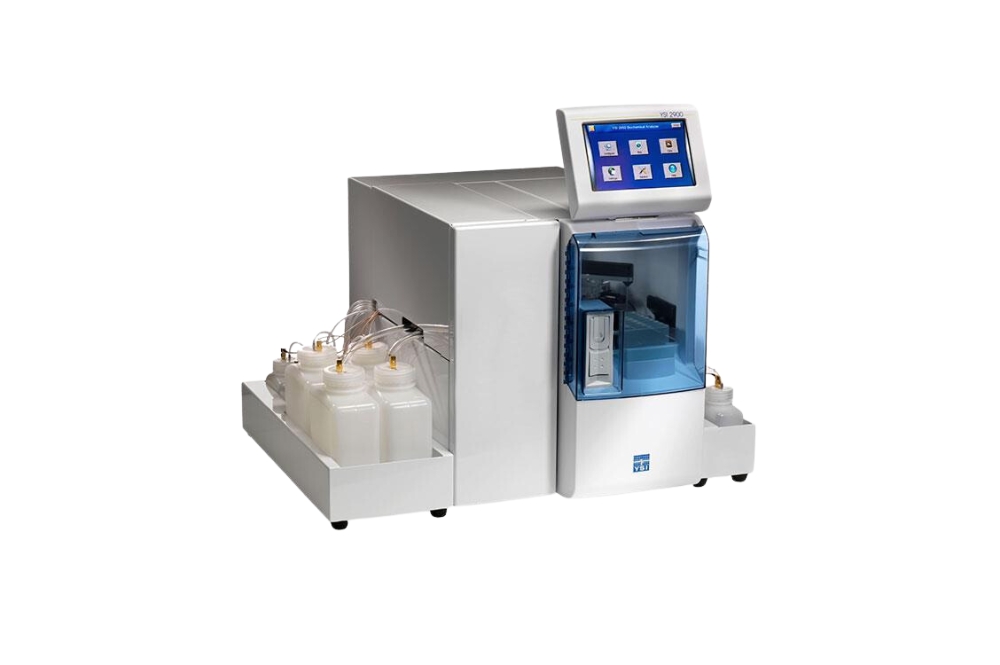

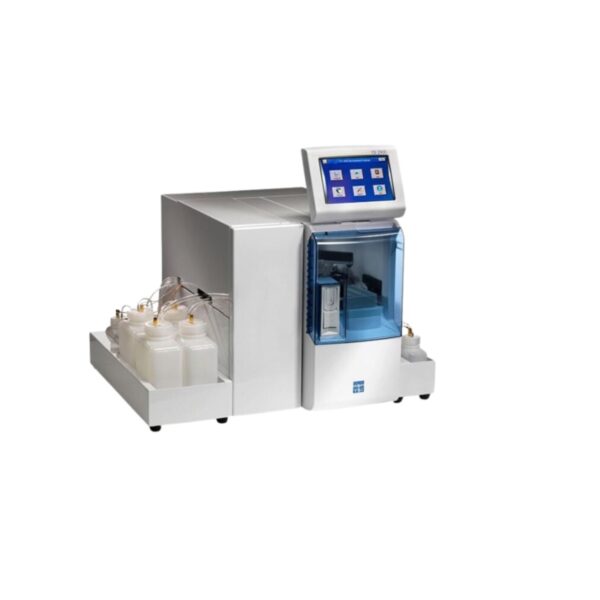

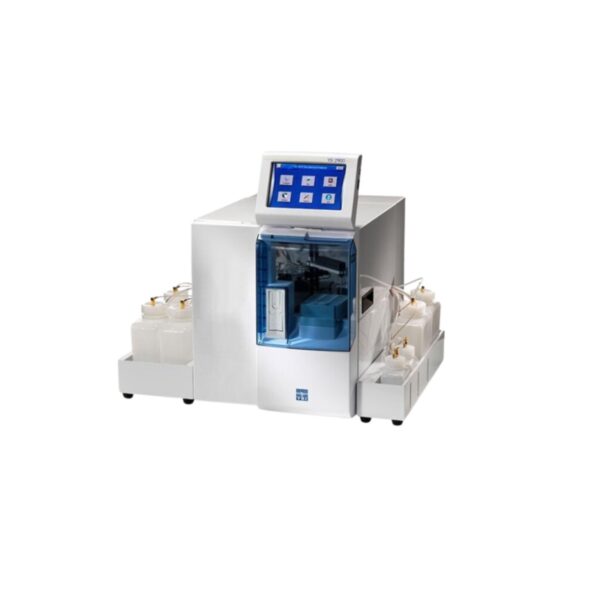

YSI 2900 Biochemistry Analyzer
The new 2900 Biochemistry Analyzer manufactured by YSI, a Xylem brand. Sucrose, glucose, lactose etc. in less than a minute. The newest model, the 2950, incorporates a up to three chemistries via an on-board autosampler.
Key Features
- Multiple sample processing options: Simultaneous high-throughput analysis, stat sampling and online monitoring
- Proprietary Enzyme Electrode: Fast, accurate, and analyte-specific results
- Short, wide aspiration path with proprietary chamber measurement system: Highly resistant to clogging, handles the highest cell counts without pretreatment.
- Uses biological separation technology: No hazardous chromatography solvents to dispose of
- Slim modular design: Easily expand analytes or chemistries, and multiple units use much less bench space.
- Connect with OPC, ethernet, USB, RS232 to computer or other instruments and systems: Ease and flexibility of connectivity.
- Results automatically saved in searchable database: Multiple convenient methods for data retrieval
Applications
- Bioprocess monitoring and control
- Food & beverage processing and QC
- Biofuel production and research
- Medical and sports physiology research
Key Industries
- Biopharmaceutical and Biotechnology
Brand
Founded in 1948, YSI develops and manufactures scientific instruments, sensors and systems that serve a variety of scientific and industrial markets worldwide. YSI has a long history in the life sciences and bioanalytical markets, most notably with our introduction of the world’s first commercial whole blood glucose analyzer in 1975. Today there are over 10,000 YSI instruments installed around the world, trusted in critical situations to provide the most accurate data in the shortest time.
