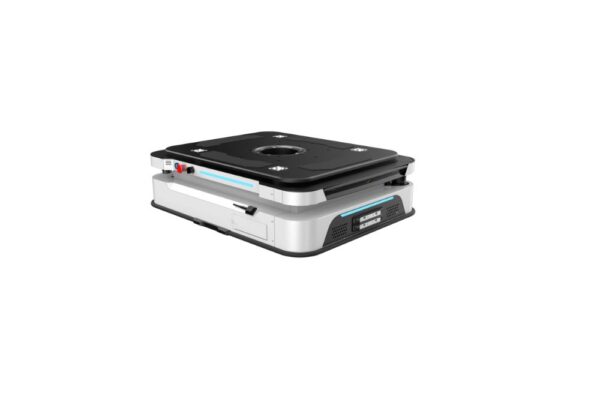

Youibot – Lifting Series – L1000
With a payload of 1000 kg, the L1000 is one of the most powerful autonomous mobile robots (AMRs). Designed to handle the heaviest workload in various facilities, as well as optimize intralogistics efficiency and throughput in warehouses, it automates the movement of goods, racks, and pallets.
The YOUIFLEET management system enables fleet collaboration across up to 1000 AMRs under one system, enabling a true ‘light-out’ operation.
Description
High Payload AMR
L1000 is an autonomous mobile robot designed to improve material handling efficiency in manufacturing. Powered by a 48Ah battery, it lifts loads up to 1000kg with a rotary lifting module. L1000’s 8-hour run time and capability to handle heavy loads boost productivity and facilitate Industry 4.0.
Flexible Deployment for Quick Start-Up
A top-of-the-line robot, the L1000 features a highly integrated control system. It can achieve a high level of accuracy of ±10mm using only SLAM navigation and ±5mm when combining SLAM and QR navigation. With the intelligent control system, small derailments can also be corrected, while the BMS battery control system monitors the battery level in real-time and automatically charges it.
Compact but Powerful Rotating Lifting Module
The L1000 drive chassis remains the same size after the rotary lifting module is integrated. The integrated control system maintains carrier orientation and posture while enabling smooth turns and precise placement in tight spaces. The module also includes a simple and reliable pin design that ensures load stability and prevents falls, as well as a rubber pad on the upper layer that reduces vibration and minimizes material damage.
Technical Specifications
| Lifting Payload | 1000kg |
| Run Time | 8h |
| Size | 1061*838*300mm |
| Navigation Logic | SLAM/QR Code |
| Max. speed | 1.5 m/s No-loaded; 1.0 m/s Full-loaded |
| Rated speed | 1.2 m/s No-loaded; 0.8 m/s Full-loaded |
| Lift parameter | 360° rotation & lifting; Max. Elevation: 60mm |
| Drive model | Two-wheel differential drive |
Key Features
- Real-time human-robot collaboration is enabled by full enclosure security
- Custom audio and lighting for various scenarios with notifications
- Safety bumpers and humane emergency stop designs ensure safety
- An integrated debugging panel facilitates quick troubleshooting
- Stable center of gravity design guarantees goods’ safety during transportation
Benefits
- Navigates dynamic environments efficiently
- Meet the safety standards of the industry with cost-effective AMRs
- Return on Investment is rapid
Youibot Lifting L1000
Key Industries
- Semiconductor, Solar & Electronics
YOUIBOT Robotics is a world-leading mobile robot solution provider. We are proud of our Fusion SLAM navigation mobile robots and…
