Winterhalter – Under Counter Warewashers – UC series / U50
The UC Series of under counter warewashers are available as glass, dish, bistro or cutlery washers in sizes S, M, L and XL. Three standard wash programmes are available that automatically adjust according to the degree of soiling and the type of item being washed. You can tailor the machine even further with additional equipment options.
The U50 is the robust under counter warewasher of the Winterhalter ValueLine that delivers best cleaning results. It is easy to operate coupled with efficient operation and easy maintenance. Additionally, U50 is characterized by reduced noise levels. User can trust in its level of efficiency, hygiene and reliability.
Technical Specifications: UC Series
| UC-S | UC-M | UC-L | UC-XL | |
| Number of programmes | up to 3 | up to 3 | up to 3 | up to 3 |
| Width [mm] | 460 | 600 | 600 | 600 |
| Depth incl.detergent container [mm] | 637 | 637 | 637 | 671 |
| Depth without detergent container [mm] | 617 | 617 | 617 | 651 |
| Depth with open door [mm] | 940 | 940 | 940 | 1068 |
| Height with feet*1 | 725-760 | 725-760 | 820-855 | 820-855 |
| Tank capacity [l] | 9.5 | 15.3 | 15.3 | 15.3 |
| Rack dimensions [mm] | 400 x 400 | 500 x 500 | 500 x 500 | 500 x 500 |
| Rinse water requirement per cycle [l] | 2.4 | 2.4 | 2.4 | 2.4 |
| Tank temperature [°C] | 40-66 | 40-66 | 40-66 | 40-66 |
| Rinse temperature [°C] | 40-85 | 40-85 | 40-85 | 40-85 |
| Circulating pump [kW] | 0.6 | 0.6 | 0.6 | 0.6 |
| Max. water inlet temperature [°C] | 60 | 60 | 60 | 60 |
| Required water flow pressure [bar/kPa] | 1.0 –6.0 / 100– 600 | 1.0 –6.0 / 100– 600 | 1.0 –6.0 / 100– 600 | 1.0 –6.0 / 100– 600 |
| Weight, net/ gross [kg] | 59/68 | 64/74 | 69/79 | 69/79 |
| *1 Adjustable feet enable the vertical dimensions to be raised at need by up to 35mm. | ||||
Available Models
Technical Specifications
| Glasswashers | Dishwashers | Bistro dishwashers | Cutlery washers | |
| Theoretical capacity, washing programmes 1/2/3*1 [racks/hr.] | 22/32/48 | 40/28/24 | 40/32/28 | 11 |
| Short programme [racks/hr.] | 77 | 66 | 66 | 21 |
| Rinse water requirement per cycle*2 [l] | 2.4 | 2.4 | 2.4 | 3.4 |
| Rinse water temperature [°C] | 65 | 85 | 65-85 | 86 |
| Tank temperature [°C] | 62 | 62 | 62 | 69 |
| *1 Customer‘s circumstances (inlet water temperature / electrical connection), may reduce the values stated here. *2 Under ideal conditions. Fine adjustment is done at commissioning. | ||||

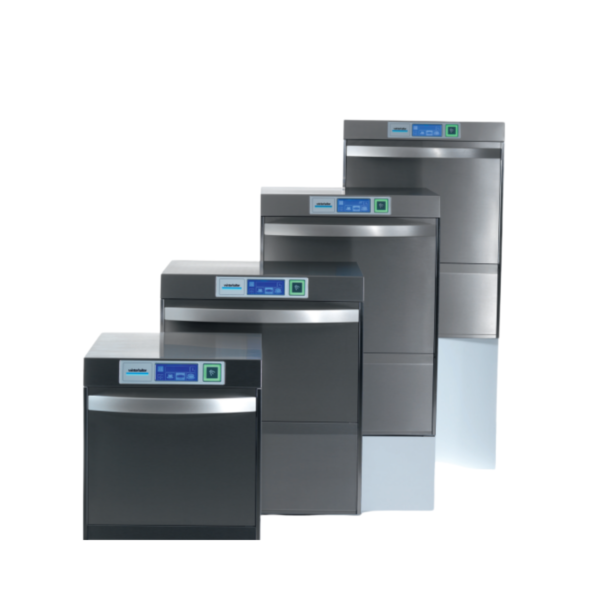

UC Series is the perfect warewashing solution for the counter area. Special defined programmes, adjustable wash components and clear communication platform ensure perfect outcome every wash. Glasswashers, dishwashers, bistro dishwashers and cutlery washers that all come in sizes S, M, L and XL. One must fit your space and purpose.
Key Features
- Transparency and blue light
- Intuitive operation – the touch screen
- VarioPower, the variable pressure control
- Brilliant results without polishing
Technical Specifications
| Number of programmes | 1 |
| Theoretical capacity [racks/ h] | 30 |
| Tank capacity [l] | 18 |
| Rinse water consumption per cycle [l] | 3 |
| Tank temperature [°C] | 62 |
| Rinse temperature [°C] | 85 |
| Circulating pump (P1) [kW] | 0.84 |
| Tank heating [kW] | 2 |
| Boiler heating [kW] | 6 |
| Max. water inlet temperature [°C] | 60 |
| Required water flow pressure for pressure boiler [bar] | 2 |
| Required water flow pressure for non pressurized boiler [bar | 1 |
| Splash quard | IP X3 |
| Weight, net/ gross [kg] | 66 / 71 |

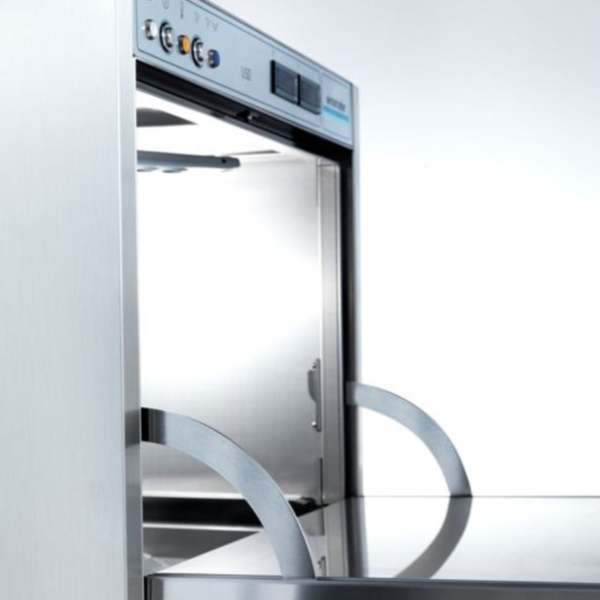

The U50 is a robust undercounter warewasher from the Winterhalter ValueLine that delivers the best cleaning results. It is easy to operate provides with efficient operation and is easy to maintain. U50 is characterised by reduced noise levels. Users can trust in its level of efficiency, hygiene and reliability. This makes the U50 extremely attractive for professionals in search of an economical and practical solution for their growing warewashing needs.
Key Features
- Simple, clear with colour-coded controls made from robust CN-switches
- Self explanatory operation
- Electro mechanical control
- Rotating top and bottom wash system for optimum coverage
- Wash and rinse arms easily removable by hand for cleaning
- Removable rack guides offer better access for cleaning and maintenance
- Full coverage filtration system – less water changes due to cleaner wash water
- Double walled door with solid construction reduces noise and heat emission
Under Counter Warewashers – UC Series
Operating Instructions Winterhalter UC Series
Winterhalter have developed this video to help end users train their staff. We recognise that in some instances they experience high turnovers in staff. This video has been produced as a resource to show new operators how to operate our machines in the most basic way. The video contains information for:
- Start-up process
- Operating process
- Cleaning process
- Closing-down process
- Glasswasher and dishwasher chemicals
