Winterhalter – Single Tank Rack Conveyor – STR series
Optimum power at minimum space.
The STR series of single-tank rack conveyor delivers a high performance and offer a great deal of power in a compact size. STR 200/ STR 260 single-tank rack conveyor dishwasher comes with pre-cleaning zone removes food residue and thus machine performance is increased whilst retaining good wash results.
Technical Specifications
| STR 155 | STR 208 | STR 200 | STR 260 | |
| Theoretical capacity [racks/h] | 100 / 155 | 130 / 208 | 130 / 200 | 170 / 260 |
| Length [mm] | 1,300 | 1,300 | 1600 | 1600 |
| Depth with door closed [mm] | 800 | 800 | 800 | 800 |
| Depth with door open [mm] | 1,472 | 1,472 | 1,472 | 1,472 |
| Height without exhaust air vent [mm] | 1,420 | 1,420 | 1,420 | 1,420 |
| Height with exhaust air vent (outlet area) [mm] Height with Energy [mm] | 1,600 1,890 | 1,600 1,890 | 1,600 1,890 | 1,600 1,890 |
| Working height [mm] | 900 | 900 | 900 | 900 |
| Clear entry height [mm] | 460 | 460 | 460 | 460 |
| Passage width [mm] | 500 | 500 | 500 | 500 |
| Circulating pump [kW] | 1.7 | 1.7 | 2.0 | 2.0 |
| Tank temperature [ºC] | 55-65 | 55-65 | 55-65 | 55-65 |
| Boiler temperature [ºC] | 85 | 85 | 85 | 85 |
| Rinse water consumption (full load)* [l/h] | 260 | 350 | 260 | 350 |
| Minimal water inlet temperature [ºC] | 10 | 30 | 10 | 30 |
| Total connected load (with minimal water inlet temperature) [kW] | 36.7 | 36.7 | 39.0 | 39.0 |
Available Models
The single-tank STR 155/208 rack conveyor dishwasher is high performance and offers a great deal of power in a compact form.
You can chose from two transport speeds according to load size and degree of residue. Well thought out base filtration, in combination with a high performance wash system ensures for perfect wash results.
The machine offers you high performance with up to 155/208 racks per hour in peak times and saves energy in less busy phases thanks to rack controlled zone activation.
Thanks to the additional optional functions you can further optimise your wash process in accordance with your individual needs.
Rely on continual hygienic and sparkling wash results.
The STR 200/260 single-tank rack conveyor dishwasher, with pre-cleaning zone offers, increased capacity of up to 200/260 racks per hour.
Pre-cleaning removes food residue to be filtered by the sieve cassette. Machine performance is increased whilst retaining good wash results.

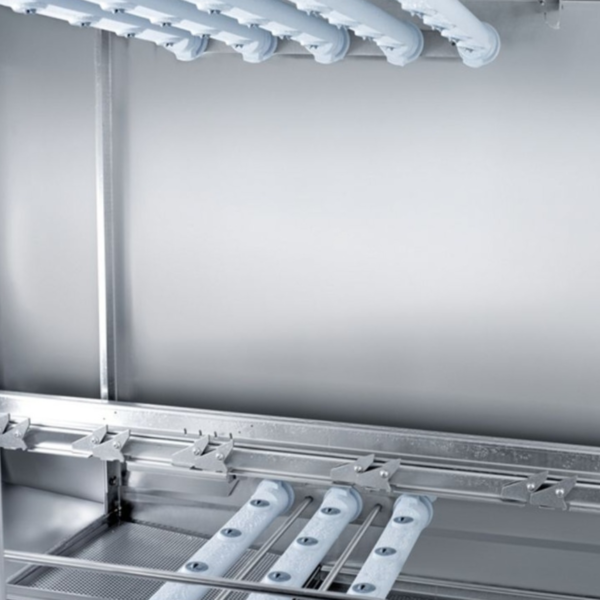

In the main wash zone, a high performance wash system provides perfect wash results. In less busy periods, the rack activated control zone saves energy and operating costs.
Key Features
- Numerous combination options with minimal space requirements
- Adaptable capacity, independent of the degree of soiling and quantity of dishes
- Well-designed warewashing system
- Efficient wash water filtration
- Pre-cleaning zone for stubborn soiling
- Temperature switching for gentle glass washing
- Easy access to the interior of the machine
- Continuous hygiene monitoring
- Reduced consumption of resources
- Lower connection rating thanks to heat recovery
