Winterhalter – Hood-Type Pass-Through Dishwasher – PT Series / P50

Depending on the wash items, available space and individual needs, a choice can be made from the machine models PT-M, PT-L, PT-XL and PT-500.

Key Features

• FIRST-CLASS WASH RESULTS: No matter how stubborn the dirt, the PT Series guarantees certified cleanliness and hygiene. With the powerful warewashing system and the effective quadruple filtration, you are totally prepared for every eventuality.
• ABSOLUTELY RELIABLE: The PT provides exactly what a machine needs for the daily grind of the dishwash area: innovative technology, high-quality workmanship, and low risk errors. A machine you can rely on completely.
• SIMPLE TO USE: The PT makes washing a bit easier: with intuitive and simple operation, ergonomic handling and practical functionality. Your dishwashing staff will enjoy the ease of operation.
• HIGHLY ECONOMIC: Washing with the PT means washing efficiently: with low water consumption, optimised energy use, minimal chemical consumption and digital operation. This means that with the PT your operating costs are minimised.

Available Models

Pass-Through Dishwasher ValueLine P50

Technical Specifications	P50
Number of programmes	2
Tank capacity [l]	28
Rinse water consumption [l/rack]	2.4
Tank temperature [°C]	62
Final rinse temperature [°C]	85
Noise emission [dB(A)]	max. 63
Minimum flow pressure [kPa / bar]	100 / 1.0
Maximum inlet pressure [kPa / bar]	600 / 6.0
Rate of flow [l/min]	min. 4
Packaging dimensions (W x D x H) [mm]	770 x 880 x 1605
Weight, net/ gross [kg]	98 / 123

The ValueLine P50 delivers excellent cleaning results quickly and effectively. It is easy to operate and users can trust in its level of efficiency, hygiene and reliability. This makes the P50 extremely attractive for professionals in search of an economical and practical solution for their growing warewashing needs.

Key Features

• 2 wash programmes
• Thermostop controlled rinse temperature
• Automatic hood start
• Self-cleaning programme
• Rotating top and bottom wash system for optimum coverage
• Triple filtration system ensures extended lifecycle of tank water
• Wash and rinse arms easily removable by hand for cleaning
• Short wash cycle
• Reduced heating time
• Low fresh water consumption

Pass-Through Dishwasher PT-500

Technical Specifications	PT-500
Number of programmes	3
Tank capacity [l]	35
Rinse water consumption per cycle [l]	2.4 / 2.4 / 3.8*2
Tank temperature [°C]	62 / 62 / 66
Rinse water temperature [°C]	85
Dimensions (W x D) [mm]	635 x 750
Height with hood closed [mm]	1,485
Height with hood open [mm]	1,965
Working height [mm]	850
Clear entry height [mm]	440
Rack dimensions [mm]	500 x 500
Required water flow pressure [bar/ kPA]	1.0 – 6.0 / 100– 600
Splash guard	IP X5
Weight, net/ gross [kg]	103 / 128

The entry level model of the PT Series the PT-500 pass-through dishwasher offers reliability solution and impressive cleaning results for your kitchen.

Key Features

• Choice of short, standard and intensive programme, depending on soiling levels
• Reduces the heating time by up to 50%, making the dishwasher ready for operation faster

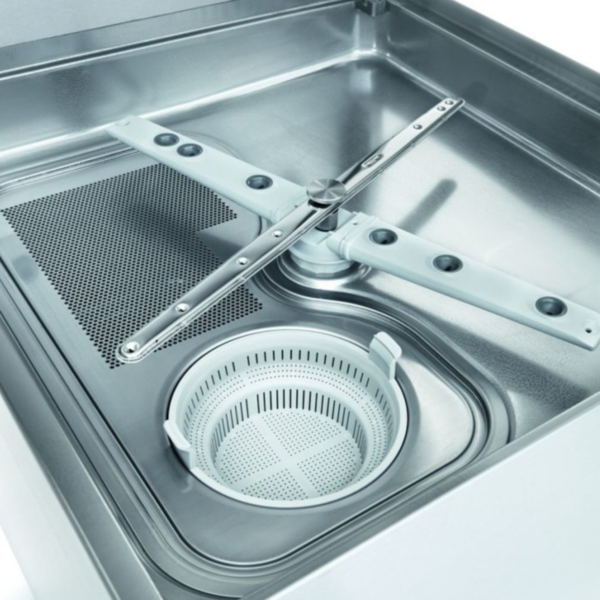

• Food residue is trapped by a removable sieve and strainer
• Fine impurities such as coffee grounds are removed by the centrifugal force of the Mediamat
• The pump is protected against mechanical damage by an inlet filter
• Single-button programme start
• Leak sensor to monitor water leaks

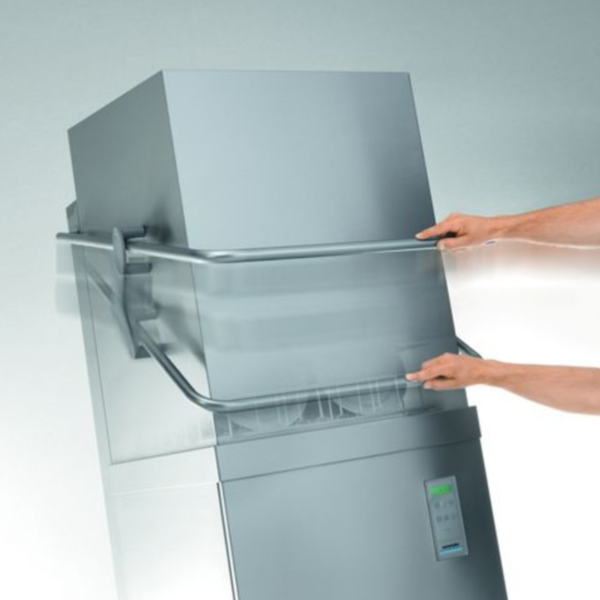

• Ergonomic hood handles and automatic hood start for convenient handling
• Deep-drawn tank, hygienic rear panel and hygienic rack guide as well as a self-cleaning programme make it easy to clean the inside of the dishwasher

Pass-Through Dishwasher PT series

Depending on the application, the compact PT Series is available as a dishwasher, bistro dishwaher, glasswasher or cutlery washer that all come in sizes M, L and XL. The innovative design of the PT Series guarantees top performance for brilliant washing results, offers superior speed and guaranteed economy.

Key Features

• VarioPower
• Reduced wash times and resultant improved rack throughput of up to 28% per hour
• Ready for operation much faster because heatup time is reduced by up to 50%
• Pre-heating of the cold supply water thanks to standard waste water heat exchanger
• Reduction in operating costs by approx. 12%
• Touch screen
• Eye-level display for convenient operation
• Ergonomic cover grips and automatic hood opening (optional for PT-M/PT-L, not available for PT-XL) for greater ease of use
• Deep tank, hygienic rear wall and automatic self-cleaning programme for easy internal cleaning of the machine

Pass-Through Warewashers PT Series

PT-500 User Training – Washing
