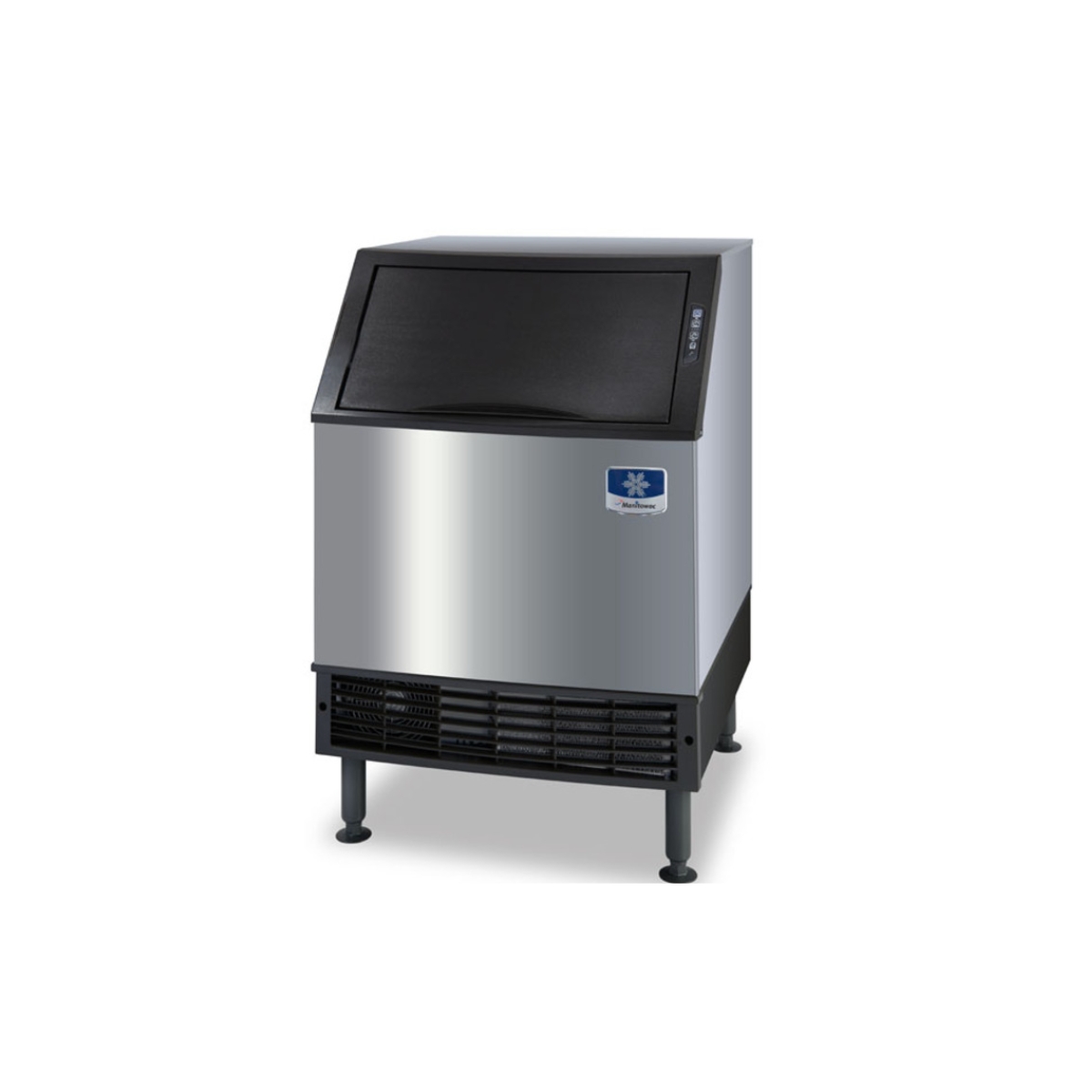

Welbilt – Ice Cube Machines – U (NEO) Series

The Everywhere You Need Ice Machine

Technical Specifications

Model	Ice Shape	Ice Production 24 Hours: 70°Air/50°F Water 21°Air/10°C Water	Ice Production 24 Hours: 90°Air/70°F Water 32°Air/21°C Water	Power kWh/ 100 lbs. @ 90°/70°F 32°/21°C	Potable water usage gal/100 lbs. ice @90/70˚F
U 140	regular/dice/half dice	122 – 132 lbs 59 – 60 kg	90 – 95 lbs 41 – 43 kg	11.1 – 11.3	23.3 – 24.9
U 190	dice/half dice	193 – 198 lbs 88 – 90 kg	140 lbs 64 kg	8.3 – 8.4	21.6 – 23.9
U 240	dice/half dice	201 – 225 lbs 91 – 104 kg	160 – 170 lbs 73 – 78 kg	7.5 – 8.8	21.5 – 23.4
U 310	regular/dice/half dice	271 – 304 lbs 123 – 138 kg	226 – 250 lbs 103 – 114 kg	6.1 – 8.3	23.5

Key Features

A New Level of Performance

Enhanced production capacities make NEO™ the new standard in undercounter ice machines. NEO delivers up to 40 lbs.* more ice over a 24-hour period as our previous models but keeps the same compact footprint. Plus, NEO outperforms in energy conservation as well with more ENERGY STAR® qualified models than ever before.

*Results vary depending on model

A New Level of Intelligence

Universally recognizable display icons that speak your language, whatever language you speak. Power, Delay, Cleaning, Bin Full and Service buttons provide on-the-spot feedback from your ice machine.

Bright, easy-to-read indicators and buttons are illuminated by long-life LED lights and are ideally placed on a slanted bin front for easy viewing and activation—no bending required!

A New Level of Convenience

With its removable bin and low profile construction, NEO™ fits just about anywhere you need it to be. In addition to increased performance and intelligence, NEO undercounter ice machines deliver a better standard of cleanability, ergonomics, sanitation, and serviceability.

A New Level of Serviceability

You don’t become a Best in Class ice machine without great service. NEO™ delivers here too, with a removable bin that makes it easy to perform service without moving the machine. Well-designed modular construction makes NEO ice machine much easier and faster to service—less money out of your pocket especially after the warranty expires.
