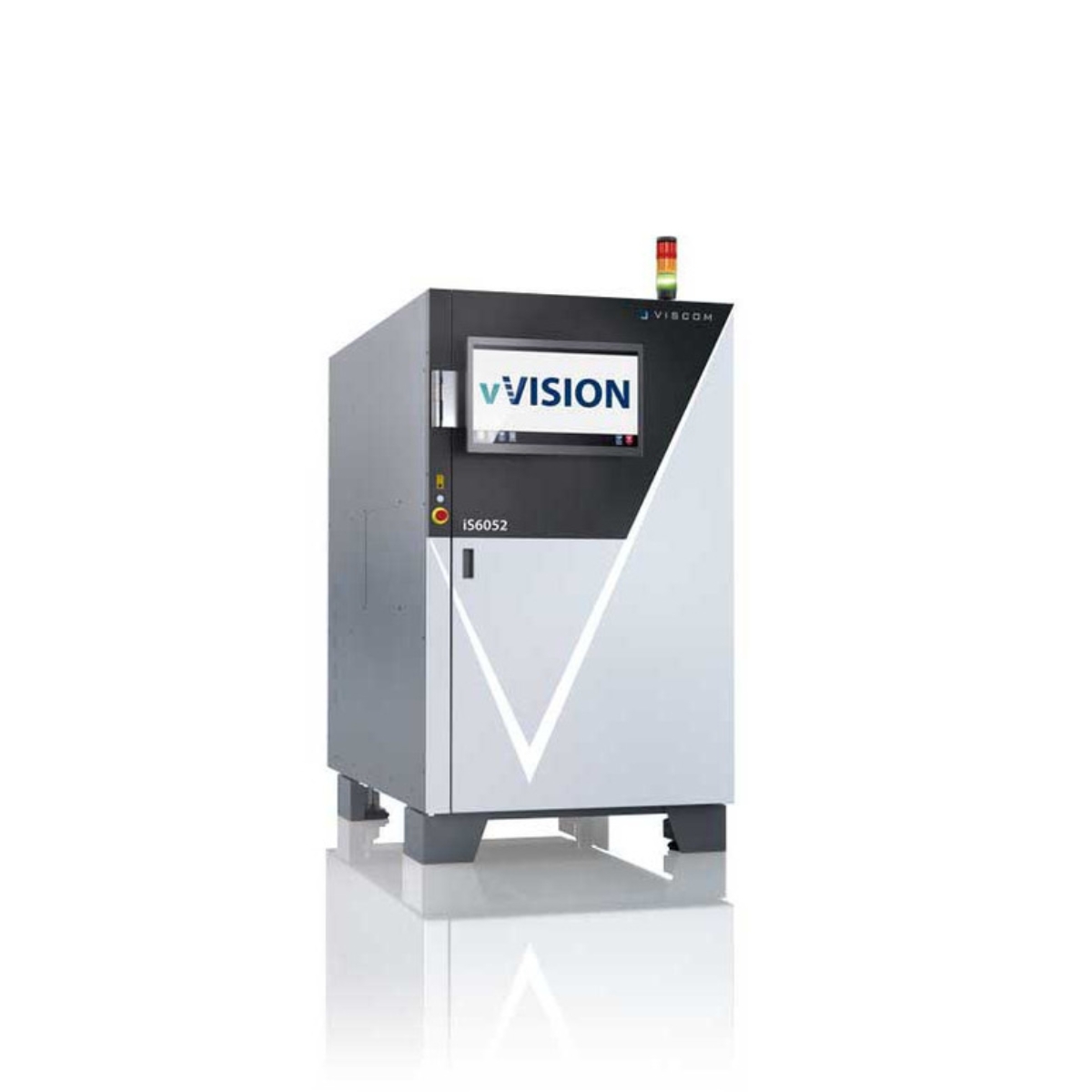

Viscom – Optical Inspection iS6052 THT
The iS6052 THT inspection system is the most efficient quality control inspection of Viscom. Engineered for precise component placement verification on THT (Through-Hole Technology) boards. Utilizing advanced AOI (Automated Optical Inspection) technology, it inspects from above the PCB, setting it apart from conventional systems that inspect from below.
Available in :
Designed for accuracy and efficiency, the iS6052 THT ensures reliable quality assurance in THT assembly processes.
Technical Specifications
| Dimensions | |
| System Housing | (39.3″ x 69.1″ x 69″) (W x D x H) |
| Camera Technology | XMe THT |
| Number of megapixel cameras | 4 |
| Orthogonal camera Resolution | 12 µm |
| Orthogonal camera Field of view | 50 mm x 50 mm |
| INSPECTION SPEED | Up to 60 cm²/s |
| User interface | Viscom vVision |
| Statistical process control | Viscom vSPC/SPC, open interface (optional) |
| Verification station | Viscom vVerify |
| Remote diagnosis | Viscom SRC (optional) |
| Programming station | Viscom PST34 (optional) |
Key Features
- Specificity: Designed specifically for cost-effective THT mass production
- Efficiency: High inspection speed with process control and optimization can meet demanding cycle time requirements in real time
- Integrated Verification: use integrated verification technology for fewer false calls
- Improved Ergonomic Design: reduces strain during prolonged use, leading to less fatigue.
