Thermo Fisher – Refrigerated Incubators
The Precision and Thermo Scientific lines of Refrigerated Incubators offer conventional compressor technology with electrical heating elements for reproducible results. Ideal for Academia, Waste water, Microbiology labs.
Available in :
Experience up to 84% energy savings when using Heratherm refrigerated incubators with Peltier technology compared to traditional compressor units.
*Based on testing with compressor unit BK6160.
**Based on testing with compressor unit Precision 815.
Key Features
- Precise Temperature Control: Maintains temperatures from +5°C to +70°C with uniformity as low as ±0.3°C and stability of ±0.1°C.
- Energy-Efficient Design: Utilizes Peltier technology, consuming up to 84% less energy than traditional compressor-based units.
- Advanced Programmability: Features intuitive controls allowing storage of up to 10 programs with 10 steps each for customized incubation protocols.
Available Models
Reliable Temperature Environments
Choose from a variety of refrigerated incubators for your applications in:
- The growth of Microorganisms
- Quality control in the food, beverage and cosmetics industries
- Water testing
- Biochemical Oxygen Demand testing (BOD)
- Cell culture
- Microbiological analysis
- Tempered storage
or any other application with controlled temperature as a process step.

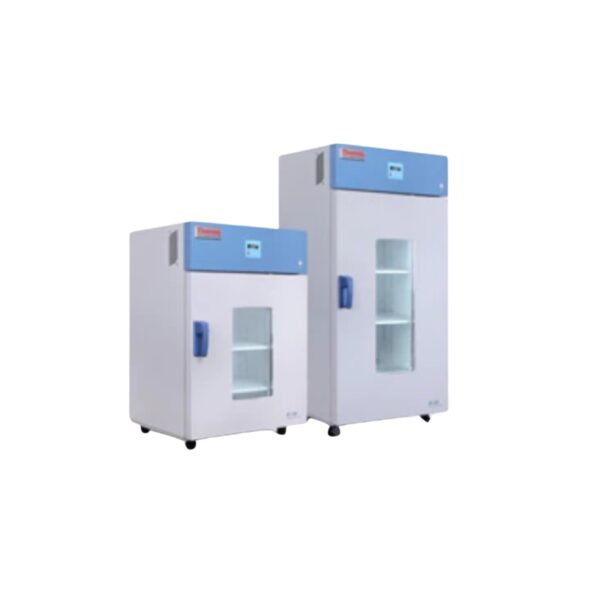

Achieve untapped potential in incubation with the temperature precision you need for applications that demand it. With a temperature range of +5 to +70°C, Thermo Scientific™ Heratherm™ Refrigerated Incubators are equipped with Peltier technology to reach and maintain the precise ambient temperatures you need for reliable results. With no hazardous refrigerants, these units use less energy than the conventional product, making it the ideal choice for energy-conscious labs.
Product Overview
- Temperature range +5 to +70°C
- Choose benchtop model 178L / 6.3 cu.ft. or floor model with casters 381L / 13.5 cu. ft.
- Great temperature uniformity and stability to keep the samples in a safe environment – uniformity as low as +/-0.3°C (20°C), stability as low as +/-0.1°C
- Energy consumption as low as 80Wh/h (benchtop) / 150Wh/h (floor) at 20°C – Note that comparable compressor cooled units consume up to 6 times this amount*
- CFC free / HFC free polyurethane insulation foam for outstanding temperature performance and condensation prevention
- Heated door with intelligent energy control to ensure no condensation – even at low temperatures
- Sophisticated timer function with weekly, daily or real time mode
- Intuitive programmability function for defined temperature ramping, soak/cool and dwell: store up to 10 programs with 10 easy steps
- Adjustable over temperature shut-off for protocols that require setting of over temperature for protection – (class 2 according to norm DIN12880)
- Safe viewing of samples through internal glass door with limited impact on temperature
- Safe containment with automatic over and under temperature alarm
- Standard access port for data monitoring (large diameter of 42mm / 1.65 in.)
- Flexible shelf system for optimal loading, easy to remove for cleaning, with non-tip protection
- Stainless steel interior (1.4301 / ASTM 304) and rounded corners for easy cleaning
*Based on comparison with models BK6160/Precision815

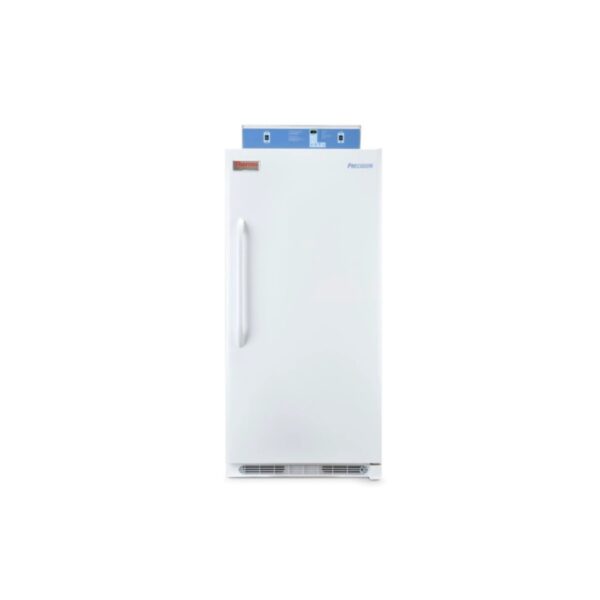

Conduct applications that require temperatures ranging from -10° to +60°C with Thermo Scientific™ Precision™ Low Temperature BOD Refrigerated Incubators, available in 2 sizes and ideal for biochemical oxygen demand testing, bacterial research, seed germination, fish/insect breeding and much more. Features an efficient, dependable design with microprocessor controls and forced air circulation.
Temperature Uniformity
- Microprocessor control with easy-to-read display shows actual temperature within 0.1°C
- Push-button controls for temperature set point selection
- Forced-air circulation delivers excellent temperature stability
- CFC-free, foamed polyurethane insulation prevents heat loss
- RTD temperature probe and protected set point mode prevent accidental temperature change
- Door key lock protects samples from unauthorized access
Efficient Design
- Easy-to-clean, corrosion-resistant construction
- Compressor relay conserves energy
173L (6.1 cu. ft.) Unit
- Economical undercounter design
- High/low safety thermostat backups
- Three cooling modes simplify operation: high precision with cooling; high precision without cooling; and frost-free with variable cooling
566L (20 cu. ft.) Unit
- Ideal for BOD applications and temperature settings at or below ambient
- Holds over 300 BOD bottles (300mL)
- Temperature set point selection with high- and low-temperature protection and simple calibration
849.5L (30.0 cu. ft.) Unit
- Large volume for applications above ambient
- Temperature range: 5° to 70°C
- Hydraulic thermostat with analog temperature control
Key Features
- Ideal for incubation and testing applications below ambient, or standard 37°C incubation in warm environments
- Broad temperature range of 4-60°C – covers even applications at high and low temperature levels
- Available in 2 common sizes – table top and free standing units
- Single-setpoint microprocessor control for precise temperature setting
- Timer function for automatic start or shut down of unit (0 to 99:59 hours:minutes)
- Over- and under-temperature alarm prevents operator in case of unexpected temperature deviations
- Over-temperature cut-out for additional safety
- Simple calibration routine for accurate temperature display
- Access port for inserting monitoring probes or cables for use with electrical devices – easy access on right side of unit
- RS232 data interface for temperature monitoring (no software included)
- Shelving system provides sample flexibility with 4-5 shelf positions (2-3 shelves included)
- Technically mature, reliable compressor technology
- Large unit with lockable casters for easy set-up and relocation
- IQ/OQ documentation and services available
- Silent long shaft fan and unique airflow ensure great temperature distribution
- Glass window in door for undisturbed inspection of samples
- Automatic defrost for uninterrupted long-term applications below ambient
- Fan motor overheating protection for additional safety
