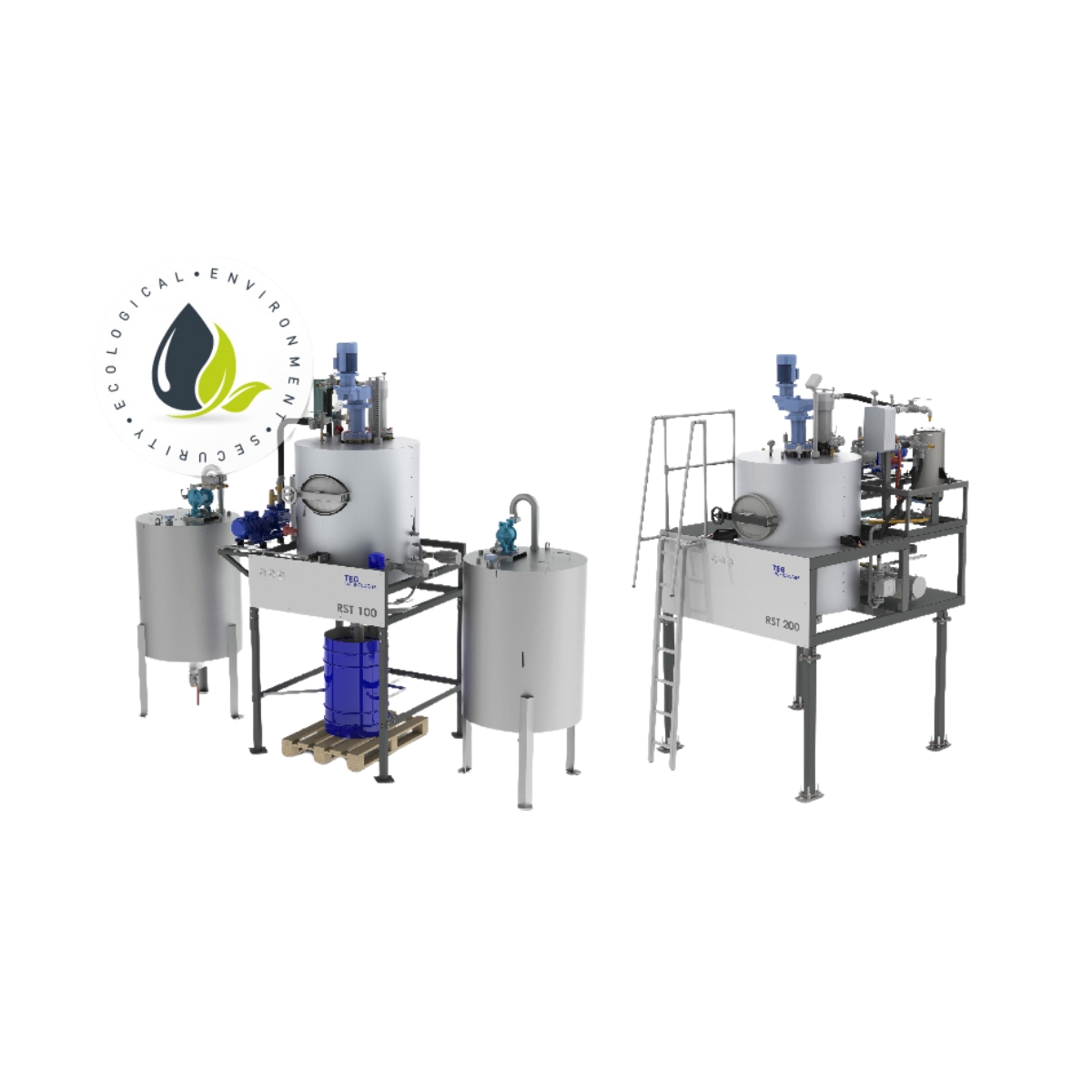

TEG Technologies – Solvent Distillers
Our distillers allow the recovery and reuse of the used solvent, separating the polluting product (paints, inks, etc.) from the original solution. In other words, they recycle a hazardous waste material in a safe and environmentally friendly manner.
Technical Specifications
| RST100 | RST200 | |
| Heating power | 12kW | 24kW |
| Yield | 40 – 70 L/h | 110 – 140 L/h |
| Dimensions (width, length, height) | 1700 x 1700 x 3600 mm | 2000 x 2300 x 3750 mm |
| Recovery unit weight | 550 Kg | 1500 Kg |
| Compressed air pressure | 6 Bars | 6 Bars |
| Constant boiler work volume | 100 L | 100 L |
| Heating time approx. | 550 Kg | 1500 Kg |
| Maximum heating temperature | 1 h. | 45 min. |
| Vacuum in boiler | -0,70 Bars | -0,70 Bars |
| Voltage | 220 V a 480 V | 220 V a 480 V |
| Cooling water temperature | de 7Cº a 12Cº | de 7Cº a 12Cº |
| Cooling system power (400V/50HZ) | 5,7kW | 9kW |
| Chilled water consumption | 1700 Kg/h | 4600 Kg/h |
| Maximum compressed air consumption | 50 L/m | 50 L/m |
Key Features
Sustainability
The distilled solvent is reusable, thus significantly reducing the cost of consumables. It is environment-friendly and reduces disposal costs.
Process
The operation is based on the evaporation of a liquid into a gas in order to separate the substances without altering the characteristics of the product. This process is carried out by applying heat and is based on different boiling points. The solvent is evaporated from the polluting products, condensed and finally directed to a tank in the form of a clean and reusable solvent. The polluting products remain at the bottom of the distillation tank and are easily disposed of. This operation can be carried out repeatedly without the solvent losing its properties.
Brand
TEG Technologies is a company that has been involved in the field of industrial automation since 1992. With a workforce of over 180 professionals, it enjoys the recognition and trust of a large number of companies in different sectors. TEG has an engineering department and a production workshop, with its own assembling line, to make products capable of meeting the market’s technological needs in accordance with the principles of facilitating work and providing value.
