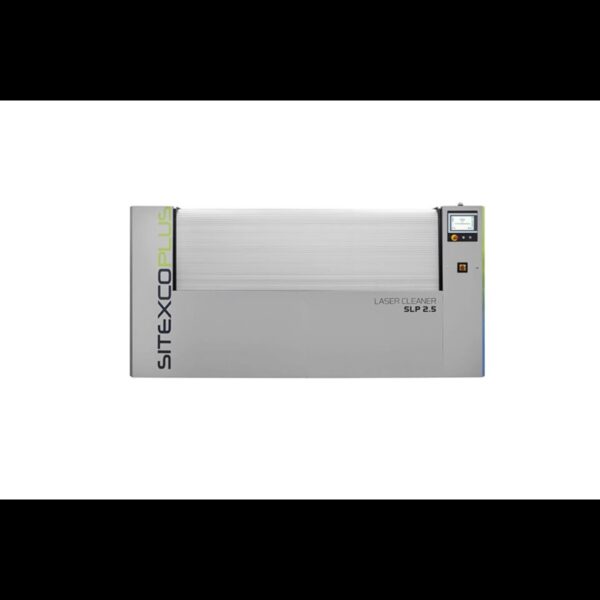

TEG Technologies – Sitexco Plus
The key factor in achieving high-quality printing in accordance with the market demand is that the ink transfer is conducted in a consistent and homogeneous manner, and the proper cleaning of the rolls and sleeves is critical.
Working with high-line screens rolls, through which much higher accuracy and detail in the printing is achieved, however makes the cleaning on the micro-alveoli on the surface of the anilox more difficult to achieve.
Key Features
- Innovation and Control: The new cleaning programs are based on correctly managing the variables that affect the result of the cleaning. Understanding and correctly managing these factors has headed us to a new, control-based approach.
- More Technology, More Connectivity: The Internet connection also allows our technical team to perform after-sales service quickly and remotely. The optimisation of processes by sharing machine-person information through M2P technology.
- Plus in Terms of Range: Each model comes in three versions, depending on the cleaning speed it provides allows us to offer each customer the product they really need.
- Safety and performance guarantee
Technical Specifications
| Model | SNP 1.0 | SLP 1.5 | SLP 2.5 | SLP3.2 |
| Machine Length | 1600m / 63” | 2450mm / 96.5” | 3450mm / 135,85” | 4150mm / 163.38” |
| Machine Height | 1600mm / 63” | 1750mm / 68.9” | 1750mm / 68.9” | 1750mm / 68.9” |
| Machine Width | 670mm / 26.5” | 835mm / 33” | 835mm / 33” | 835mm / 33” |
| Maximum cleaning length | 850mm / 33,46” | 1500mm / 59” | 2500mm / 98.5” | 3250mm / 128” |
| Maximum roll diameter | 135mm / 5,31” | 300mm / 11,81” | 300mm / 12,4” | 300mm / 11,81” |
| Minimum roll diameter | 45mm / 1.77” | 80mm / 3,15” | 80mm / 3,15” | 80mm / 3,15” |
| Total roll weight | 80Kg / 176.5lb | 200Kg / 441lb | 250Kg / 551lb | 300Kg / 661lb |
| Electrical power | 1.5 KW | 1.9 KW | 1.9 KW | 1.9 KW |
| Electrical supply | 208-550 Vac (single or dual phase) | 208-550 Vac (single or dual phase) | 208-550 Vac (single or dual phase) | 208-550 Vac (single or dual phase) |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Air supply | NO | NO | NO | NO |
Sitexco Plus Operation
