TA Instruments – Thermal Analysis – Differential Scanning Calorimeters
No one sells more DSC’s than TA Instruments. From the most cost-effective DSC with industry-leading performance, to the most advanced DSC available, there is a TA Instruments DSC to meet your needs and exceed your expectations.
Key Features
- Revolutionary patented Tzero™ DSC technology: significant improvements in baseline flatness, transition resolution and sensitivity. Tzero™ technology allows direct measurement of heat capacity and makes Modulated® DSC (MDSC®) experiments faster and more accurate.
- Most common usage: investigation, selection, comparison, and end-use performance evaluation of materials in research, quality control and production applications. Measure DSC techniques such as glass transitions, “cold” crystallization, phase changes, melting, crystallization, product stability, cure / cure kinetics, and oxidative stability.
- All DSC feature touch screens with feature-rich software to help improve workflow efficiency.
Technical Specifications
| DSC25 | DSC250 | DSC2500 | X3 DSC | DSC 25P | |
| Baseline Flatness (-50 to 300°C)[1] | ≤100 μW | ≤10 μW | ≤5 μW | ≤10 μW | – |
| Baseline Repeatability (-50 to 300°C) | <40μW | <20μW | <10μW | <15μW | – |
| Temperature Range | -180°C to 725°C | -180°C to 725°C | -180°C to 725°C | -180°C to 550°C | RT to 550°C |
| Temp Accuracy | ±0.1°C | ±0.05°C | ±0.025°C | ±0.025°C | – |
| Temp Precision | ±0.01°C | ±0.008°C | ±0.005°C | ±0.005°C | – |
| Enthalpy Precision | ±0.1% | ±0.08% | ±0.04% | ±0.08% | |
| [1] No Baseline subtractions Find out more information about DSC 25P in the next section | |||||
Available Models
The DSC 25 offers exceptional DSC performance, even against many competitive top-of-the-line instruments. With standard Modulated DSC® and the option to add an autosampler, all in a cost-effective package, getting great DSC data at a reasonable price has never been easier! The Discovery DSC 25 is the ideal instrument for industrial, quality control, and teaching laboratories.
Key Features
- New Fusion Cell™ with patented technology for unrivaled performance in baseline flatness, sensitivity, resolution, reproducibility, and reliability.
- Exclusive T4P Tzero® heat flow technology for ultimate DSC performance and unique capability to conduct and store heat capacity measurements in a single run.
- New innovative “app-style” touch screen puts instrument functionality simply One-Touch-Away™, enhancing usability and making it easier than ever to get great data.
- Reliable linear autosampler with programmable tray positions for worry-free 24/7 operation, most flexible programming of experiments, and automated calibration and verification routines.
- Modulated DSC®, (MDSC®), for the most efficient separation of complex thermal events.
- Widest range of refrigerated cooling options eliminates liquid nitrogen expense and ensures uninterrupted subambient operation during extended autosampler routines.
- Tzero Press and Pans for fast, simple, and reproducible sample preparation.
- Commitment to quality backed by the industries ONLY five-year cell and furnace warranty for peace of mind.
The DSC 250, with patented Tzero® Technology, easily outperforms competitive top-of-the-line models. Our versatile instrument is upgradeable with a 64 position autosampler and compatible with the photocalorimeter and microscope accessories. The Discovery DSC 250 is the ideal choice across a range of laboratory needs.
Key Features
- New Fusion Cell™ with patented technology for unrivaled performance in baseline flatness, sensitivity, resolution, reproducibility, and reliability.
- Exclusive T4P Tzero® heat flow technology for ultimate DSC performance and unique capability to conduct and store heat capacity measurements in a single run.
- New innovative “app-style” touch screen puts instrument functionality simply One-Touch-Away™, enhancing usability and making it easier than ever to get great data.
- Reliable linear autosampler with programmable tray positions for worry-free 24/7 operation, most flexible programming of experiments, and automated calibration and verification routines.
- Modulated DSC®, (MDSC®), for the most efficient separation of complex thermal events.
- Widest range of refrigerated cooling options eliminates liquid nitrogen expense and ensures uninterrupted subambient operation during extended autosampler routines.
- Tzero Press and Pans for fast, simple, and reproducible sample preparation.
- Commitment to quality backed by the industries ONLY five-year cell and furnace warranty for peace of mind.
The DSC 2500 is designed for researchers that require the highest level of performance and features in one package. Patented T4P Tzero® heat flow delivers the highest sensitivity and resolution, along with the ability to make heat capacity measurements in a single run.
Key Features
- New Fusion Cell™ with patented technology for unrivaled performance in baseline flatness, sensitivity, resolution, reproducibility, and reliability.
- Exclusive T4P Tzero® heat flow technology for ultimate DSC performance and unique capability to conduct and store heat capacity measurements in a single run.
- New innovative “app-style” touch screen puts instrument functionality simply One-Touch-Away™, enhancing usability and making it easier than ever to get great data.
- Reliable linear autosampler with programmable tray positions for worry-free 24/7 operation, most flexible programming of experiments, and automated calibration and verification routines.
- Modulated DSC®, (MDSC®), for the most efficient separation of complex thermal events.
- Widest range of refrigerated cooling options eliminates liquid nitrogen expense and ensures uninterrupted subambient operation during extended autosampler routines.
- Tzero Press and Pans for fast, simple, and reproducible sample preparation.
- Commitment to quality backed by the industries ONLY five-year cell and furnace warranty for peace of mind.

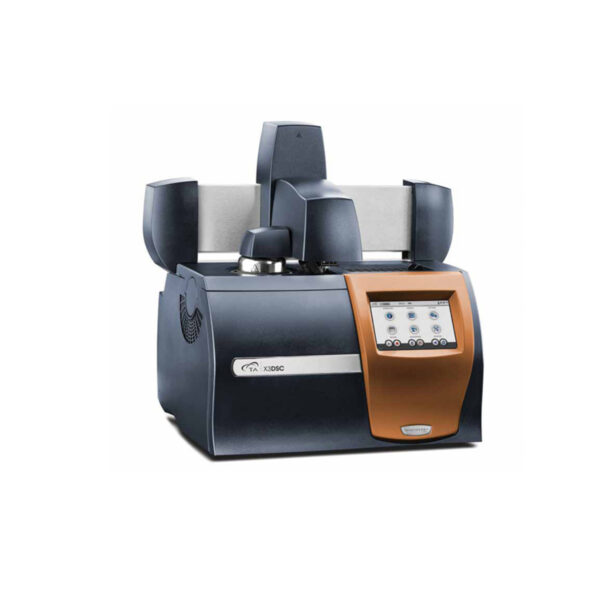

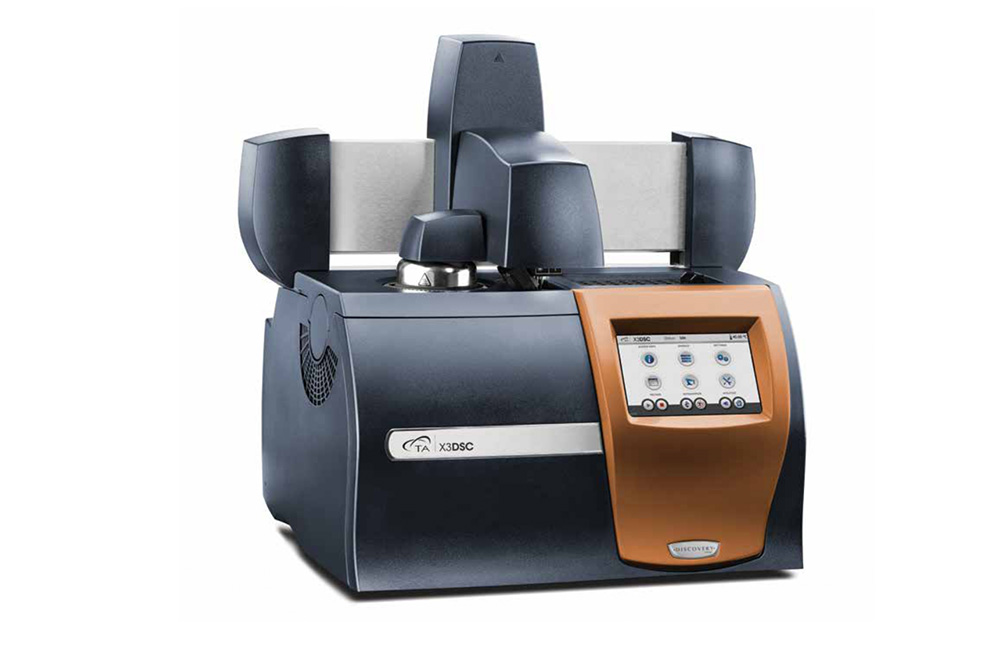

TA Instruments invites you to Discover the possibilities with the Discovery X3 Differential Scanning Calorimeter featuring a multi-sample cell that delivers high quality heat flow data for up to three samples simultaneously. The Discovery X3 DSC combines industry-leading performance with the tools to increase productivity on every level of material research. TA Instruments’ commitment to innovation enables scientists and engineers to reach their goals faster and make critical decisions with confidence.
Key Features
- Fusion Cell™ with patented technology provides unrivaled performance in baseline flatness, sensitivity, resolution, and reproducibility. Its superb technology enables detection of the weakest thermal transitions and the most accurate enthalpy and specific heat capacity measurements.
- Enhanced Tzero heat flow technology for the X3 guarantees temperature and enthalpy accuracy simultaneously on all three samples
- High-end performance with three sample calorimeters provide unmatched flexibility from replicate testing for statistical analysis to validation/verification against a control sample for the ultimate in certainty
- Modulated DSC® (MDSC®) for the most efficient separation of complex thermal events.
- One-Touch-Away™ User Interface enhances usability and access to data on the instrument.
- Reliable linear autosampler with 54 programmable tray positions for worry-free 24/7 operation, flexible programming of experiments, and automated calibration and verification routines.
- Widest range of refrigerated cooling options eliminates liquid nitrogen expense and ensures uninterrupted sub-ambient operation during extended autosampler routines.
- Tzero Press and pans for fast, simple, and reproducible sample preparation.
- Powerful software that delivers an exceptional user experience in a combined package for instrument control, data analysis, and reporting. Features such as automated calibration routines and real-time test method editing provide unmatched flexibility, while One-Click analysis and custom reporting raise productivity to new levels.
- Commitment to quality backed by the industry’s ONLY five-year cell and furnace warranty for peace of mind.
Technical Specification
| DSC 25P | |
| Pressure Range | Up to 7MPa or 1000PSI |
| Temperature Range (standard) | RT to 550°C |
| Temperature Range with cooling accessory | -130°C to 550°C |
| Purge Gas | N2, Air, O2, He, Ar, CO2, CO, H2 |

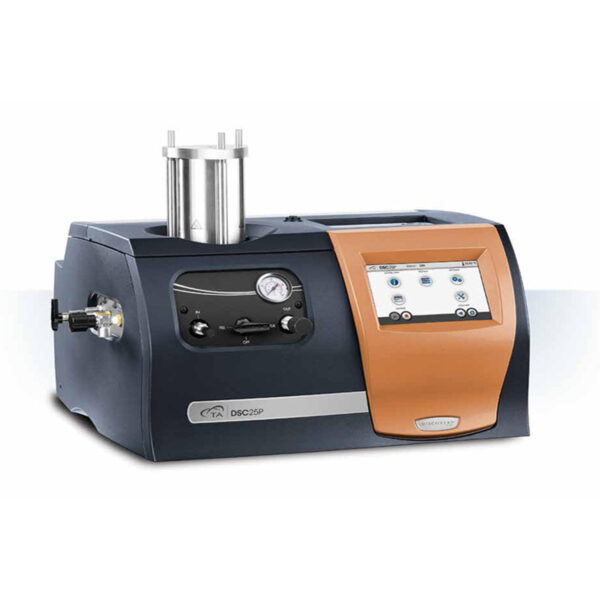

The DSC 25P is a dedicated Pressure DSC module that provides heat flow measurements on pressure sensitive materials. The Discovery DSC 25P is used to study thermal transitions, chemical reactions and oxidative stability/ decomposition under vacuum, standard atmospheric pressure and elevated pressures. It measures a materials’ heat flow in a variety of inert, oxidizing or reducing atmospheres. The DSC 25P has a pressure range of 1 Pa to 7 MPa (0.0001 to 1,000 psi) of which experiments can be performed under static or dynamic purge (constant volume or constant pressure). The Discovery DSC 25P can operate under atmospheric and elevated pressures from ambient to 550 °C. The optional Quench Cooling Accessory for the FACS extends the operational temperature range of the DSC 25P down to -130°C.
Key Features
- Fusion CellTM with a pressure transducer, fixed pedestal mounted sensor, rugged silver furnace, Tzero thermocouple, and temperature controlled electronics. The DSC 25P Fusion Cell design ensures accurate temperature control and stable heat flow baseline performance
- One Touch AwayTM “App” Style Touchscreen to easily monitor real time signals such as pressure, temperature and time
- Modulated DSC (MDSC®) under pressure conditions for separation of complex thermal events and monitoring of changes in specific heat capacity
- TRIOS for versatile software control and data analysis
- The industries ONLY 5 year cell and furnace warranty
Nano DSC is a high-resolution method for quantifying the thermal stability of large biomolecules and biotherapeutics. This instrument measures the heat of reaction from tertiary and secondary structure changes that occur when a biomolecule unfolds, or melts in the case of nucleic acids and lipids. The Nano DSC provides peak temperature when unfolding occurs and a total heat from the unfolding event.
The Nano DSC is a highly sensitivity differential scanning calorimeter for testing liquid samples containing a biomolecule or biotherapeutic sample. The unit is software controlled and experiments are set up, so that a sample is heated at a controlled rate over a defined temperature range. The Nano DSC can be automated to deliver samples directly from temperature-controlled 96 well plates, for unattended use. Automated cleaning eliminates sample carryover effects, and automated sample loading ensures the sample is delivered to the instrument the same way, every time.
Key Area of Interests
Packed with functionality to simplify and improve laboratory workflow and productivity
New Fusion Cell™ with patented technology for unrivaled performance in baseline flatness, sensitivity, resolution, reproducibility, and reliability
Scheduled and unattended calibrations and verifications free up time for more research
The New Discovery DSC – The Best Line of DSCs Ever Designed
5 Year Cell and Furnace Warranty from TA Instruments
