TA Instruments – Liquid Nitrogen-Free Cooling Systems

TA Instruments offers innovative liquid nitrogen-free cooling systems, providing convenient, continuous cooling for laboratory needs. These systems, including the RCS and ACS models, deliver precise temperature control down to -120°C, eliminating the need for liquid nitrogen and improving safety and cost efficiency for various thermal analysis applications.

Inquiry Now

Overview

Features

Specifications

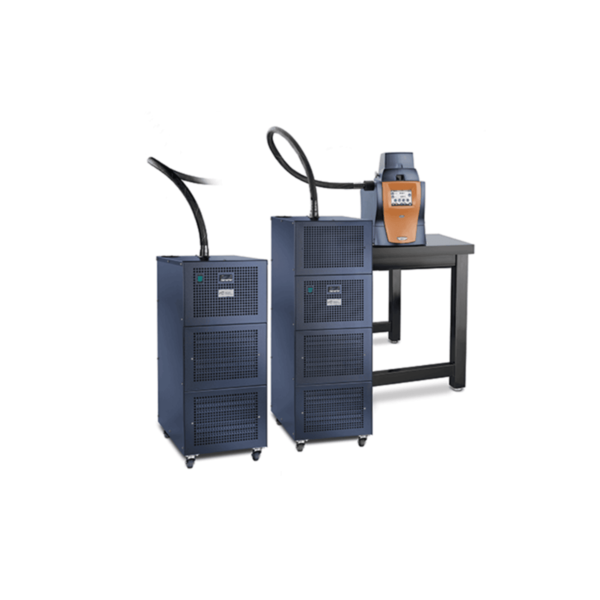

Refrigerated Cooling Systems (RCS)

Full line of cooling systems, designed and manufactured by TA Instruments, specifically for our DSC’s, featuring the new RCS 120 three-stage refrigerated system capable of temperatures down to -120°C. RCS Features and Benefits:

• One-, Two-, or Three-stage refrigeration system that achieves temperature ranges down to -120°C.

• Sealed system eliminates the need for LN2 cooling system.

• Enables cycling, MDSC®, controlled and ballistic cooling experiments.

• Safe, convenient, and continuous cooling operation for your laboratory needs.

Air Chiller System (ACS)

The new Air Chiller System models offer unique gas flow cooling systems that provide the capability for sub-ambient testing without the use of liquid nitrogen. Available in two models, the ACS-2 and ACS-3, the chillers feature a multi-stage cascading compressor design that employs compressed air (7 bar, 200 l/min) as the cooling medium. The ACS-2 and ACS-3 models permit operation of the DMA 850 with Standard Furnace at temperatures as low as -50 °C and -100 °C respectively *. The chiller systems can help eliminate or reduce liquid nitrogen usage and associated hazards from any laboratory and offer an incredible return on investment. The ACS-2 and ACS-3 are also compatible with DMA3200, Discovery Hybrid Rheometer, ARES-G2 Rheometer, and RSA-G2 Solids Analyzer.

Key Features

  • Great Return On Investment (ROI) – No recurring Liquid Nitrogen cost with estimated payback of 2 to 3 years* (depending on experiment requirements)
  • Unlimited supply of Cooling Gas means you never run out during an experiment!
  • No liquid nitrogen waste from idle tank boil off.
  • Always ready to run sub-ambient tests.
  • Eliminates safety concerns:
  • No asphyxiant hazard from excessive nitrogen gas
  • No moving heavy liquid Nitrogen tanks
  • CFC Free
  • Provides low temperature cooling to laboratories with limited or no access to LN2.
  • Low noise durable compressors.
  • Small footprint frees up lab space over liquid Nitrogen alternative.

* ROI calculation based on difference between initial capital outlay of equivalent LN2 option and estimated LN2 usage one 120 Liter tank per week at cost of $125 per tank.

Technical Specifications

Cooling SystemTemperature RangeCompatible with
RCS 40-40C to 400CDSC 25/250/2500
RCS 90-90C to 550CDSC 25/250/2500
RCS 120-120C to 400CDSC 25/250/2500
ACS 2-50C to 300CDiscovery Hybrid Rheometer, DMA850, DMA 3200, ARES-G2, RSA-G2
ACS 3-100C to 300CDiscovery Hybrid Rheometer, DMA850, DMA 3200, ARES-G2, RSA-G2

Available Models

The Refrigerated Cooling System (RCS40) employs a single-stage refrigeration system, which permits convenient DSC/MDSC operation over the temperature range from -40 to 400°C.  Balistic cooling from 400°C to ambient is achieved in about 7 minutes.

The Refrigerated Cooling System (RCS90) employs a two-stage refrigeration system, which permits convenient DSC/MDSC operation over the temperature range from -90 to 550°C.  Balistic cooling from 500°C to ambient is achieved in about 7 minutes.

The Refrigerated Cooling System (RCS120) employs a three-stage refrigeration system, which permits convenient DSC/MDSC operation over the temperature range from ­-120°C to 400°C. This RCS120 enables cycling, controlled and ballistic cooling experiments, and is compatible with the Discovery Series DSC 2500, DSC 250, and DSC 25.

TA Instruments today announced the introduction of the ACS-2 Air Chiller System. Following on the tremendous popularity of the ACS-3, the ACS-2 is a mechanical refrigeration system that provides subambient temperature control for mechanical and rheological testing. Paired with a DMA850, DMA3200, Discovery Hybrid Rheometer, ARES-G2 Rheometer, or RSA-G2 Solids Analyzer, the ACS-2 provides reliable temperature control as low as -55°C without the use of liquid nitrogen.

The ACS-3 was introduced in response to our customers’ demand to perform low temperature mechanical measurements while avoiding the cost, safety concerns, and inconvenience associated with routine liquid nitrogen usage. The ACS-3 has been extremely popular with those customers. We are pleased to extend that product offering with the introduction of the ACS-2, which provides similar convenience within its range of operation, and at a lower investment cost than the ACS-3.
