Studer – Production Cylindrical Grinding Machines – S11 & S22
The Studer S11 production cylindrical grinding machine is the youngest S11 and the smallest machine in the company’s portfolio and is tailor-made for workpieces up to 200 mm in length.
If space-saving is your priority, then the S11 is the right machine for you. In a space of less than 1.8 m² the S11 produces extremely efficiently and reliably with a grinding wheel diameter 500 mm.
On the other hand, if productivity is important to you, we recommend the S22. This is a production platform, which is precisely configured for your grinding tasks. The S22 can be perfectly integrated into your production line. It allows you to machine medium-sized workpieces with different technologies.
Available Models
Technical Specifications
| Distance between centres | 220 mm. |
| Height of centres | 125 mm. |
|---|---|
| Workpiece length | 0-130 mm. |
| Workpiece diameter | 0-249 mm. |
| Max. workpiece weight | 3 Kg. |

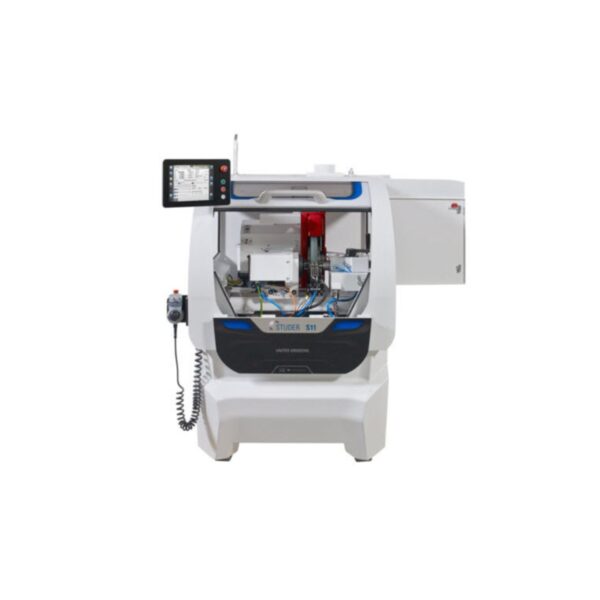

The S11 is a production cylindrical grinding machine for small workpieces. It has a distance between centres of 200mm (7.9″) and a centre height of 125mm (4.9″). It can machine workpieces with a maximum weight of 3kg (6.6lbs).
Technical Specifications
| Distance between centres | 1000 mm. |
| Height of centres | 225 mm. |
|---|---|
| Workpiece length | 0-700 mm. |
| Workpiece diameter | 0-449 mm. |
| Max. workpiece weight | 150 Kg. |
The S22 is a production platform for the mass production of medium-sized workpieces. It has distances between centres of 650mm (25.6″) / 1100mm (43.3″) and centre heights of 175mm (6.9″) / 225mm (8.8″). It can machine workpieces with a maximum weight of 150kg (330lbs).
Key Features
STUDER – External Production Cylindrical Grinding Machines | S11
- Full enclosure with new door concept for optimal accessibility.
- Dual axis cover (telescopic and bellows).
- Granitan® S103 mineral casting machine base.
- PCT touchscreen (Projective Capacitive Touch).
- Easy programming with the new operator interface.
- StuderWINfocus on the Sinumeric 840D SL.
- Simple and clear process visualization.
- Software optimized for touchscreen.
- In-process gauging software integrated into the machine control.
- StuderWIN programming software for producing grinding and dressing programs on a PC.
STUDER – External Production Cylindrical Grinding Machines | S22
- C axis for the workhead.
- Application-specific workhead concepts.
- Additional NC axis for profiling the grinding wheel (diamond roll).
- Full enclosure with movable front panels for optimal accessibility.
- Integrated loading unit or handling cells for loading and unloading from the left, right or from above.
- Large range of accessories.
- Easy programming with StuderWIN on Fanuc 310i -A.
- StuderGRIND programming software for creating grinding and dressing programs.
- Standardized interfaces for loader and peripheral devices.
S11: High Speed Grinding (HSG)
Key Industries
- Aerospace
- Automotive
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
STUDER has been writing grinding history since 1912. STUDER has developed from a small enterprise into an internationally active company…
