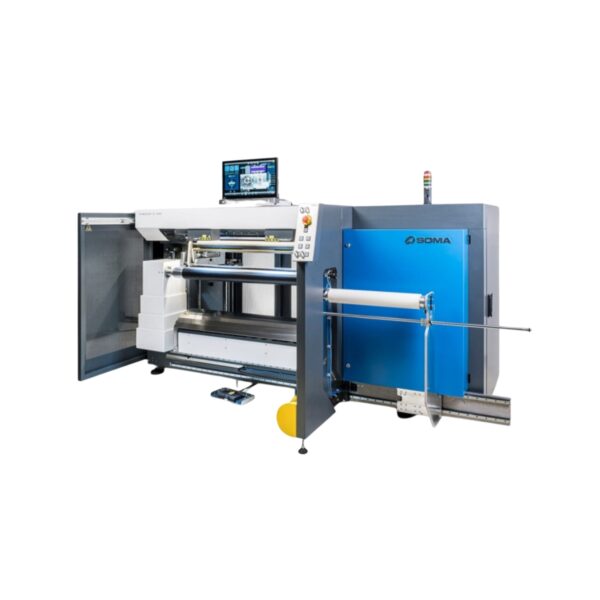

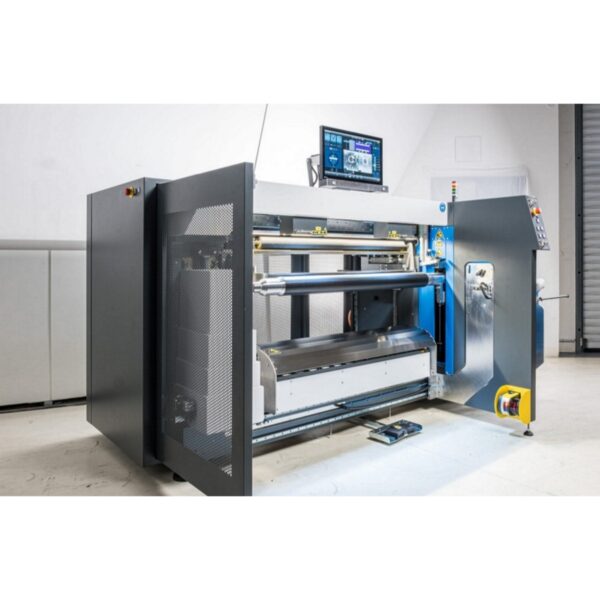

SOMA – Plate Mounters – Flexmont & S-Mount
The FLEXMONT series of plate mounting machines are designed for fast and accurate plate mounting to ensure the superior print quality of OPTIMA flexo printing presses.
Available in :
Flexmont: An entry level machine designed for maximum precision and high repeatable accuracy achieved by manual mounting of the plates.
S-Mount: Sophisticated plate mounter designed for full automation of either of the two processes 1) plate mounting, 2) register and impression setting later during the printing process.
Key Features
- Approx. 40 sec for plate mounting
- Minimized downtime of the press – precise mounting
- Sets register and impression producing almost zero meters setup waste (IRIS)
Available Models
Technical Specifications
| Max. print width | 880/1050/1270/1450 mm |
| Min. print length | 250/300 mm |
|---|---|
| Magnification | 100 x |
| Number of monitors and cameras | 2 |
| Camera positioning | manual – digital position indication |
| Cylinder (sleeve) positioning | manual |
| Plate mounting | manual |
Key Features
- Mounting tape holder
- Slitting unit for mountiing tape
- LCD displays with crosshairs
Technical Specifications
| Max. print width | up to 1700 mm |
| Max. print length | up to 1250 mm |
| Plate mounting | manual, automatic, fully automatic |
|---|
Key Features
- Approx. 45 sec for plate mounting
- Minimized downtime of the press – precise mounting
- 0 m set-up waste for register & impression setting on the press (IRIS)
Why S-Mount?
S-Mount – Intelligent Plate Mounter
SOMA provides leading flexible packaging solutions. Its product portfolio includes best-in-class flexographic printing presses, slitter rewinders, laminators, plate mounters and…
