SOMA – Laminators – Lamiflex E
A wide range of flexible packaging laminates can be produced on the LAMIFLEX series laminators using solvent free adhesives. It avoids solvent emission and eliminates the need for a heated drying tunnel and offers cost effective and cost saving solution, which also benefits the environment.
High level duplex solventless laminator for widest range of substrates
- Cantilevered sleeved transfer roller
- Cooling cylinder for ALU foil laminates
- Shaft-less unwinders and rewinder
- Precise tension control through dancer roller
- Micrometric setting of glue application gap
Available in :
Technical Specifications
| Web width | 850 / 1320 mm |
| Speed | 400 m/min |
|---|---|
| Roll diameter / weight | 1000 mm / 1000 kg |
| Lamination type | solventless |
| Min. web width | 300 mm |
| Processed materials | BOPP, PET, PE, LDPE, OPA, CAST PP, CAST PA, AL foil, paper, laminate and more |
Key Features
Improve Your Efficiency

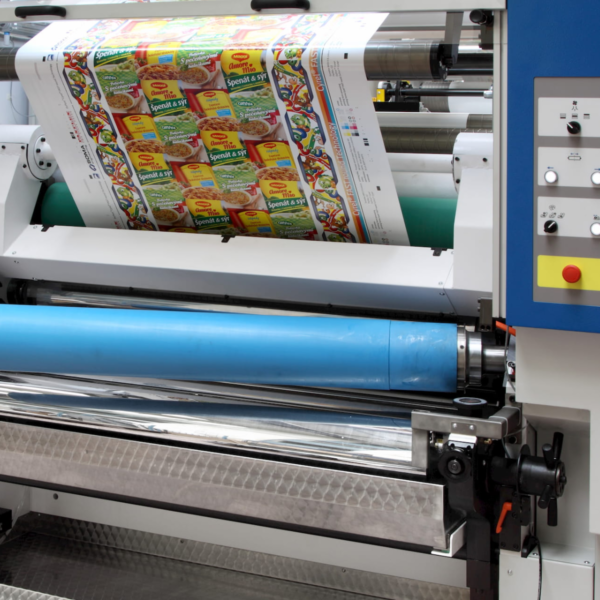

- Sleeved transfer roller
Enables very quick and easy on-board sleeve exchange - Shaft-less unwind and rewind units
Enable quick, easy and comfortable roll clamping horizontally
Be Sure You Laminate With The Best Quality
- Temperature control
Three loops with individual thermo-controlled units for dosing rollers, application roller and the the lamination roller ensure the higher speed running and increase the options for processing a wide range of substrates. - Tension control
Lamiflex is designed to process a wide range of substrates with tension range 30 – 250 N at unwind and 30 – 320 N at rewind offers laminating all common materials. - Three-roller lamination

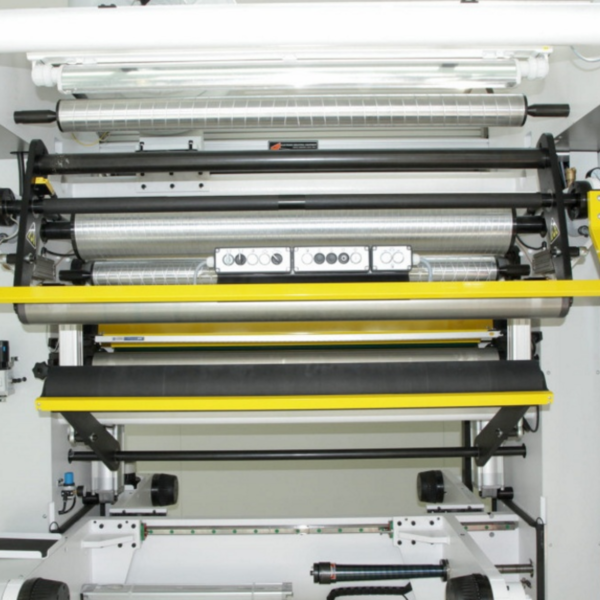

High quality lamination is ensured by a three roll system that ensures high rigidity, a small rubber contact area and a large angle of incoming material for perfect lamination and air bubble elimination in the final laminate. - Glue application
Precise glue application rollers, high rigid mechanical stop of the dosing gap and fixed roller housing enable precise and constant glue dosing. - Automatic web guiding
Automatically controlled horizontal movement of unwind units and materials ensures high rewind quality of poor-quality input rolls. - Angle adjustable rollers
Adjustable guide rollers at unwind and rewind balance the poor-quality (conical) input rolls can be successfully processed. - Cooling cylinder
An optional water cooled cylinder ensures laminate cooling before rewinding and contributes in eliminating roll telescoping.
Operate With Comfort and Safety
- Fume exhausting
A high efficiency exhaust system over the whole machine width reliably removes all fumes. - Mixing and dosing unit
Simple dosing solution for one-component and two-component glue with full automated refilling directly from barrels ensures smooth glue dosing with minimal manual handling. - Recipe system
All machines are equipped with a recipe system for job file storage to be easily recalled from the memory. - Roller wash-up
Automatic roller pre wash-up of transfer sleeved and application rollers significantly reduces costs and saves the operator time at the end of each job. - Intuitive control
A touch screen control panel with user friendly interface. - CE standards
Machines comply with and meet stringent European safety standards and codes.
