SOMA – Die cutters – Bulldog

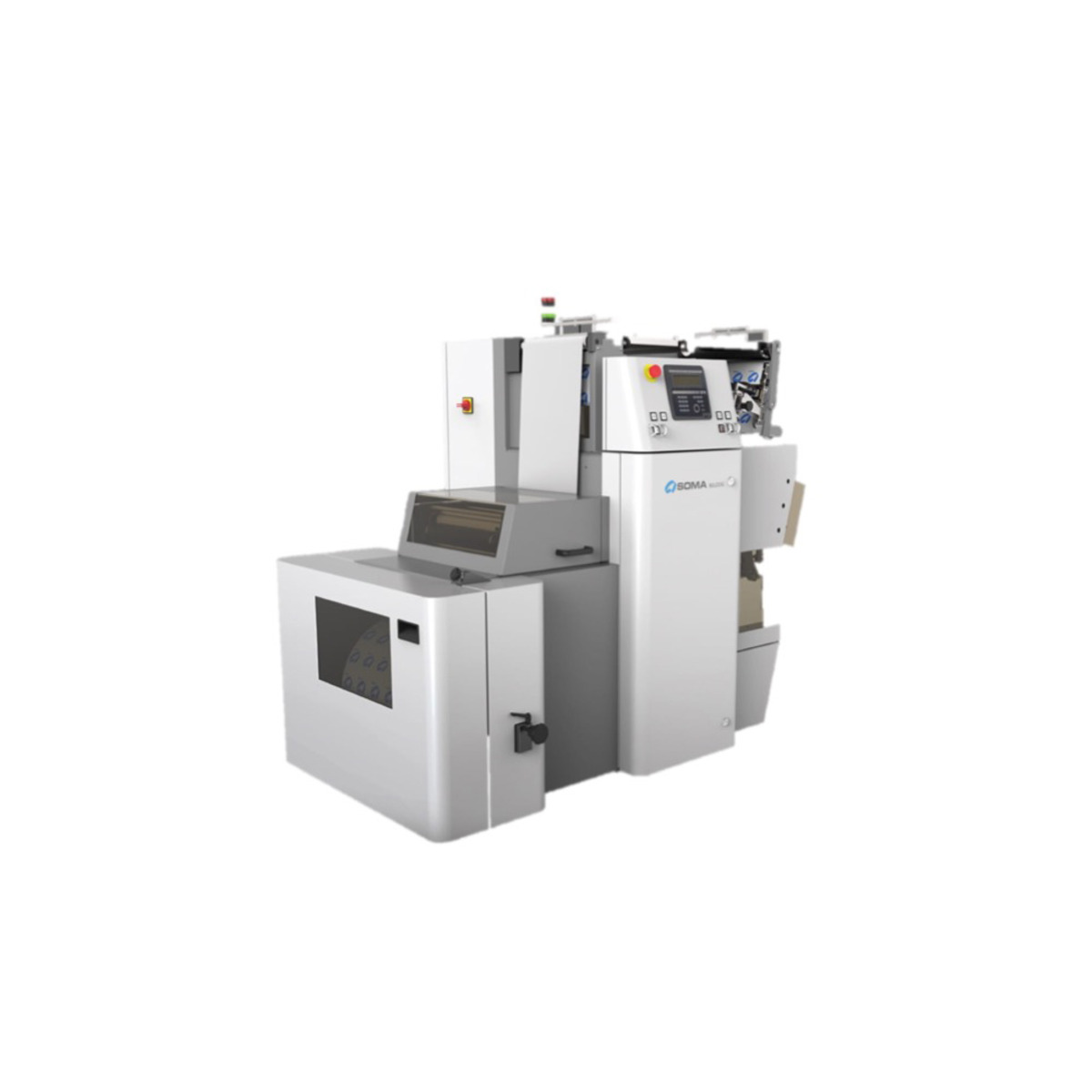

The Bulldog machine is a roll-fed die cutter mainly designed for the production of foil lids for yogurt containers. The die cutting technique is of very high precision to ensure perfect edge quality. The long life die cutting tool consists of multiple dies that enable several lids to be punched per stroke. Various lid shapes, formats and embossing patterns are possible.
Technical Specifications
| Max. foil width | 320 mm |
| Max. foil diameter | 450 mm |
|---|---|
| Inner core diameter | 70-78 mm |
| Max. die cutting cycle | 250 strokes/min |
| Feeding step | 15-150 mm |
| Dimensions | 1200x2550x1800 mm |
| Weight | 1260 kg |
| Power input | 6,5 kVA |
Key Features
Embossing unit with coating check sensors
Foil tension control loop
Print-to-die registration system for high precise cutting
Key Industries
- Food & Beverage
Brand
SOMA provides leading flexible packaging solutions. Its product portfolio includes best-in-class flexographic printing presses, slitter rewinders, laminators, plate mounters and die cutters. Its technologies can be applied in flexible packaging for food, non-food, labels, shrink sleeves, paper and paper board and aluminum closures.
