SEO – Phoenix MT

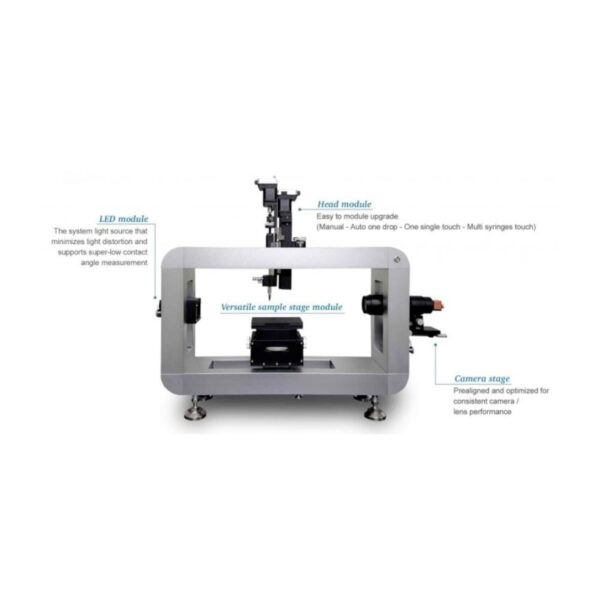

Phoenix MT is the world’s first model that can be used by turning the equipment, the individual modules can be separated, and the length of each main frame can be selected to change the model to suit almost all samples.
Key Features
- Total flexibility: Easy to upgrade ( Manual → Auto One Drop → Multi syringes ) by modular design main frame
- Automation : Automatic measurement progress at once
- User friendly : Easy to transform for changed sample types
- Tool Free changeover: Additional tools are not required for modular change
- Changeable module position : According to sample nature, module can be change to cater for diverse sample nature/ form factor
- Data output : Data can be exported as Excel file, offering the highest flexibility for further data processing
Technical Specifications
| Method and divided | Accuracy | Resolution | Range | Data information | Extension (Remark) | ||
|---|---|---|---|---|---|---|---|
| Static contact angle | Tangent line metnod1, Tangent line metnod2, and Trigonometric function | ±0.1 degree | ±0.1 degree | 0~180° | Average contact angle, left contact angle, right contact angle, drop volume, height, base line length, base area, measured time, wetting energy, spreading coefficient, work of adhesion | ||
| Dynamic contact angle | Captive method | ±0.1 degree | ±0.1 degree | 1~180° | Advance angle, Receding angle, Hysterisis, drop volume, etc., | Applied model is only P-MT (A,T) | |
| Dynamic contact angle | Tilting method | ±0.1 degree | ±0.1 degree | 0~90° | Work of adhesion, Advance angle, Receding angle, Hysterisis, drop volume, etc., | (optional) | |
| Surface tension | Pendent drop method | ±0.1 mN/m | ±0.01 mN/m | 1~1000 mN/m | Drop volume, Surface tension | ||
| Capture speed | CCD | 0~70FPS | Basic supplied is 70FPS | 0~315FPS (Optional) | |||
| Sample stage | X,Y axis sliding or Turning for wafer | Mapping(auto X,Y axis) is have to discuss with SEO) | |||||
| Power | 110/220V(50/60HZ) | ||||||
| For further details, please refer to enclosed brochure. | |||||||

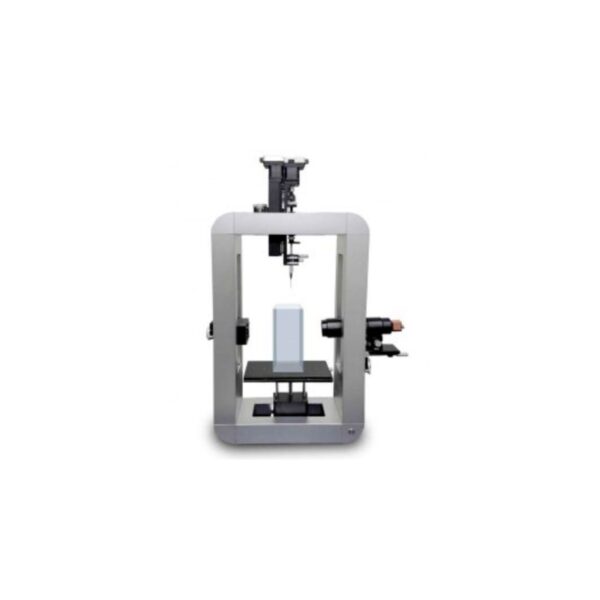

Contact Angle Analyzer : SEO Phoenix-MT Device
Contact Angle Meter (SEO’s Phoenix-MT) For Measurement
Key Industries
- Semiconductor, Solar & Electronics
Brand
SEO (Surface Electro Optics) was established in 1998 and is taking the lead in analysis technoogy in Korea with many years of accumulated research and experience while concern and research about Nano-Technology Industry have increasing. SEO opened a new stage of Contact Angle Analysis Technology as a result of a lot of effort fot the localization of Surface Chemistry Analysis instrument. In addition, ever since the SEO Phoenix Series came into the market, we have been enjoying a very good reputation for quality and service. Sine SEO is based on the development of technology of our own the instruments we manufacture have more competivity price than those made by international companies and compare very favorably in quality. From this, we are striving to achieve the localization of analysis instruments and to open up new international markets. As you can see, SEO will accomplish the advanced develoment and the glovalization of domestic analysis technology with leading edge techniques and aggressive strategies in Surface Chemistry Analysis.
