SeiLaser – Paperone
PaperOne Line is the innovative range of SEI Laser systems, with an automatic paper transportation, developed for the Folding Carton and Graphics Arts industry. It allows you to easily create any graphic project without the use of mechanical die-cutting systems. Decoration, microperforation, die-cutting and micro die-cutting are some of the processes that can be made by exploiting PaperOne Line.
Technical Specifications
| Parameter | Paperone – 3500 | Paperone – 5000 | Paperone – 7000 |
|---|---|---|---|
| Sheet size input (mm) | min. 105×200 – max. 375×1050 | min. 420×297 – max. 750×535 | min. 500×350 – max. 1120×760 |
| Sheet thickness (μm) | min. 80 – max. 400 | min. 150 – max. 1600 | min. 200 – max. 1800 |
| Cut technology | CO2 sealed off laser sources | CO2 sealed off laser sources | CO2 sealed off laser sources – Radio-frequency pumped |
| Laser power (W) | 150 – 300 – 500 | 300 – 500 – 800 | 300 – 500 – 800 |
| Laser sources | Single | Single or double | Single, double, triple |
| Productivity (sheet/h) | max. 2500 | max. 2500 | max. 2500 |
| Transport speed (mt/min) | max. 40 | max. 40 | max. 40 |
| Laser working area (mm) | 350×1050 | Double 750 x 535 | |
| Registration method | Mechanical/vision camera | Mechanical/vision camera | Mechanical/vision camera |
| Pile height (mm) | max. 180 | max. 800 | max. 800 |
| Input system | Manual | Automatic feeder or manual | Automatic feeder or manual |
| Creasing tool | Male/female vertical creasing module | ||
| Norm compliance | 2014/35/EU Low Voltage Directive | 2014/35/EU Low Voltage Directive | 2014/35/EU Low Voltage Directive |
| 2006/42/CE Machinery Directive | 2006/42/CE Machinery Directive | 2006/42/CE Machinery Directive | |
| 2014/30/EU Electromagnetic Compatibility Directive | 2014/30/EU Electromagnetic Compatibility Directive | 2014/30/EU Electromagnetic Compatibility Directive | |
| IEC EN 60825-1 Laser Safety | IEC EN 60825-1 Laser Safety | IEC EN 60825-1 Laser Safety |
Origami
| Printing station | |
|---|---|
| Power supply | 230V, 50/60 HZ, single phase |
| Average consumption | 500 W |
| Size (mm) | L: 2166, W: 1191, H: 1497 |
| Weight (Kg) | 560 |
| 3D Technology | Multilayer deposit of molten thermoplastic polymer |
| X,Y,Z,E axis motorization | 4 interpolated axis (2 brushless +2 stepper motors) |
| Axis movement | Rotative digital technology |
| Encoder resolution (mm) | X: 7,63 x 10-6, Y: 7,63 x 10-6, Z: 1,95 x 10-5 |
| Accuracy and repeatability (mm) | X: 0,05, Y: 0,05, Z: 0,02 |
| Plates | |
| Plate size | B1+: 760 x 1120 mm – B2: 500 x 707 mm |
| Creasing shape | Proprietary algorithm |
| Plate support | Proprietary multilayer flexible magnetic plate support |
| Creasing | Polymer male/female matrix |
| Deposit technology | Proprietary algorithm |
| Dimension of the male/female creasing profiles | Proprietary algorithm |
| Software and hardware control | |
| Control Unit | PC |
| Operating system | Windows 10 |
| Control application | Icaro CUT, SEI proprietary software |
| Motion | 3 interpolated axis motion controlled by SEI proprietary electronic board (EtherCAT fieldbus) |
| Diagnostics | Proprietary diagnostics and remote connection |
Available Models

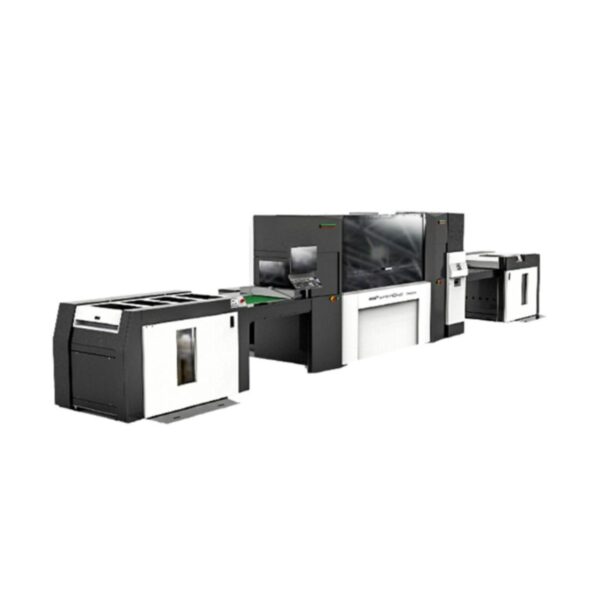

The most flexible automatic digital finishing system for laser die–cutting and creasing for Graphic Arts.
Key Features
- Processes: die cutting, micro perforation, decoration by laser and creasing of both the front and back of sheets
- Processable materials: PAPER, PET, PP, BOPP
- Sectors: graphic arts
- Laser system specifically designed for converting and decorating sheet materials
- Can be integrated with the most sophisticated digital Workflow software to read barcodes, QR codes, etc.
- Use of mechanical clamp/square register as well as optical register via digital camera
- 3 laser configurations available to satisfy even the most demanding requests
- Certified thicknesses: 0.09 – 0.6 mm
- Max dimensions: B3 – 375×1050 mm
- Modules available: automatic feeder, male/female vertical creasing module, alignment table, laser die-cutting section, single laser module, waste extraction, stacker conveyor belt module, fume extraction/abatement
- ICARO proprietary software
- Industry 4.0 Ready: full digital workflow integration

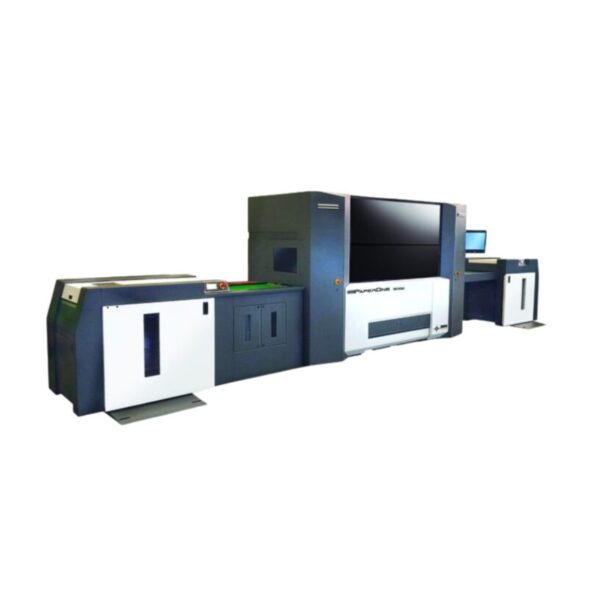

The first modular laser system for die cutting and creasing of Packaging and Graphics Arts
Key Features
- Processes: die cutting, creasing.
- Processable materials: PAPER, PET, PP, BOPP.
- Sectors: Packaging, Graphic Arts.
- Laser system specifically designed for converting and digital finishing sheet materials.
- Configurations according to specific needs at the time of purchase or optional upgrades to be installed “in the field”.
- Die cutting and creasing of both the front and back of sheets.
- Can be integrated with the most sophisticated digital Workflow software to read barcodes, Qr Codes, etc.
- It is fully “auto-setting” and remotely controlled.
- Has a precise mechanical registration system in addition to a digital camera based registration system.
- 6 laser configurations available to satisfy even the most demanding requests.
- Certified thicknesses: 0,15 – 1,6 mm.
- Max dimensions: B2 – 750×535 mm.
- ICARO proprietary software.
- Industry 4.0 Ready: full digital workflow integration.
The first modular laser system for die cutting and creasing of Packaging and Folding Carton
Key Features
- Processes: die cutting, creasing.
- Processable materials: paper, PET, PP, BOPP.
- Sectors: Packaging, Folding Carton.
- The most technologically advanced laser system for digital converting and finishing of B1 sheet materials.
- Configurations according to specific needs at the time of purchase or optional upgrades to be installed “in the field”.
- Die-cuts and creases both sides of the sheet (front/back).
- Can be integrated with the most sophisticated digital workflow software to read barcodes, Qr Codes, etc.
- It has full auto setup and can be controlled remotely.
- Use of precise mechanical registration system in addition to a digital camera based registration system.
- 9 laser configurations. It is designed to meet even the most demanding production requirements.
- Substrate range: 0,2 – 1,8 mm.
- Max sheet size: B1+, 1120×760 mm.
- ICARO proprietary software.
- Industry 4.0 Ready: full digital workflow integration.
The innovative 3D digital printing station to create creasing and embossing clichés without any outsourcing
Key Features
- Innovative, proprietary creasing/embossing system exploiting a male/female concept. A stand-alone 3D digital printing station that allows to quickly and simply create creasing and embossing plates without any outsourcing. The creasing quality is equal to that of traditional professional creasing.
- It is a unique and proprietary solution for the complete digitalization of the production process.
- A digital file is directly imported by SEI proprietary software thanks to the new 3D printing control algorithm. The creasing matrix, which is 100% reusable and recyclable, is ready to be fitted into the PaperOne Creasing module.
- Offers the possibility to create state-of-the-art three-dimensional clichés for linear and curved creasing and embossing optimizing the costs.
- Three-dimensional finishing thanks to digital technology on paper and folding carton.
- Substrate range: 0,2 – 1,8 mm.
- Max sheet size: B1+, 1120×760 mm.
- ICARO proprietary software.
- Industry 4.0 Ready: full digital workflow integration.
PAPERONE – 3500
Key Industries
- Biopharmaceutical and Biotechnology
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Medical
- Mining & Minerals
- Pharmaceutical
- Polymers, Plastics and Rubbers
Brand
Since 1982 SEI Laser (SEI S.p.A.) has been one of the most dynamic and innovative companies in the world of laser technology. Due to the complete range of laser systems developed by its R&D department, it is able to satisfy the application needs of customers in both vertical and horizontal markets, including: lighting, visual communication, graphic arts, paper converting, labelling, flexible packaging, folding carton, textile and fashion, denim processing, interior design, furnishing, automotive, engineering and electronics. All SEI Laser systems use ICARO proprietary software which operates on Windows™ platform, making them easy to interface with the most evolved CAD-CAM versions on the market. Experience, know-how and business spirit serving customers to create value.
