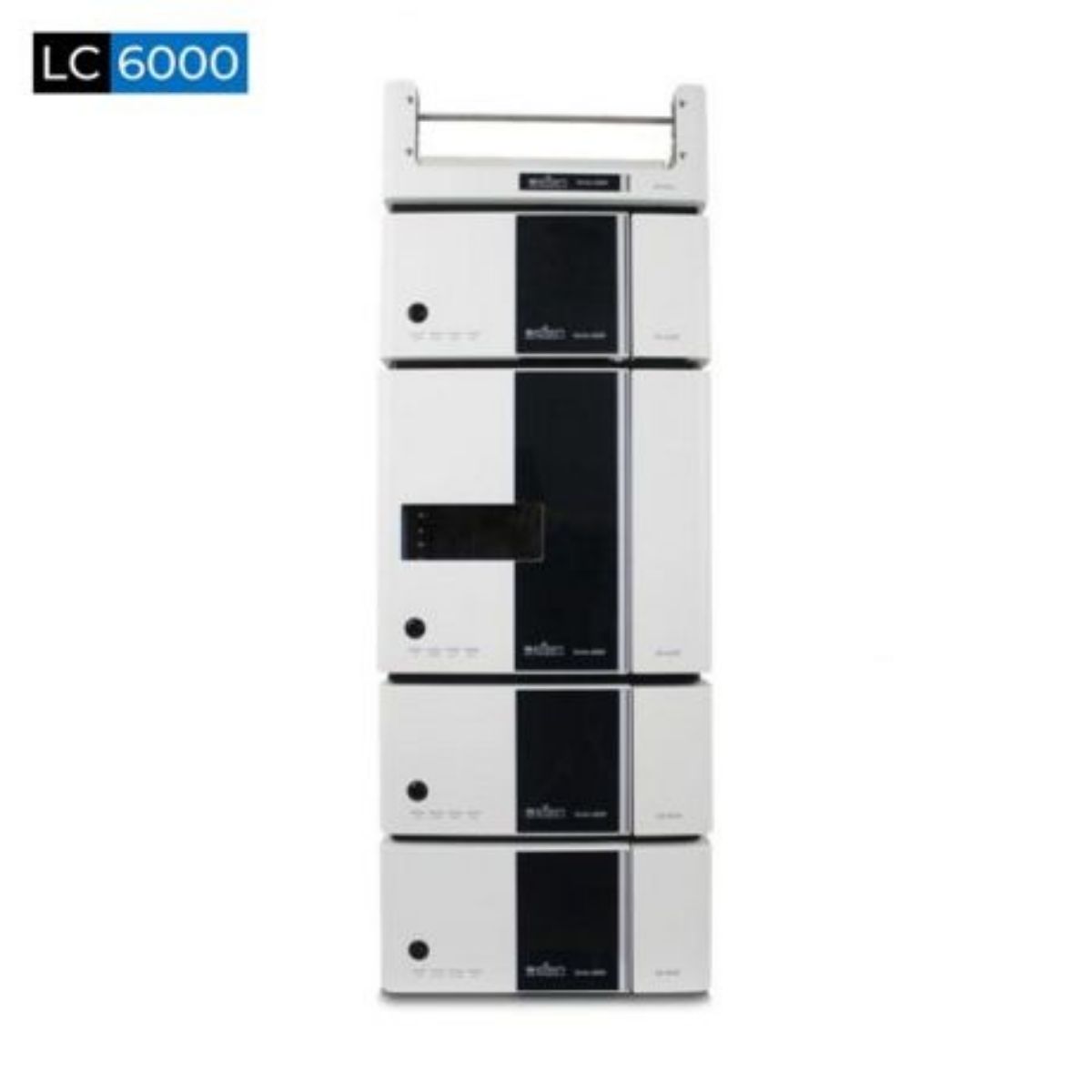

Scion – High Performance Liquid Chromatograph – LC 6000
The Scion 6000 Series HPLC aims for confidence in results through outstanding life-time performance. A robust design maximises uptime and productivity levels whilst minimises cost of operation. The SCION 6000 Series offers an array of automation options for workflow optimisation, making our lab experience the best and easiest possible.
Its application span across several industries, firstly the Oil & Gas industry where it is designed to operate 24/7 and comply with ASTM, EN, ISO, IP and GPA standards and methodologies. Secondly, for the Chemical industry, for process control as well as product control; for high level composition as well as trace impurities. Thirdly, for the Pharmaceutical industry in identification and quantification in pharmaceutical drug substances, excipients and products. Fourthly, for the Environmental industry, for sub ppb level determinations. Finally, the Food & Beverage industry, for specific detection in bulk as well as trace level determinations.
LC 6000 overview
Technical Specifications
| Module 1 | Power supply | Power consumption | Pressure | Settable pressure limiter range | Settable flow range |
|---|---|---|---|---|---|
| Scion 6100 Pump | 24VDC, 4.0A (max) | 96W | 60 MPa (0.001 – 2.500mL/min) 30MPa (2.500 – 5.000mL/min) | 0.0 – 60.0 MPa | 0.001 – 5.000mL/min |
| Module 2 | Power supply | Temperature setting range | Operating temperature range | ||
| Scion 6310/6320 Column Oven | AC100 to 240V (50/60 Hz) | 1̊C – 85̊C | 4̊C – 35̊C | ||
| Module 3 | Power supply | Wavelength range | Wavelength accuracy | Flow cell capacity | Flow cell pressure resistance |
| Scion 6410 UV Detector | DC 24V, 2.5A (max)/60W | 190nm – 600nm | ±2nm | 14µL | 14.7MPa (without inlet/outlet tube) |
| Module 4 | Power supply | ||||
| Scion 6510 Organizer (Solvent Cabinet) | AC 100V – 240V (50/60Hz), 520VA |
Key Features
LC 6000
- Superior gradient performance and excellent flow rate precision
- Excellent injection volume precision and ultra-low carry-over
- Precise results, delivering sharp peaks with excellent peak symmetry
- Excellent Detector Performance
Key Industries
- Chemical
- Environmental
- Food & Beverage
- Oil & Gas
- Pharmaceutical
