VariPol Factsheet
-
Polartronic®V Factsheet
-
Saccharomat®V Factsheet
-
UniPol V Factsheet
Precision, coupled with modern design, robust materials, and an unrivaled longevity is what our laboratory polarimeters stand for. Our technology is intelligent and connectable. You can access, store, and retrieve lab data from anywhere. SCHMIDT + HAENSCH, founded in 1864, offers a variety of polarimeter models based on decades of experience. The modular concept allows each customer to compile a custom-configured polarimeter including accessories.
Benchtop polarimeters developed and manufactured by SCHMIDT + HAENSCH are integrated in laboratories worldwide to reliably measure the ratio, the purity, and the concentration of enantiomeric mixtures.
Available Models
![](https://technology-products.dksh.com/wp-content/uploads/2024/02/Image_TEC_MAC_SnH_Polarimeter_1000x665_JPG_VariPol.jpg)
Technical Specifications
VariPol C | VariPol B | |
---|---|---|
Measurement scales | ° Optical rotation, ° Specific rotation, °Z International Sugar Scale, % Concentration (g/mL, g/100mL, g/L), further scales freely definable | ° Optical rotation, ° Specific rotation, °Z International Sugar Scale, % Concentration (g/mL, g/100mL, g/L), further scales freely definable |
Measuring range | ± 89.9° | ± 89.9° |
Precision | ± 0.01° * | ± 0.005° * |
Repeatability | ± 0.01° | ± 0.005° |
Resolution | 0.005° | 0.001° |
Sensitivity | Up to OD 3 | Up to OD 3 |
Wavelength | 1 or 2 wavelengths fixed, standard 589 nm, also available 365, 405, 436, 546 | 1 or 2 wavelengths fixed, standard 589 nm, also available 365, 405, 436, 546 |
Measuring time | 6 to 8 sec. over the entire measuring range | 6 to 8 sec. over the entire measuring range |
Measuring tubes | Up to 100 mm length; standard tubes, tubes with funnel or flow through; wetted parts: glass, stainless steel, Hastelloy | Up to 100 mm length; standard tubes, tubes with funnel or flow through; wetted parts: glass, stainless steel, Hastelloy |
Temperature measurement | Pt1000 sensor (device) / NTC sensor (Quartz control plates and tubes) | Pt1000 sensor (device) / NTC sensor (Quartz control plates and tubes) |
Sample temperature range | 10 °C to 40 °C | 10 °C to 40 °C |
Temperature precision / resolution | ± 0.1 °C* / 0.01 °C | ± 0.1 °C* / 0.01 °C |
Peltier temp. regulation of the sample room | 18 °C to 25 °C | 10 °C to 40 °C |
Temperature stabilization time | 25 °C to 20 °C, ± 0.1 °C, in 1 minute (valid for ambient temp. = 20 °C, with tube) | 25 °C to 20 °C, ± 0.1 °C, in 1 minute (valid for ambient temp. = 20 °C, with tube) |
Light source | LED, interference filter | Light source |
Display | 7” Touchscreen**, 800 x 480 Pixel | 7” Touchscreen**, 800 x 480 Pixel |
Operation | Touchscreen**, Keyboard***, Mouse***, Barcode Reader***, Remote via PC/Tablet/Smartphone*** | Touchscreen**, Keyboard***, Mouse***, Barcode Reader***, Remote via PC/Tablet/Smartphone*** |
Interfaces / Communication | Ethernet 10/100/1000, RS232, USB, WLAN** | Ethernet 10/100/1000, RS232, USB, WLAN** |
Power | VAC 90-265; 50/60 Hz; 150 W max | VAC 90-265; 50/60 Hz; 150 W max |
Conformity | International Pharmacopoeia, OIML, 21 CFR part 11, ICUMSA, Australian Standard K157 | International Pharmacopoeia, OIML, 21 CFR part 11, ICUMSA, Australian Standard K157 |
Dimensions | With display: 430 x 300 x 270 mm (w x d x h); without display: 430 x 300 x 160 mm (w x d x h) | With display: 430 x 300 x 270 mm (w x d x h); without display: 430 x 300 x 160 mm (w x d x h) |
Highlights | Basic Polarimeter especially designed for pharmaceutical applications; Modularity; Fast measuring; Peltier system for automatic temperature control; easy to calibrate; constant precision over the whole measuringrange, 21 CFR part 11 ready; energy saving durable LEDs; ELN; LIMS ready | Basic Polarimeter especially designed for pharmaceutical applications; Modularity; Fast measuring; Peltier system for automatic temperature control; easy to calibrate; constant precision over the whole measuringrange, 21 CFR part 11 ready; energy saving durable LEDs; ELN; LIMS ready |
Modular Polarimeter for Pharma and more
The SCHMIDT + HAENSCH VariPol is the newest and fastest generation of precision polarimetry. It is especially designed for pharmaceutic applications, but it can be adapted to further uses. Its unrivaled precision in measurement is paired with modularity, flexibility, and rapidity. State-of-the-art connectivity allows for seamless integration into your extended network of devices and permits monitoring your measuring results using our Aquisys Software on your phone or tablet.
Key Features
- Basic Polarimeter especially designed for pharmaceutical applications – 21 CFR Part 11 ready
- Modular configuration
- Multi-user concept and remote control via internet browser
- Rapid measuring
- Peltier system for automatic temperature control
- Easy to calibrate
- Constant precision over the whole measuring range, space saving
- Energy saving durable LEDs
- ELN; LIMS ready
![](https://technology-products.dksh.com/wp-content/uploads/2024/02/Image_TEC_MAC_SnH_Polarimeter_1000x665_JPG_Polartronic-1.jpg)
Technical Specifications
Measurement scales | °Optical rotation, °Specific rotation, °Z International Sugar Scale, % Concentration (g/mL, g/100mL, g/L) up to 1000 scales freely definable |
Measuring range | ± 360° / ± 259°Z |
---|---|
Resolution | 0.001° / 0.01°Z |
Precision | ± 0.005° / ± 0.015 °Z * |
Reproducibility | ± 0.001° / ± 0.01 °Z |
Sensitivity | Up to OD 5 |
Wavelength | 1 or 2 wavelengths fixed: 405, 435, 546, 578, 589, 633, 882 nm (others upon request) |
Response time | ≤ 4 sec. over the entire measuring range |
Measuring tubes | Different models, 10 to 200 mm length, Material: glass, stainless steel, acid-proof stainless steel, stainless-steel tubes with integrated temperature sensor*** |
Temperature measurement | NTC sensor for measurement of sample temperature |
Range | 0 °C – 99 °C |
Resolution | 0.01 °C |
Precision | ± 0.1 °C |
Light source | LED, interference filter |
Display | 7″ touchscreen, 800 x 480 pixel, 16 bit colors |
Operation | Touchscreen, keyboard**, mouse**, barcode-reader**, remote via PC** |
Interface / Communication | RS232 (1x), USB A (4x), USB B (1x), Ethernet (1x), LAN |
Conformity | International Pharmacopoeia, OIML, ASTM, ICUMSA, Australian Standard K157 |

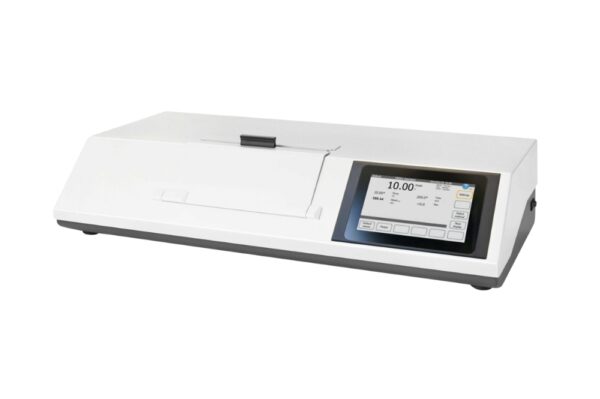

High-Performance Circle Polarimeter
The SCHMIDT + HAENSCH Polartronic V is the fully automatic, allrounder instrument amongst the polarimeters. With continuous, speedy measurement, it combines high resolution and highly accurate and reproducible measuring results over the whole measuring range.
Key Features
- Continuous and speedy measurement
- Intuitive operation, industrial standard interfaces, internal data base function, internal 21 CFR Part 11 software
- Stainless steel housing for rugged conditions
- Wavelength (882 nm) for dark sugar solutions
- User-friendly operation system
- Pre-installed user methods
- Flexibility through modular connection with instruments such as SCHMIDT + HAENSCH ATR P
![](https://technology-products.dksh.com/wp-content/uploads/2024/02/Image_TEC_MAC_SnH_Polarimeter_1000x665_JPG_Polartronic-1.jpg)
Technical Specifications
Measurement scales | °Z International Sugar Scale |
Measuring ranges | – 35°Z to + 105°Z |
---|---|
Resolution | 0.01 °Z |
Precision | ± 0.01 °Z |
Reproducibility | ± 0.01 °Z |
Sensitivity | Up to OD 5 |
Wavelength | 1 or 2 wavelengths fixed: 587, 882 nm |
Response time | ≤ 4 sec. over the entire measuring range |
Measuring tubes | Different Models, 50, 100 or 200 mm length, Material: glass, stainless steel, acid-proof stainless steel, stainless steel tubes with integrated temperature sensor*** |
Temperature measurement | NTC sensor for measurement of sample temperature |
Range | 0 °C – 99 °C |
Resolution | 0.01 °C |
Precision | ± 0.1 °C |
Light source | LED, interference filter |
Display | 7″ TFT Touchscreen, 800 x 480 Pixel, 16 Bit colors |
Operation | Touchscreen, keyboard**, mouse**, barcode reader**, remote via PC** |
Interface / Communication | RS232 (1x), USB A (4x), USB B (1x), Ethernet (1x), W-LAN/LAN** |
Conformity | International Pharmacopoea, OIML, ASTM, ICUMSA, Australian Standard K157 |
Sugar Polarimeter – Saccharimeter
The fully automatic digital polarimeter Unipol V is especially designed for chemical applications. It can also be used for purity analysis of food and beverage as well as cosmetics. The resolution of UniPol V conforms to the European and American Pharmacopeia. GLP/GMP conform data can be directly printed or transferred to your PC. In conjunction with the SCHMIDT + HAENSCH Software AQUISYS 3, all requirements of 21 CFR Part 11 conformity are fulfilled.
Key Features
- High performance patented sugar polarimeter
- Intuitive user interface
- No re-calibration needed
- High stability of measuring values
- Measurement of dark samples after filtration with SCHMIDT + HAENSCH Autofilt Z with NIR-WL
- High resolution 7″ TFT touchscreen
- Energy saving LED light source
- Combination with Polarimetry possible – SCHMIDT + HAENSCH Purity Analyzer
![](https://technology-products.dksh.com/wp-content/uploads/2024/02/Image_TEC_MAC_SnH_Polarimeter_1000x665_JPG_UniPolV-1.jpg)
Technical Specifications
Measurement scales | °Optical rotation, °Specific rotation, °Z International Sugar Scale, % Concentration (g/mL, g/100mL, g/), seven scales freely definable |
Measuring range | ± 360° / ± 259°Z |
---|---|
Resolution | 0.001° / 0.01°Z |
Precision | ± 0.005° / ± 0.02°Z * |
Reproducibility | ± 0.005° / ± 0.02°Z |
Sensitivity | Up to OD 2 |
Wavelength | 589 nm, 882 nm (other on request) |
Response time | 6 sec. over the entire measuring range |
Measuring tubes | Different models, 10 to 200 mm length; Material: glass, stainless steel, acid-proof stainless steel; stainless steel tubes |
Temperature measurement | NTC Sensor |
Temperature range | 10 to 40 °C |
Temperature regulation | Temperature regulation only with external water bath (specifications vary by model) |
Light source | LED, interference filter |
Display | 7″ Touchscreen, 800 x 480 Pixel, 16 Bit color |
Operation | Touchscreen, keyboard**, mouse**, barcode-reader** |
Interfaces / Communication | Ethernet 10/100/1000, RS232, USB, WLAN**, Modbus**, Canbus**, Profibus** |
Conformity | International Pharmacopoeia, OIML, ASTM, ICUMSA, Australian Standard K157 |

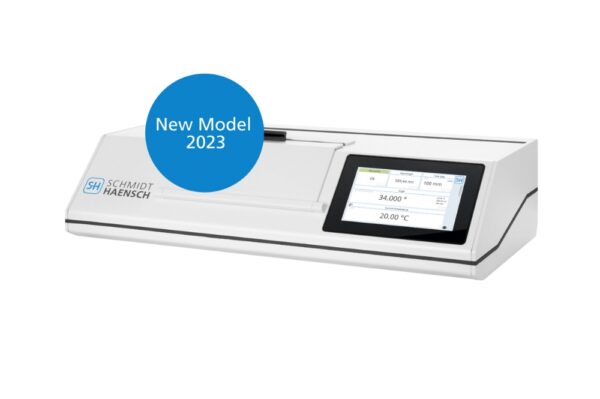

UniPol V – Digital Polarimeter
The fully automatic digital polarimeter Unipol V is especially designed for chemical applications. It can also be used for purity analysis of food and beverage as well as cosmetics. The resolution of UniPol V conforms to the European and American Pharmacopeia. GLP/GMP conform data can be directly printed or transferred to your PC. In conjunction with the SCHMIDT + HAENSCH Software AQUISYS 3, all requirements of 21 CFR Part 11 conformity are fulfilled.
Key Features
- Basic circle polarimeter
- Quasi-continuous measurement
- Reliable high precision
- 21 CFR Part 11 ready
- Compliance with international standards
