SARTORIUS – Quickseal® Aseptic Disconnections
Quickseal® — Reliable Aseptic Disconnection
Quickseal® aseptic disconnectors simplify critical fluid management by making aseptic disconnection fast and secure. Quickseal® collars are available for an array of tubing materials covering the range of tube internal diameters from 1/8″ (3.2 mm) to 3/4″ (19.0 mm). Extensively tested, Quickseal® is ideally suited for most applications in biopharmaceutical, vaccine and cell and gene therapy production.
Key Features
1. Fast Disconnection Time Seal and disconnect in less than 5 seconds on a wide range of tube sizes and materials

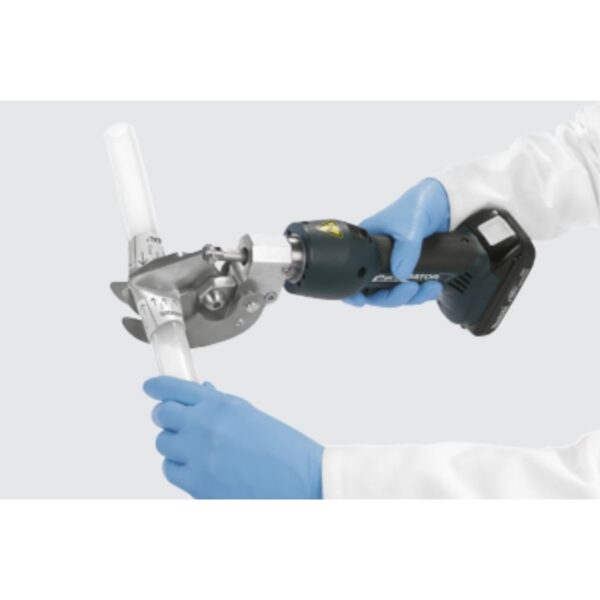

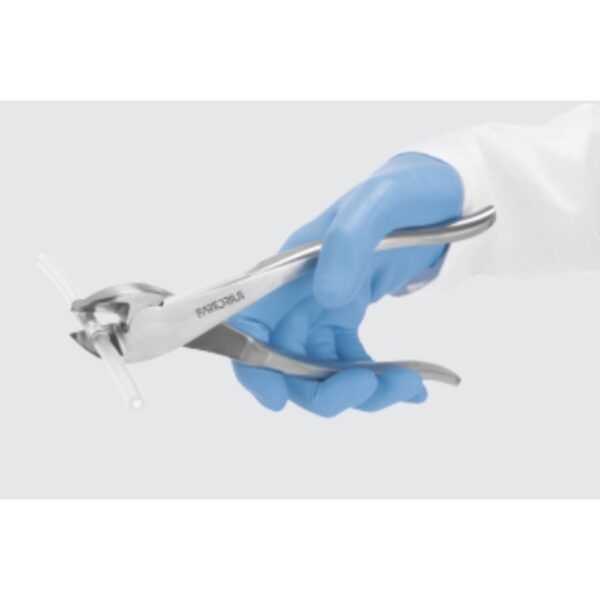

2. Intuitive Operation Disconnect in one step — just cut the collar. Simple operation reduces risk of error.
3. Secure and Trusted Seal Testing validates that the aseptic seal is stronger than the tube, ensuring reliability.
Technical Specifications
| Tubing Dimensions OD inch OD mm | â…›” | ¼” | ⅜” | 7/16″ | ½” | ⅝” | ¾” | 1″ | 1â…›” 3.2 | 6.4 | 9.6 | 11.1 | 12.7 | 15.9 | 19.0 | 25.4 | 28.6 |
| Tubing Material | Silicone (Liveo PHARMA® 50 STHT-C®, Pumpsil®) | TPE (C-Flex®, Tuflux® TPE) Ask about other tube materials |
|---|---|
| Quickseal® Position | Variable |
| Tubing Length inch mm | 6″ | 12″ | 18″ | 24″ | 36″ ~150 | 305 | 460 | 610 | 915   Other tube lengths available on request |
| Sealing Time | < 4 seconds |
| Operating Steps | 1 |
| Seal Type | Mechanical |
| Fluid Contact Material | Tubing Material |
| Component Material | Aluminum (3003) |
| Validation Testing | Container Closure (Ambient) Container Closure (Freeze | Thaw) Burst Test Tensile Pull Test |
Available Models
Quickseal® aseptic disconnections are used after fluid transfer to disconnect single-use transfer lines and bag or bottle assemblies used in biopharmaceutical applications. Quickseal® aseptic disconnections provide aseptic disconnection in non-classified and classified environments. It can be applied to multiple types and sizes of tubing.
Quickseal® aseptic disconnections are used after fluid transfer to disconnect single-use transfer lines and bag or bottle assemblies used in biopharmaceutical applications. Quickseal® aseptic disconnections provide aseptic disconnection in non-classified and classified environments. It can be applied to multiple types and sizes of tubing.
