PCM – Progressing Cavity Pump
Founder of the PCM company in 1932, René Moineau is the inventor of the Progressing cavity pump, also known as Moineau pump. A Moineau™ progressing cavity pump consists of a helical rotor, which turns inside a helical stator.
Available in :
The stainless steel rotor is machined to a high degree of precision, and the stator is moulded in a resilient elastomer. This means that when the rotor is inserted into the stator, a double chain of honeycombed-shaped watertight cavities is created. When the rotor turns inside the stator, the honeycomb moves spirally along the axis of the pump, never changing shape or volume. This allows the product to be transferred from the pump intake to the pump discharge, without any degradation.
Available Models
PCM Oil & Gas surface transfer pumps combine the legendary performance and reliability of PCM progressing cavity pump technology.
Technical Specification
Available in cast iron, carbon steel, and stainless steel
Key Features
- Handle Gassy, viscous, sandy fluids
- High suction and self-priming capacity
- Constant non-pulsating flow
- Flow rate proportional to running speed
- Reversible
- Easy to maintain
- Long lasting, proven design

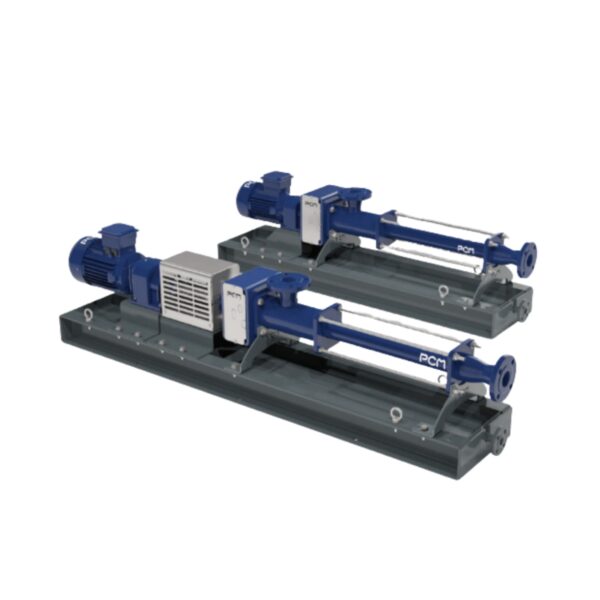

A pump that meets all the standard requirements of API 676 positive displacement pumps and are available in a range of materials including carbon steel, stainless steel, duplex steel and super duplex steel. The PCM’s API 676 pump features a highly modular design that makes installation, operation and service easier in many applications.
Technical Specifications
| Maximum flowrate | 235 m3/hr / 1035 US gpm |
|---|---|
| Maximum differential pressure | 48 bar / 700 psi |
| Maximum fluid temperature* | 130oC / 265 oF |
| Minimum fluid temperature* | -12oC / 10 oF |
| Maximum fluid viscosity* | 10.000 Cp |
| Ambient temperature range | -40°C to 55°C / -40°F to 130°F |
For applications exceeding above limits please contact us, a variety of pump designs are available at PCM.
Key Features
- Progressing cavity pump technology
- High quality, cost- effective construction
- Easy to use in a horizontal or vertical configuration
- Long-lasting, proven design
- Large spare parts inventory

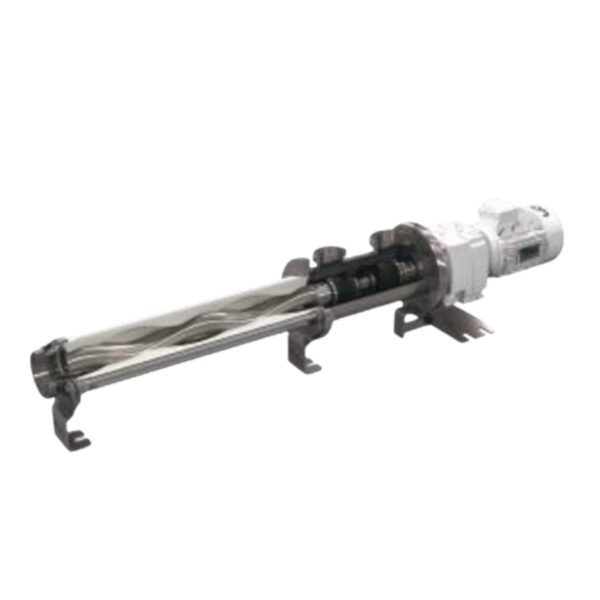

PCM HyCare™ is the world’s gentlest, most hygienic food sanitary pump. It’s been especially designed for food applications, featuring a patented body design developed using advanced computational fluid dynamics. This progressing cavity pump will treat your ingredients, food safety requirements and budget with the care and respect they deserve.
Technical Specification
| Pressure | 16 bars |
|---|---|
| Flowrate | 20 l/h to 50 m3/h |
| Particle size | Up to 32 mm |
Key Features
- Product respect: With our food grade pump, 67% of the product texture is protected, a huge amount in comparison to Lobe pumps and Bi wing pumps, which protect just 15%arti label fluorescent yang berbeda dapat dianalisis.
- Cleanable: With an internal body designed using Computational Fluid Dynamics, cleaning has been improved by 30%
- Simplified maintenance: As there’s no joint, no maintenance is required on the flexible shaft. No adjustment on the mechanical seal in a cartridge. Can be quickly and easily disassembled, thanks to the two-part body and shafting assembly system.
- Reliable in every situation: The Duraflex flexible shaft is made from hard-wearing titanium – more dependable than open joints. Our patented stator anti-rotation system ensures safe operation, in the events of high pressure or temperature.

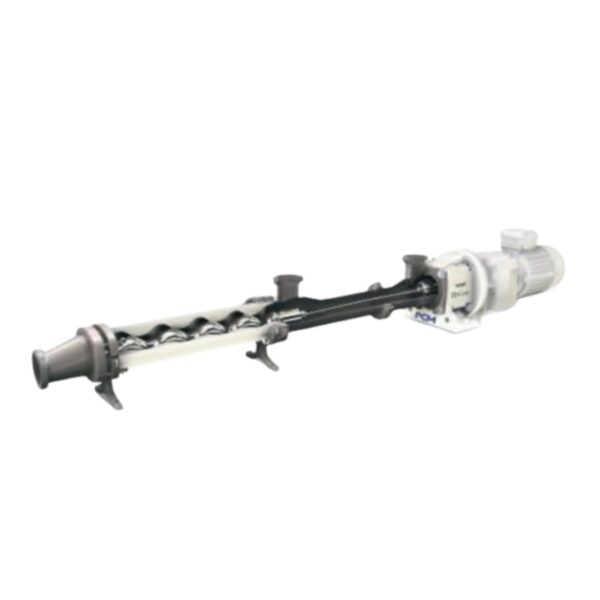

The PCM EcoMoineau™ C is the shortest stainless steel Progressing Cavity Pump in the market. This new Eco designed and compact pump is dedicated for food markets (FDA and European Food regulations compliant materials). Its revolutionary design combines the legendary performance and the reliability of PCM Progressing Cavity Pump technology with a highly modular, eco-friendly design.
Technical Specification
| Pressure | 16 bars |
|---|---|
| Flowrate | 20 l/h to 50 m3/h |
| Particle size | Up to 32 mm |
Key Features
- Space saving: 42% shorter – 57% lighter
The EcoMoineau™ C pump requires less space for installation which reduces costs and facilitates its integration. - Eco Design Pump: 10% less power consumption
- The EcoMoineau™ C pump is lighter (less raw materials) and uses 10% less power than most Progressing Cavity Pump’s on the market.
- Easy and quick dismantling: 23% maintenance time saving: The EcoMoineau™ C pump is made with fewer parts compared to competitors’ models. This new stainless-steel pump has a multiple of design features that make installation, operation and servicing easier than ever before.
- Versatile Construction: Integrated construction and cost effective solution

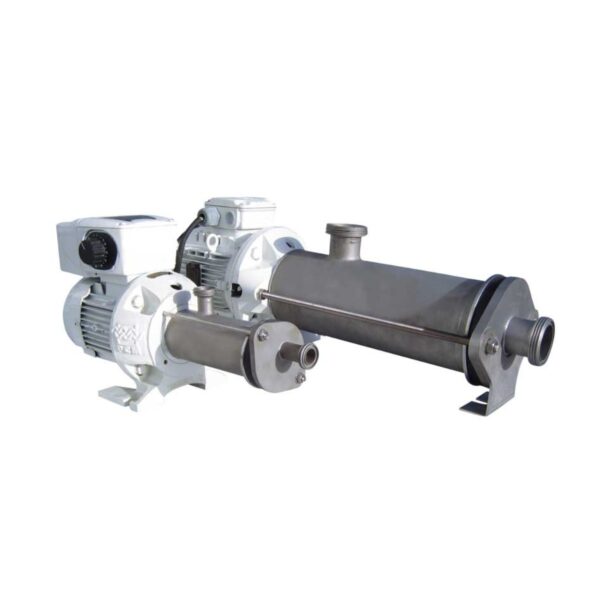

As one of most compact progressing cavity pumps available today, the PCM EcoMoineau™C floating stator pump can handle a wide range of fluids with varying viscosities and solids. It provides good suction lift and can tolerate run dry. It offers low Life Cycle Cost, thanks to simple design, cost-efficient maintenance and reduced weight. The pump can be rapidly dismantled for Cleaning Out of Place (COP) in food applications.
Technical Specification
| Maximum Flowrate | 6 m3/h |
|---|---|
| Pressure | 4 bars |
| Maximal Temperature (in continuous operation) | 80oC |
| Particle size | 6 mm |
| Accessories | Pressure sensor, dry running protection |
| Options | Trolley, bypass and/or safety valve, automatic level, flow rate and pressure controls |
Key Features
- Compact size
- Reduced weight
- Conception dedicated to food industry with COP (Cleaning out of place)
- Dosing pump without pulsations
- Simple and rugged construction in stainless steel
- Low life cycle cost

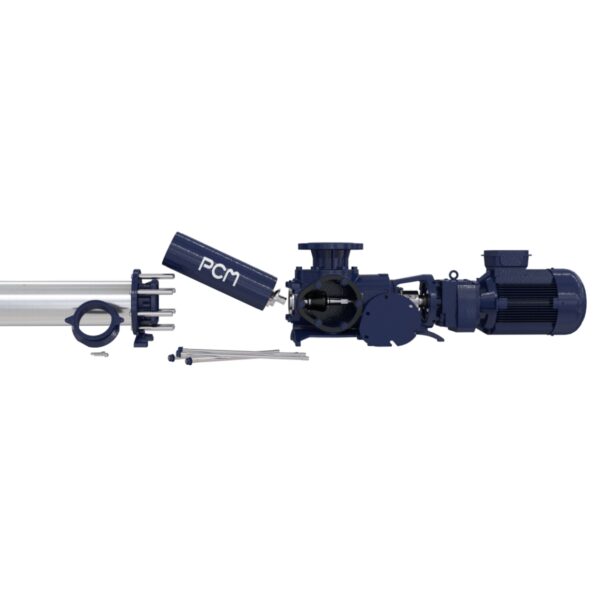

The PCM EcoMoineau™ MX pump comes with an integrated maintenance in place system as a standard feature. It is specifically designed to provide easy and rapid maintenance that can be carried out on-site without the need to remove the pump from its installation. This significantly reduces downtime and optimizes the productivity of industrial operations.
Technical Specification
| Maximum Flowrate | 0.3 m3/h to 180 m3/h /from 1.32 à 792.5 US GPM |
|---|---|
| Maximum pressure | 24 bar / 350 psi |
| Maximum temperature | 120oC / 250oF |
| Particle size | 40 mm / 1,57 inches |
Key Features
- Rotor and stator can be replaced in a matter of minutes without affecting the installation, thanks to the maintenance in place system
- The seal can be changed by simply disconnecting the drive.
- The shaft line (rotor, coupling rod, driving shaft) can be removed without disconnecting the pipes.
- The integrated version comes with a smaller diameter, self-positioning mechanical seal.
- More compact than comparable progressing cavity pumps, require less space for installation and servicing
- Easily integrated into different installations
