PCM – Peristaltic Pump Technology
Peristaltic pumps are a form of positive displacement pump, which can be used for pumping a wide variety of fluids. Our industrial pumps use the peristaltic principle, whereby a the deformation and compression of a soft elastomer hose allows fluid to be passed through the system.
Available in :
We have a wide range of industrial hose pumps, covering a variety of applications. To offer you flexibility, our selection includes high pressure and low pressure pumps. You can also choose between different flow rates, from 200l/h to 65m3/h.
Available Models

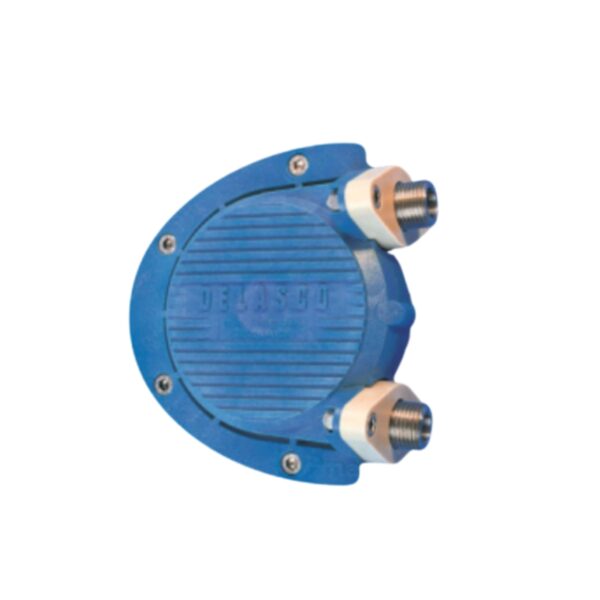

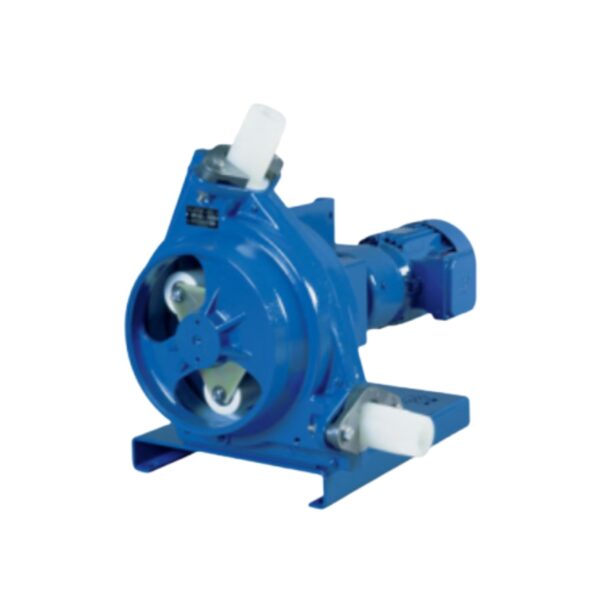

PCM Delasco™ peristaltic pumps are the ideal choice to reduce your maintenance costs. We offer hose pumps (DL, DSC, Z, PMA) which are suitable for corrosive, abrasive and fragile products.
Technical Specification
| Z Series | DL Series | DX Series | PMA Series | |
| Minimum flow rate | 40 l/h (0.2 USGPM) | 44 l/h (0.2 USGPM) | 3 m3/h (13 USGPM) | 14l/h (0.06 USGPM) |
| Maximum flow rate | 20m3/h (90 USGPM) | 20 m3/h (90 USGPM) | 55m3/h (242 USGPM) | 200l/h (0.9 USGPM) |
| Maximum peak pressure | 3 bar (45 PSI) | 15 bar (220 PSI) | 15 bar (220 PSI) | 1.5 bar (22 PSI) |
| Maximum temperature | 120°C (250 °F) | In continuous operation: 110 °C | 110°C (230 °F) | 120°C (250 °F) |
| Self-priming | 5 m (16 ft) water column suction lift | 9 m (29 ft) water column suction lift | 9 m (29 ft) water column suction lift | maximum 5 m (16 ft) water column suction lift |
| Maximum densities | up to 18000 kg/m3 (112 lb/ft3) | over 2000 kg/m3 (125 lb/ft3) | over 2000 kg/m3 (125 lb/ft3) | over 2000 kg/m3 (125 lb/ft3) |
| Maximum viscosity | 15 000 cP | 40 000 cP | 40 000 cP | 1800 cP |
New PCM Delasco™ DX Series for X-stream and Green Pumping
For more than 90 years, PCM has been delivering high quality and cost effective fluid handling solutions. With DKSH, PCM…
