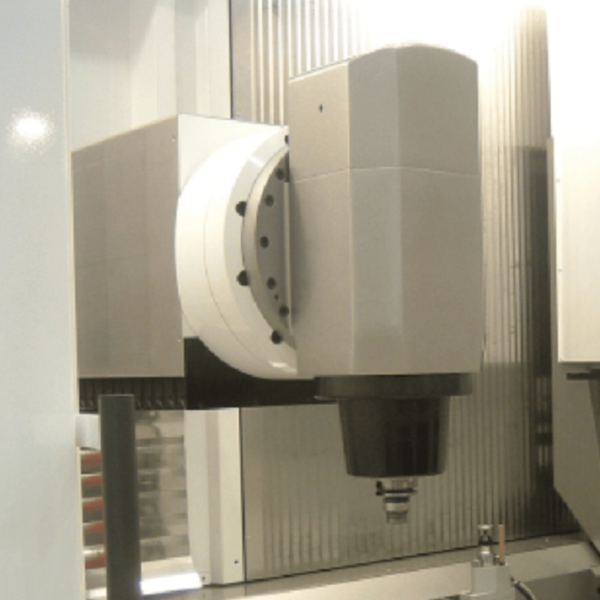

PARPAS – High-speed milling machines – TWIN Line
TWIN CONCEPT is a line of high speed milling machines characterized by fixed and mobile bench, which varies from the double working area (patented) for independent machinings with 3-4-5 axes to the machinings of pieces with 3-4 independent axes or with 5 axes at the same time time (patented) to complete the machinings of “twin” pieces with machinings to 3-4-5 axes. Having been projected through the calculation to ended elements, FEM, TWIN CONCEPT introduces all the good characteristics that countersign the OMV products.
Technical Specifications
| HSC-2 SPINDLES | TWIN-800 | TWIN-SPLIT | |
|---|---|---|---|
| Longitudinal Travel | 1100 | 800 – 800 mm | 1050 – 1050 mm |
| Cross Travel | 650 mm | 650 mm | 650 mm |
| Vertical Travel | 500 mm | 510 mm | 700 mm |
| Feeds | 0 – 28000 mm/1` | 0 – 60000 mm/1` | 0 – 60000 mm/1` |
| Brushless AC spindle motor | 29 • 30 • 41 kw | 29 • 41 kw | 29 • 41 kw |
Available Models
Technical Specifications
| TWIN-800 | |
| Longitudinal Travel | 800 – 800 mm |
| Cross Travel | 650 mm |
| Vertical Travel | 510 mm |
| Feeds | 0 – 60000 mm/1` |
| Brushless AC spindle motor | 29 • 41 kw |
The model TWIN-800 is a high speed milling machine characterized for its very compact line and cleaning up, and for the fixed bed and mobile column configuration with double working area (patented). Projected through the calculation to finished elements, FEM, introduces good characteristics of rigidity in the movements and damping of the vibrations. If to this the low attritions and the elevated accelerations of the axes are added, are obtained so all the characteristics that allow to get particularly bright dynamic performances in finish, but at the same time make it a very performing in roughing. The all to advantage of the economy of the whole cycle of machining.
Technical Specifications
| TWIN-SPLIT | |
| Longitudinal Travel | 1050 – 1050 mm |
| Cross Travel | 650 mm |
| Vertical Travel | 700 mm |
| Feeds | 0 – 60000 mm/1` |
| Brushless AC spindle motor | 29 • 41 kw |
The model TWIN-SPLIT is a high speed milling machine characterized for its very compact line and cleaning up, and for the fixed bed and mobile column configuration with double working area (patented). Projected through the calculation to finished elements, FEM, introduces good characteristics of rigidity in the movements and damping of the vibrations. If to this the low attritions and the elevated accelerations of the axes are added, are obtained so all the characteristics that allow to get particularly bright dynamic performances in finish, but at the same time make it a very performing in roughing. The all to advantage of the economy of the whole cycle of machining.
Technical Specifications
| HSC-2 SPINDLES | |
| Longitudinal Travel | 1100 |
| Cross Travel | 650 mm |
| Vertical Travel | 500 mm |
| Feeds | 0 – 28000 mm/1` |
| Brushless AC spindle motor | 29 • 30 • 41 kw |
The model HSC-2 SPINDLES is a high speed milling machine characterized for its very compact line and cleaning up, and for the fixed bed and mobile column configuration with double spindle. Projected through the calculation to finished elements, FEM, introduces good characteristics of rigidity in the movements and damping of the vibrations. If to this the low attritions and the elevated accelerations of the axes are added, are obtained so all the characteristics that allow to get particularly bright dynamic performances in finish, but at the same time make it a very performing in roughing. The all to advantage of the economy of the whole cycle of machining.
Key Features
Structures
Fixed Portal Milling Machine with a Moving Table. An advanced machine giving an innovative solution with a state-of-the-art performance.
All main structures are designed with the most powerful software systems for calculation and analysis.
To obtain the high dynamic control, the machine is built in steel alloy, this solution for its given mass, guarantees greater stiffness compared to conventional materials such as cast iron. This has contributed to the realization of a machine of high precision and rigidity together with outstanding dynamic performance.
All structures undergo a stress relieving heat treatment to eliminate tensions that are created during the transformation process. The linear guides with roller bearings and with a low center of gravity, are widely dimensioned and attached directly to the structures.
Contact Us
| Beijing 26th Floor, West Tower, Hanwei Plaza No.7 Guanghua Road, Chaoyang District, Beijing TEL: 010-6561 3988 FAX: 010-6561 0278 http://dksh-machinery.com | Shanghai Room Unit 605-607, Build 2, Xinglian Building, No.1535 Hongmei Road, Xuhui District, Shanghai TEL: 021-5383 8811 FAX: 021-3367 8466 http://dksh-machinery.com | Chengdu Room 802, 8/F, Tower 1, Central Plaza No.8 Shuncheng Street, Chengdu TEL: 028-8676 1111 FAX: 028-8676 1122 http://dksh-machinery.com |
| Guangzhou Room 1213-1215, 12/F Jie Tai Plaza, 218-222 Zhongshan Road ,Guangzhou TEL: 020-8132 0662 FAX: 020-8132 0663 http://dksh-machinery.com | Xi’an B-4-H, K.I.Tower, No.1 Xihuamen, Xi’an TEL: 029-8833 7412 FAX: 029-8833 7415 http://dksh-machinery.com | Hongkong 23/F, Tower A, Southmark, 11 Yip Hing Street, Wong Chuk Hang, Hong Kong TEL: 00852-2880 9808 FAX: 00852-2369 1042 http://dksh-machinery.com |
Key Industries
- Aerospace
- Automotive
- Die & Mould
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
Born in 1951 as PARPAS Spa, the GRUPPO PARPAS started as a manufacturer of pantograph machine tools, then of copying machines, and now of numeric control milling units. Over the years, accumulating experience in the sector, its ambitions grew and began to devote itself to the production of CNC milling machines. Currently PARPAS, world market leader in milling and copying of large molds, produces a line of medium-large milling machines with the best technology. Given the initial success, in 1969, ownership decided to set up OMV (Officine Meccaniche Venete) which, since 1972, offered in the market a line of small-medium size machine tools. Originally the proposed range is that of knee-type milling machines, subsequently, in 1974, it mainly directs itself to the production of machine tools featuring stationary bench and movable upright, the first with this particular feature to be built by an Italian company. Today OMV is committed to the realization of high-speed machines that boast, in addition to the working speed, the same precision and flexibility that has always characterized its production. The salient characteristic of PARPAS Group is to build “custom” machine tools, for which design and produce machines on precise specifications of the customer, features well known and recognized worldwide by customers including famous names.
