PARPAS – Machining centers – THS
THS-X-TILT,THS 120,THS 100
The THS line features the cross movement of the column carrying the milling head. The THS can be configured in various applications from 3 to 5 axis and pallet changers. Due to its particular structure, it can be applied both to high speed machining and to heavy duty machining.Technical Specifications
| THS-X-TILT | THS 120 | THS 100 | |
|---|---|---|---|
| Longitudinal Travel | 1600(2000) mm | 2000 – 3000 mm | 1500 • 2000 • 2500mm |
| Cross Travel | 1250(2000) mm | 1250 • 2000 mm | 1000 mm |
| Vertical Travel | 1250(2000) mm | 1250 • 2000 mm | 1200 mm |
| Feeds | 0 – 40000 mm/1′ | 0 – 40000 mm/1′ | 0 – 40000 mm/1` |
| Brushless AC spindle motor | 30 – 65 Kw • 5000 – 20000 rpm | 30 Kw • 20000 rpm | 29 – 64 Kw • 7000 – 20000 rpm |
Available Models
Technical Specifications

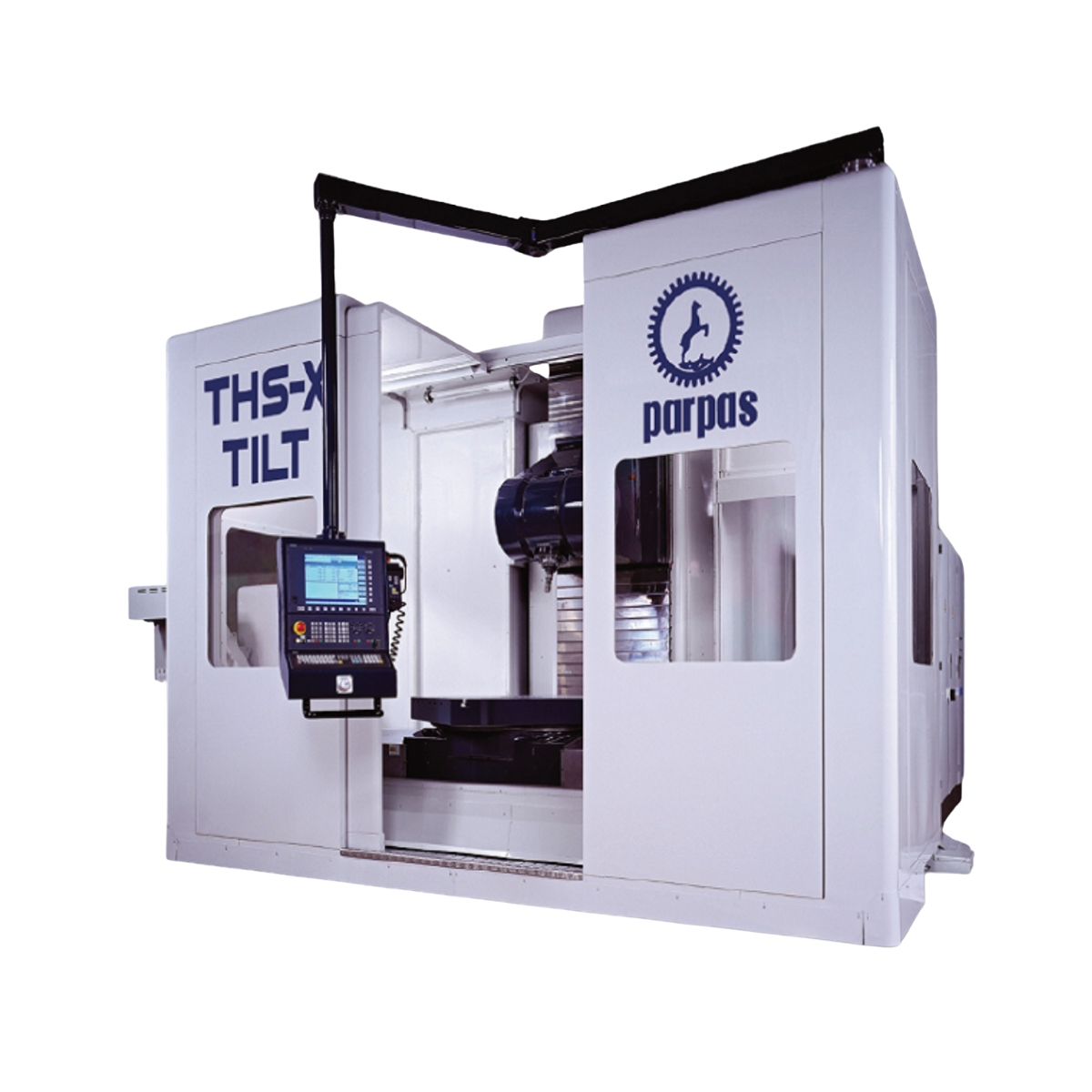

| THS-X-TILT | |
| Longitudinal Travel | 1600(2000) mm |
| Cross Travel | 1250(2000) mm |
| Vertical Travel | 1250(2000) mm |
| Feeds | 0 – 40000 mm/1′ |
| Brushless AC spindle motor | 30 – 65 Kw • 5000 – 20000 rpm |
Technical Specifications
| THS 120 | |
| Longitudinal Travel | 2000 – 3000 mm |
| Cross Travel | 1250 • 2000 mm |
| Vertical Travel | 1250 • 2000 mm |
| Feeds | 0 – 40000 mm/1′ |
| Brushless AC spindle motor | 30 Kw • 20000 rpm |
Technical Specifications

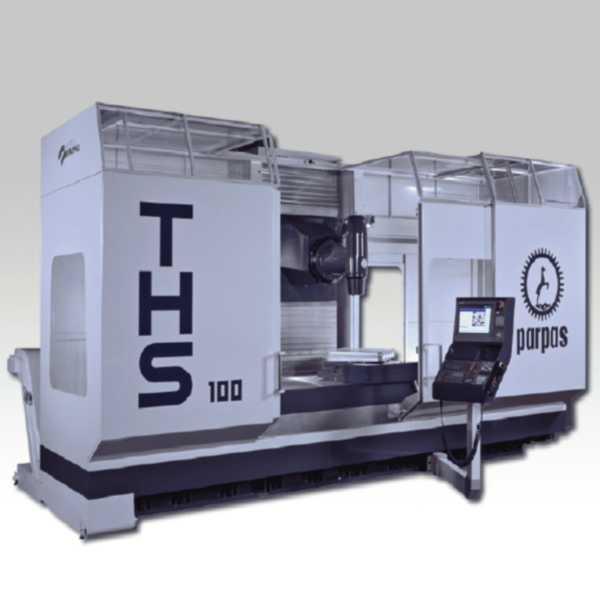

| THS 100 | |
| Longitudinal Travel | 1500 • 2000 • 2500mm |
| Cross Travel | 1000 mm |
| Vertical Travel | 1200 mm |
| Feeds | 0 – 40000 mm/1` |
| Brushless AC spindle motor | 29 – 64 Kw • 7000 – 20000 rpm |
